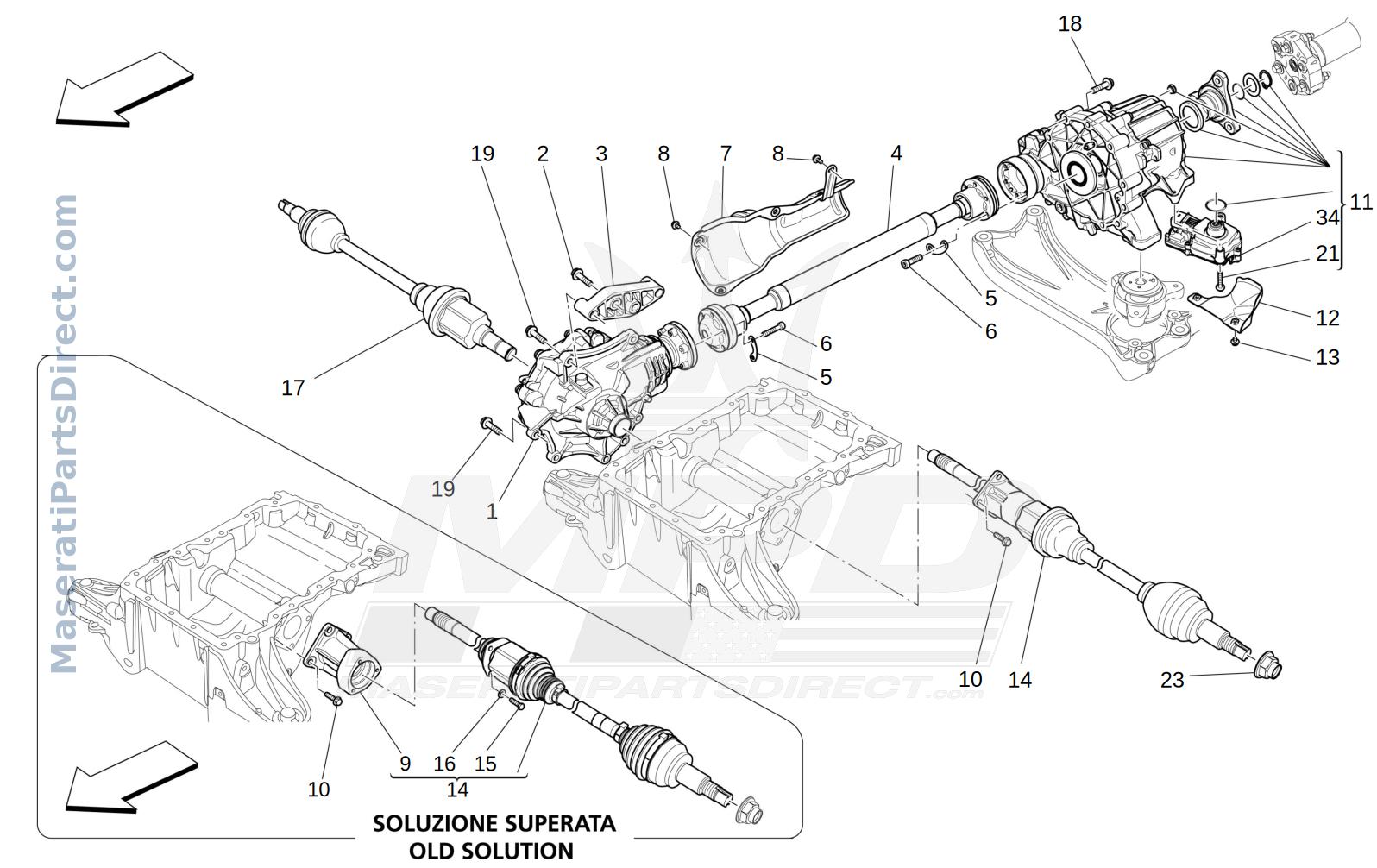

03.22 - 1 - FRONT WHEELS TRANSMISSION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670032672	FRONT DIFFERENTIAL	$2,006.48 Order
1	670007722 Replaced by: #670032672	FRONT DIFFERENTIAL	$0.00 Order
2	675000385	SCREWM10X40	$9.72 Order
3	670003776	BRACKET	$291.05 Order
4	670008548	FRONT DRIVE SHAFT	$747.49 Order
5	670003772	PLATE	$10.40 Order
6	675000256	SCREWM8X40	$9.17 Order
7	670003989	HEAT SHIELD	$158.03 Order
8	675000102	SCREWM6X14	$13.28 Order
9	670003873	LH SPACER	$425.44 Order
10	675000384	SCREWM10X25	$11.55 Order
11	670008138 Replaced by: #673009767	ALL WHEEL DRIVE TRANSFER CASE	$0.00 In Stock
11	670033011 Replaced by: #673009767	ALL WHEEL DRIVE TRANSFER CASE	$0.00 In Stock
11	673009767	ALL WHEEL DRIVE TRANSFER CASE	$4,819.03 $2,409.51 In Stock
12	670004015	HEAT SHIELD	$92.28 Order
13	675000102	SCREWM6X14	$13.28 Order
14	670007077 Replaced by: #670032034	LH AXLE SHAFT ASSEMBLY	$0.00 Order
14	670032034	LH AXLE SHAFT ASSEMBLY	$1,328.08 Order
15	14305924	SCREWM6X45	$11.85 Order
16	11197774	WASHERD.6.4-12X1.2	$9.20 Order
17	670003581 Replaced by: #670301920	RH AXLE SHAFT	$0.00 Order
17	670035142 Replaced by: #670301920	RH AXLE SHAFT	$0.00 Order
17	670301920	RH AXLE SHAFT	$1,763.91 Order
18	675000386	SCREWM10X60	$8.00 Order
19	675000385	SCREWM10X40	$9.72 Order
21	673009049	SCREW	$0.00 Order
23	675000138	NUT	$19.15 Order
34	670008140 Replaced by: #670033135	TRANSFER CASE CONTROL UNIT	$0.00 Order
34	670033135	TRANSFER CASE CONTROL UNIT	$0.00 Order
