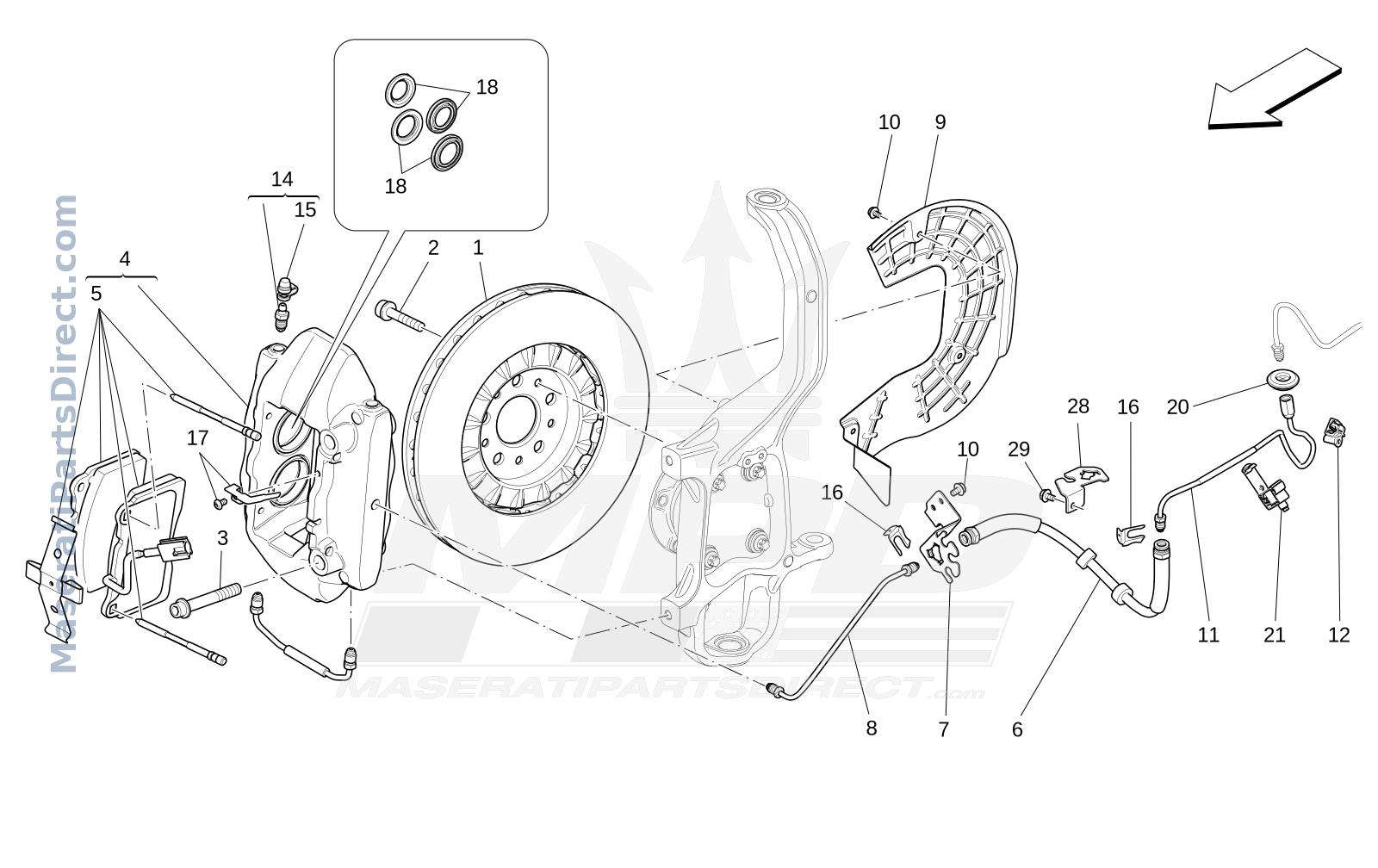

04.10 - 3 - BRAKING DEVICES ON FRONT WHEELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670032734	FRONT BRAKE DISC	$159.95 In Stock
1	670007683 Replaced by: #670032734	FRONT BRAKE DISC	$0.00 In Stock
1	673003970 Replaced by: #670032734	FRONT BRAKE DISCS KIT	$0.00 In Stock
2	675000081	SCREWM10	$11.95 Order
3	675000282	SCREWM14X90	$32.56 In Stock
4	670032713 Replaced by: #670034945	LH FRONT CALIPER ASSEMBLY	$0.00 Order
4	670034945	LH FRONT CALIPER ASSEMBLY	$1,099.44 Order
4	670032714	RH FRONT CALIPER ASSEMBLY	$977.84 Order
5	673012431	FRONT PADS KIT	$480.17 In Stock
5	980156041 Replaced by: #980156147	FRONT PADS KIT	$0.00 Order
5	673010326 Replaced by: #673012431	FRONT PADS KIT	$0.00 In Stock
6	670006618 Replaced by: #670155387	FLEXIBLE PIPE TO FRONT CALIPERS	$41.16 Order
7	670003306	LH FRONT BRACKET	$19.15 Order
7	670001817	RH FRONT BRACKET	$16.98 Order
8	670004200	LH FRONT CALIPER RIGID PIPE	$50.27 Order
8	670004199	RH FRONT CALIPER RIGID PIPE	$44.23 Order
9	675000066	LH FRONT BRAKE DISC GUARD	$31.70 Order
9	675000067	RH FRONT BRAKE DISC GUARD	$31.70 Order
10	675000126	SCREW	$7.65 Order
11	670007017	LH FRONT BRAKE PIPE	$58.98 Order
11	670007016	RH FRONT BRAKE PIPE	$59.15 Order
12	675000272	CLIP	$11.25 Order
14	673001646	BLEEDER SCREW AND PLUG	$62.25 Order
15	673001647	DUST SEAL	$36.88 Order
16	675000276	SPRING PLATE	$6.93 Order
17	673001649	BRACKET AND SCREW	$137.39 Order
18	673001645	42 MM DIAMETER BOOT	$96.51 Order
20	675000281	GASKET	$12.71 Order
21	675000286	CLIP	$10.00 Order
