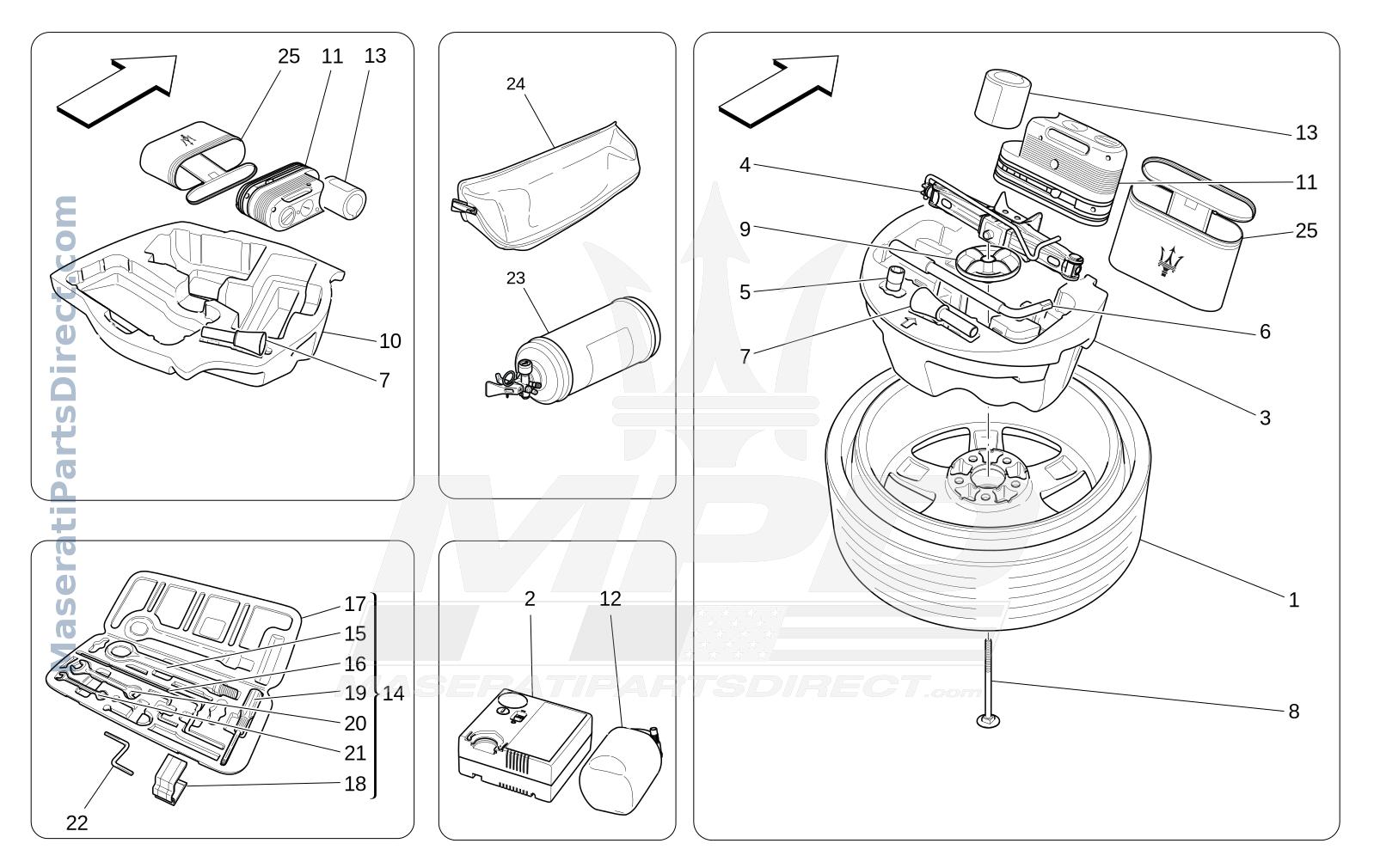

07.30 - 1 - STANDARD PROVIDED

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	SPARE WHEEL ASSEMBLY	$0.00 Order
1	custom	SPARE WHEEL ASSEMBLY	$0.00 Order
2	670032461 Replaced by: #673007158.0	COMPRESSOR TIRE INFLATION	$143.07 Order
2	673007158	COMPRESSOR TIRE INFLATION	$148.72 Order
3	670004535	TOOL KIT	$45.90 Order
4	670004526	CAR LIFTING JACK	$221.39 Order
5	670005176	EXTENSION	$21.00 Order
6	670005175	WHEEL STUD WRENCH	$37.83 Order
7	675000065	FUNNEL	$19.15 Order
8	670006751	SCREW	$12.86 Order
9	670004536	FASTENING RING NUT	$10.50 Order
11	673007343	COMPRESSOR TIRE INFLATION	$237.62 Order
12	673007061	SEALANT 400	$0.00 Order
12	673007062	SEALANT 400	$0.00 Order
12	673007063	SEALANT 400	$128.03 Order
12	673007064	SEALANT 400	$0.00 Order
12	673007065	SEALANT 400	$0.00 Order
12	673007066	SEALANT 400	$0.00 Order
12	673007067	SEALANT 400	$0.00 Order
12	673007068	SEALANT 400	$187.86 Order
13	673007053	SEALANT 500	$0.00 Order
13	673007054	SEALANT 500	$0.00 Order
13	673007055	SEALANT 500	$0.00 Order
13	673007056	SEALANT 500	$0.00 Order
13	673007057	SEALANT 500	$0.00 Order
13	673007058	SEALANT 500	$0.00 Order
13	673007059	SEALANT 500	$0.00 Order
13	673007060	SEALANT 500	$189.73 Order
14	670006985	TOOLS KIT	$152.28 Order
15	675000271 Replaced by: #675000775.0	EMERGENCY TOW HOOK	$0.00 Order
16	670004530	PARKING BRAKE ACTUATOR RELEASE TOOL	$113.53 Order
17	670004531	TOOLS CASE	$53.33 Order
18	670005174	CLIP	$18.87 Order
19	670004529	SCREWDRIVER	$84.86 Order
20	670004528	DOUBLE ENDED SPANNER 13/17	$79.43 Order
21	670004527	DOUBLE ENDED SPANNER 8/10	$73.01 Order
22	675000492	SUNROOF HEXAGON-HEAD WRENCH	$27.03 Order
25	673009141	500 COMPRESSOR BAG	$103.43 Order
