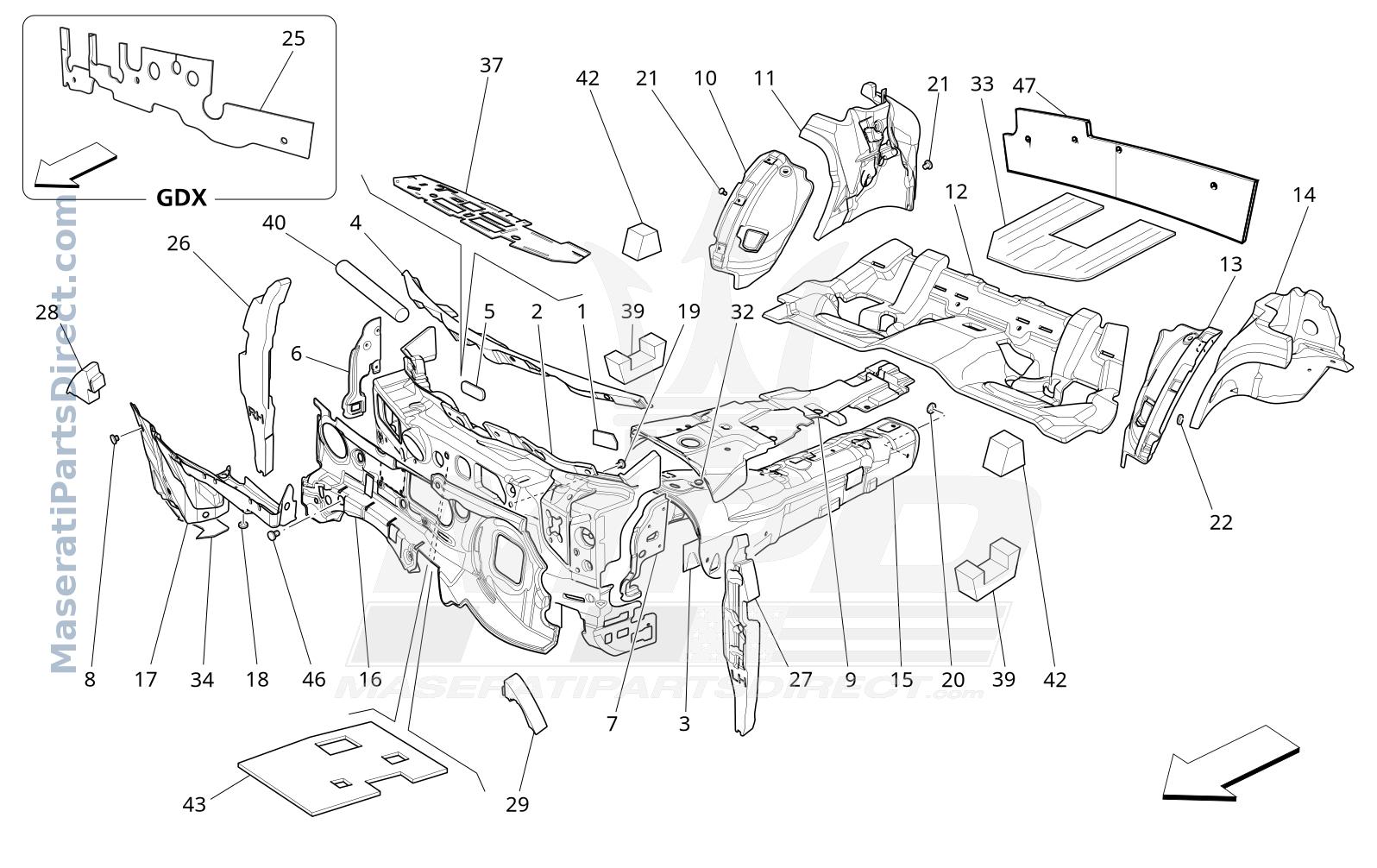

09.62 - 1 - SOUND-PROOFING PANELS INSIDE THE VEHICLE

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	675000151	PLUG	$11.52 Order
2	670037079 Replaced by: #670105244	DASHBOARD FRONT SOUNDPROOFING PANEL	$0.00 Order
2	670105244	DASHBOARD FRONT SOUNDPROOFING PANEL	$657.76 Order
3	670001856	SOUNDPROOFING ELEMENT	$14.81 Order
4	670002563	LOWER WINDSCREEN SOUNDPROOFING UNIT	$148.21 Order
5	675000417	PLUG	$27.70 Order
6	670005499	RH PILLAR INSULATION	$18.34 Order
7	670005500	LH PILLAR INSULATION	$18.59 Order
8	custom	FASTENER BUTTON6,5X18	$0.00 Order
9	670005498	TUNNEL INSULATION	$131.33 Order
10	670003167 Replaced by: #670037434	FRONT PART OF REAR RH WHEELHOUSE INSULATION	$0.00 Order
10	670037434	FRONT PART OF REAR RH WHEELHOUSE INSULATION	$62.62 Order
11	670003169 Replaced by: #670038084	REAR PART OF REAR RH WHEELHOUSE INSULATION	$0.00 Order
11	670032971 Replaced by: #670038084	REAR PART OF REAR RH WHEELHOUSE INSULATION	$0.00 Order
11	670038084	REAR PART OF REAR RH WHEELHOUSE INSULATION	$70.93 Order
12	670036805 Replaced by: #670108268	REAR SEAT CUSHION SOUDPROOFING PANEL	$0.00 Order
12	670108268	REAR SEAT CUSHION SOUDPROOFING PANEL	$146.70 Order
13	670003168	FRONT PART OF REAR LH WHEELHOUSE INSULATION	$57.95 Order
14	670003170	REAR PART OF REAR LH WHEELHOUSE INSULATION	$67.72 Order
14	670032881	REAR PART OF REAR LH WHEELHOUSE INSULATION	$69.04 Order
15	670004549	TUNNEL EXTERNAL SOUNDPROOFING GUARD	$183.96 Order
16	670001780	ENGINE COMPARTMENT INSULATION	$70.56 Order
17	670002569	UPPER RH ENGINE COMPARTMENT INSULATION	$65.07 Order
18	675000453	PLATE	$10.48 Order
19	custom	FASTENER BUTTON	$0.00 Order
19	custom	FASTENER BUTTON6,5X18	$0.00 Order
20	675000411	WASHER	$14.81 Order
21	custom	FASTENER BUTTON	$0.00 Order
21	custom	FASTENER BUTTON6,5X18	$0.00 Order
22	675000424	PLUG	$27.90 Order
32	675000679	PLUG	$44.28 Order
33	670030941	SOUNDPROOFING ELEMENT FOR SPARE WHEEL CASING	$21.03 Order
46	custom	FASTENER BUTTON	$0.00 Order
