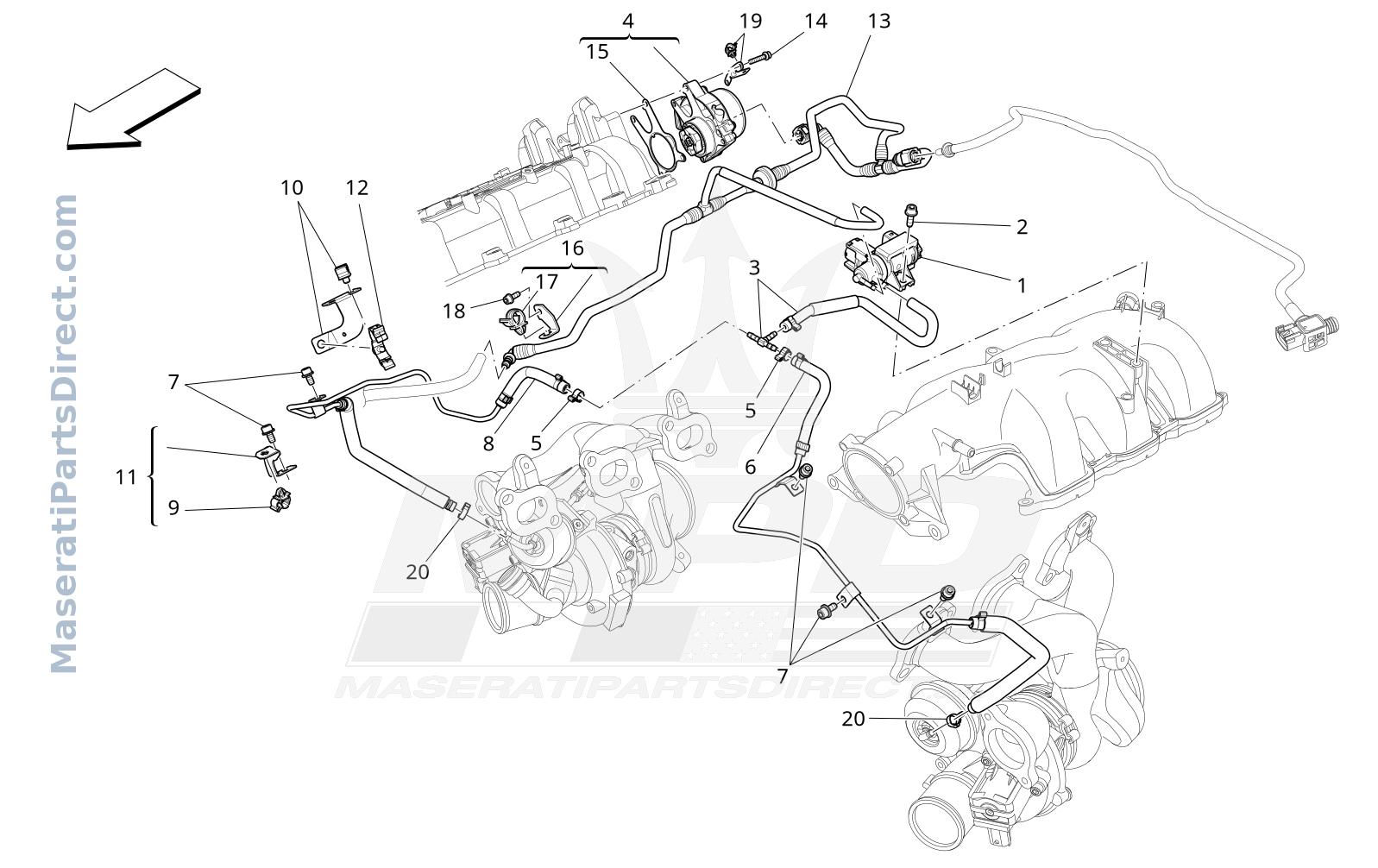

01.50 - 4 - ADDITIONAL AIR SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	287732	MODULAR SOLENOID VALVE	$130.88	In Stock
2	231617	SCREWM6X18	$8.28	In Stock
3	290874 Replaced by: #330968	WG-DV CONTROL PIPES	$0.00	In Stock
3	330968	WG-DV CONTROL PIPES	$53.55	In Stock
4	291642 Replaced by: #899482	VACUUM PUMP	$0.00	In Stock
4	899482	VACUUM PUMP	$266.54	In Stock
5	13125070	COLLAR	$8.00	In Stock
6	299171	LH WG-DV CONTROL PIPE	$577.56	In Stock
6	299987 Replaced by: #890661	LH WG-DV CONTROL PIPE	$0.00	In Stock
6	890661	LH WG-DV CONTROL PIPE	$400.63	In Stock
7	233600	SCREWM6X12	$9.20	In Stock
8	299170	RH WG-DV CONTROL PIPE	$577.56	In Stock
8	326830 Replaced by: #890660	RH WG-DV CONTROL PIPE	$0.00	In Stock
8	890660	RH WG-DV CONTROL PIPE	$357.29	In Stock
9	226603	CLIP	$6.21	In Stock
10	308088	BRACKET ASSEMBLY	$35.56	In Stock
11	291679 Replaced by: #299754	BRACKET ASSEMBLY	$0.00	In Stock
11	299754	BRACKET ASSEMBLY	$0.00	In Stock
12	292193	CLIP	$20.28	In Stock
13	295256 Replaced by: #330969	VACUUM PIPE ASSEMBLY	$0.00	In Stock
13	300176 Replaced by: #330969	VACUUM PIPE ASSEMBLY	$0.00	In Stock
13	330969	VACUUM PIPE ASSEMBLY	$555.51	In Stock
14	231622	SCREWM6X35	$8.64	In Stock
15	295437 Replaced by: #899483	GASKET	$0.00	In Stock
15	899483	GASKET	$52.60	In Stock
16	302144	BRACKET ASSEMBLY	$36.43	In Stock
17	292112	CLIP	$10.40	In Stock
18	233600	SCREWM6X12	$9.20	In Stock
20	13125170	COLLAR	$11.25	In Stock
