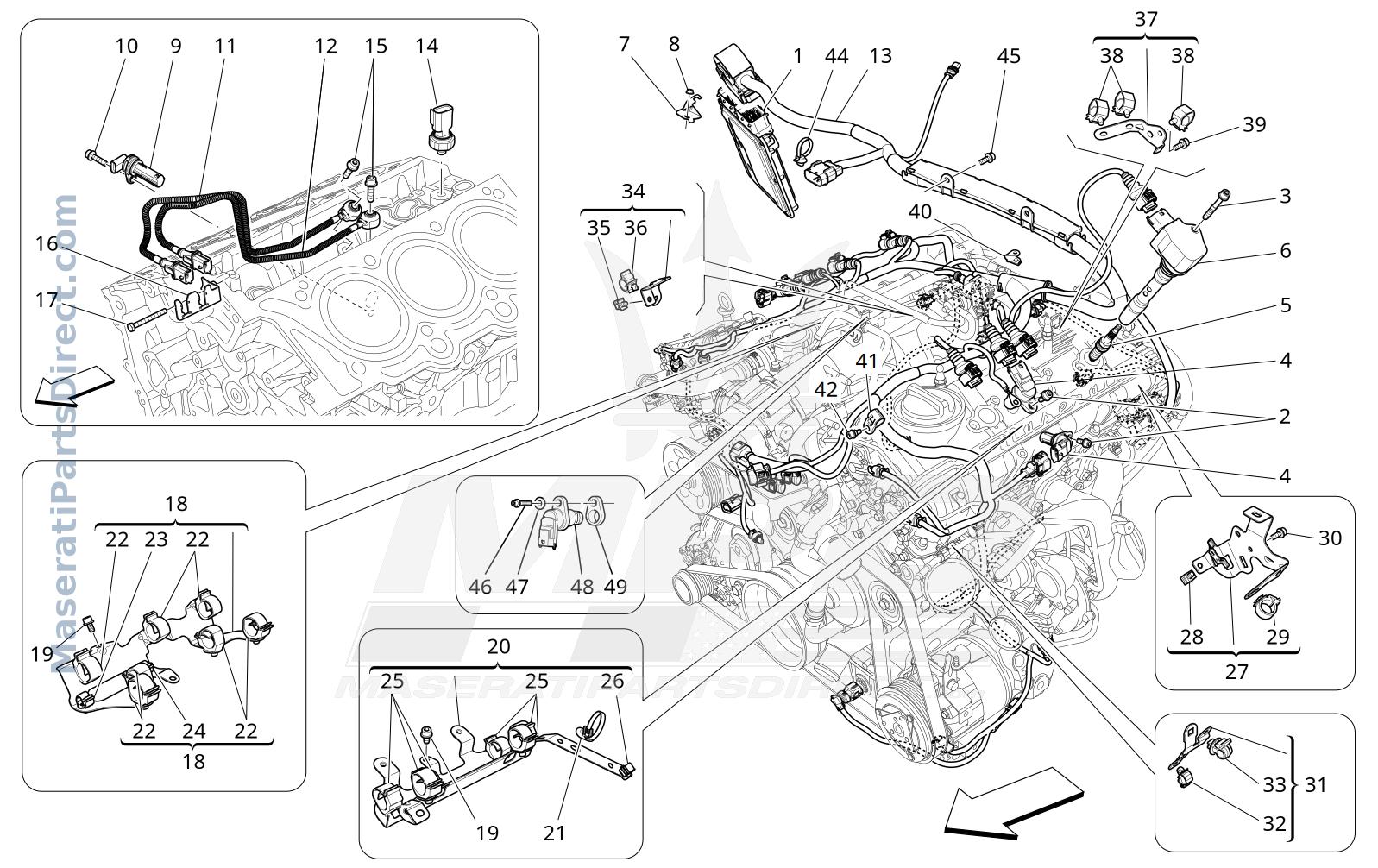

01.90 - 2 - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670031346	IGNITION CONTROL UNIT	$1,619.96 Order
2	231616	SCREWM6X14	$9.20 Order
3	231624	SCREWM6X45	$8.28 Order
4	224573	TIMING SENSOR	$115.20 Order
5	281984 Replaced by: #310235	SPARK PLUG	$0.00 In Stock
5	310235	SPARK PLUG	$33.49 In Stock
6	899078	IGNITION COIL	$215.42 Order
6	288233	IGNITION COIL	$215.42 In Stock
7	670009042	CONTROL UNIT FIXING BRACKET	$34.08 Order
8	14059211	NUTM6	$6.21 Order
9	287245 Replaced by: #961644	ANGULAR SPEED SENSOR	$0.00 Order
9	316965 Replaced by: #961644	ANGULAR SPEED SENSOR	$0.00 Order
9	961644	ANGULAR SPEED SENSOR	$135.70 Order
10	231620	SCREWM6X25	$5.58 In Stock
11	294471 Replaced by: #772995	COMPLETE RH KNOCK SENSOR, CYLINDERS 1-2-3	$0.00 Order
11	772995	COMPLETE RH KNOCK SENSOR, CYLINDERS 1-2-3	$152.59 Order
12	290128 Replaced by: #792379	COMPLETE LH KNOCK SENSOR, CYLINDERS 4-5-6	$0.00 Order
12	792379	COMPLETE LH KNOCK SENSOR, CYLINDERS 4-5-6	$152.59 Order
13	316039	ENGINE INJECTION WIRING HARNESS	$2,999.54 Order
13	324912	ENGINE INJECTION WIRING HARNESS	$3,218.02 Order
13	339929	ENGINE INJECTION WIRING HARNESS	$3,193.67 Order
13	316039	ENGINE INJECTION WIRING HARNESS	$2,999.54 Order
13	324912	ENGINE INJECTION WIRING HARNESS	$3,218.02 Order
14	318371	OIL PRESSURE SENSOR	$112.77 Order
14	328660	OIL PRESSURE SENSOR	$112.77 Order
15	231629	SCREWM8X30	$9.17 In Stock
16	290057	POSITIONING BRACKET	$116.26 Order
17	10903724	SCREWM6X55	$15.65 Order
18	302135	CPL RH BRACKET	$119.03 Order
19	231616	SCREWM6X14	$9.20 Order
20	317131	CPL LH BRACKET	$147.88 Order
21	10901087	CLAMP	$16.17 Order
22	259508	CLIP	$11.52 Order
23	292112	CLIP	$10.40 Order
24	226603	CLIP	$6.21 Order
25	226603	CLIP	$6.21 Order
26	259508	CLIP	$11.52 Order
27	299972	BRACKET ASSEMBLY	$118.33 Order
27	325340 Replaced by: #323966	BRACKET ASSEMBLY	$0.00 Order
27	323966	BRACKET ASSEMBLY	$112.82 Order
28	283287	CLIP	$11.52 Order
28	283287	CLIP	$11.52 Order
29	191273	CLIP	$10.40 Order
30	231616	SCREWM6X14	$9.20 Order
31	290960	BRACKET ASSEMBLY	$35.14 Order
32	226603	CLIP	$6.21 Order
33	288849	CLIP	$112.79 Order
34	673007937	BRACKET ASSEMBLY	$60.05 Order
35	283287	CLIP	$11.52 Order
36	247440	CLIP	$10.40 Order
37	318883	BRACKET ASSEMBLY	$58.70 Order
38	259508	CLIP	$11.52 Order
39	231616	SCREWM6X14	$9.20 Order
40	297431	BRACKET	$0.00 Order
41	291068	BRACKET	$0.00 Order
42	233600	SCREWM6X12	$9.20 Order
44	670008301	CLIP	$0.00 Order
45	675000556	SCREW	$10.40 Order
