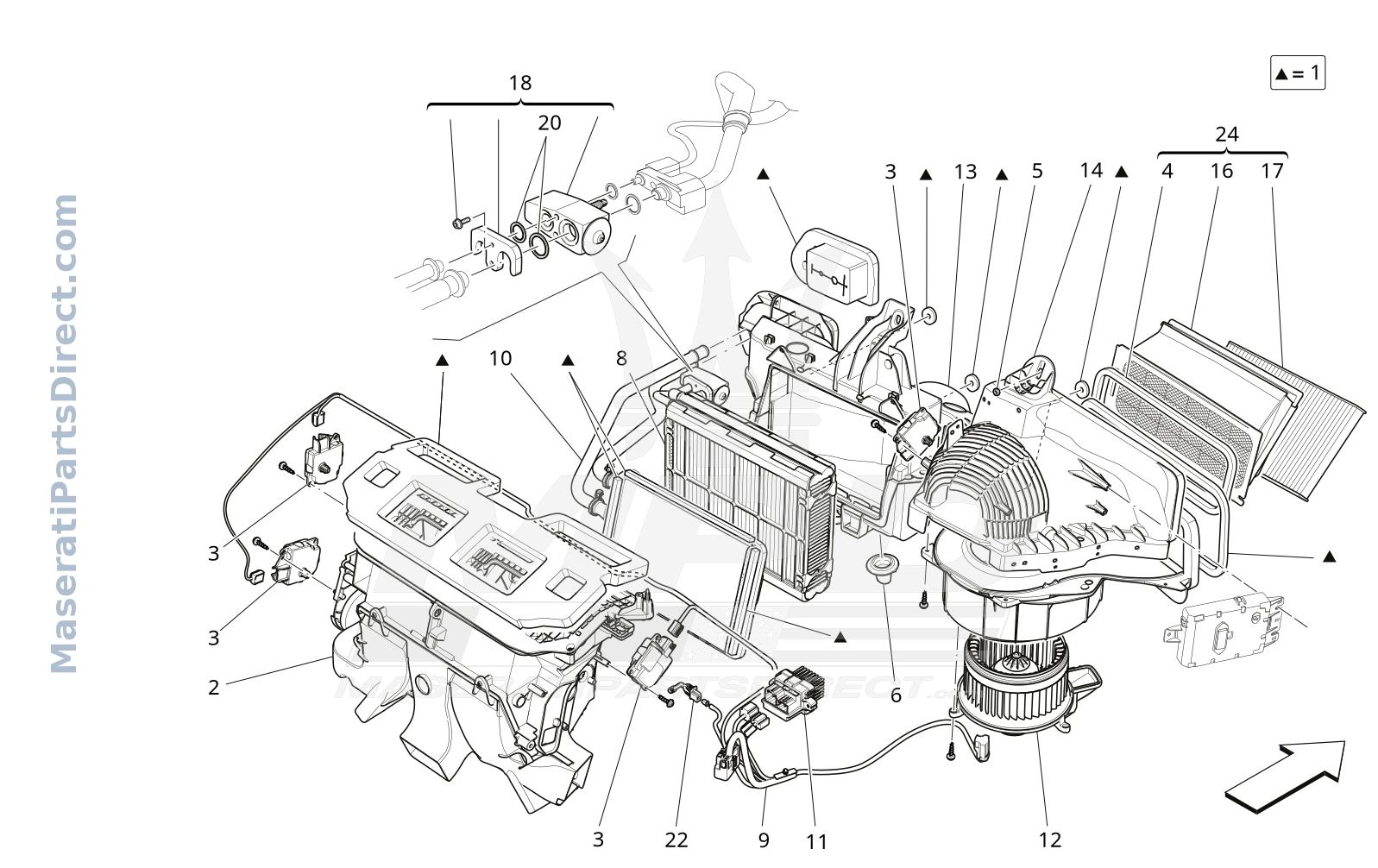

08.41 - 1 - A/C UNIT: DASHBOARD DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	670009118	AIR CONDITIONING ASSEMBLY	$5,194.61 Order
0	670036837	AIR CONDITIONING ASSEMBLY	$5,171.58 Order
1	673000099	GASKET KIT	$526.66 Order
2	673000097	AIR DISTRIBUTION MODULE	$1,253.34 Order
3	673005493	ACTUATOR	$149.75 Order
4	670007353	GASKET	$64.70 Order
5	675000093	NUTM6	$9.73 Order
6	675000425	CONDENSATION DRAIN PIPE	$38.02 Order
8	673009412	EVAPORATOR ASSEMBLY	$1,168.35 Order
9	673000090	WIRING HARNESS	$453.68 Order
10	673000093	HEATER KIT	$1,103.73 Order
11	673000092 Replaced by: #673009866	POWER MODULE	$0.00 Order
11	673009454 Replaced by: #673009866	POWER MODULE	$0.00 Order
11	673009866	POWER MODULE	$434.24 Order
12	673000088	ELECTROFAN	$893.04 Order
13	673000095	EVAPOURATOR HOUSING	$485.27 Order
14	673000101	AIR INLET MODULE	$799.37 Order
16	670005020	AIR CONDITIONING CASE	$74.28 Order
17	670005021	POLLEN FILTER	$53.59 In Stock
18	673003704	TXV KIT	$0.00 Order
20	673005761	CPL. TXV GASKET KIT	$114.68 Order
22	673000104	TEMPERATURE SENSOR	$84.53 Order
0	673000105	PLUG KIT	$35.56 Order
24	670004016	AIR CONDITIONING CASE WITH FILTER CPL.	$136.44 Order
