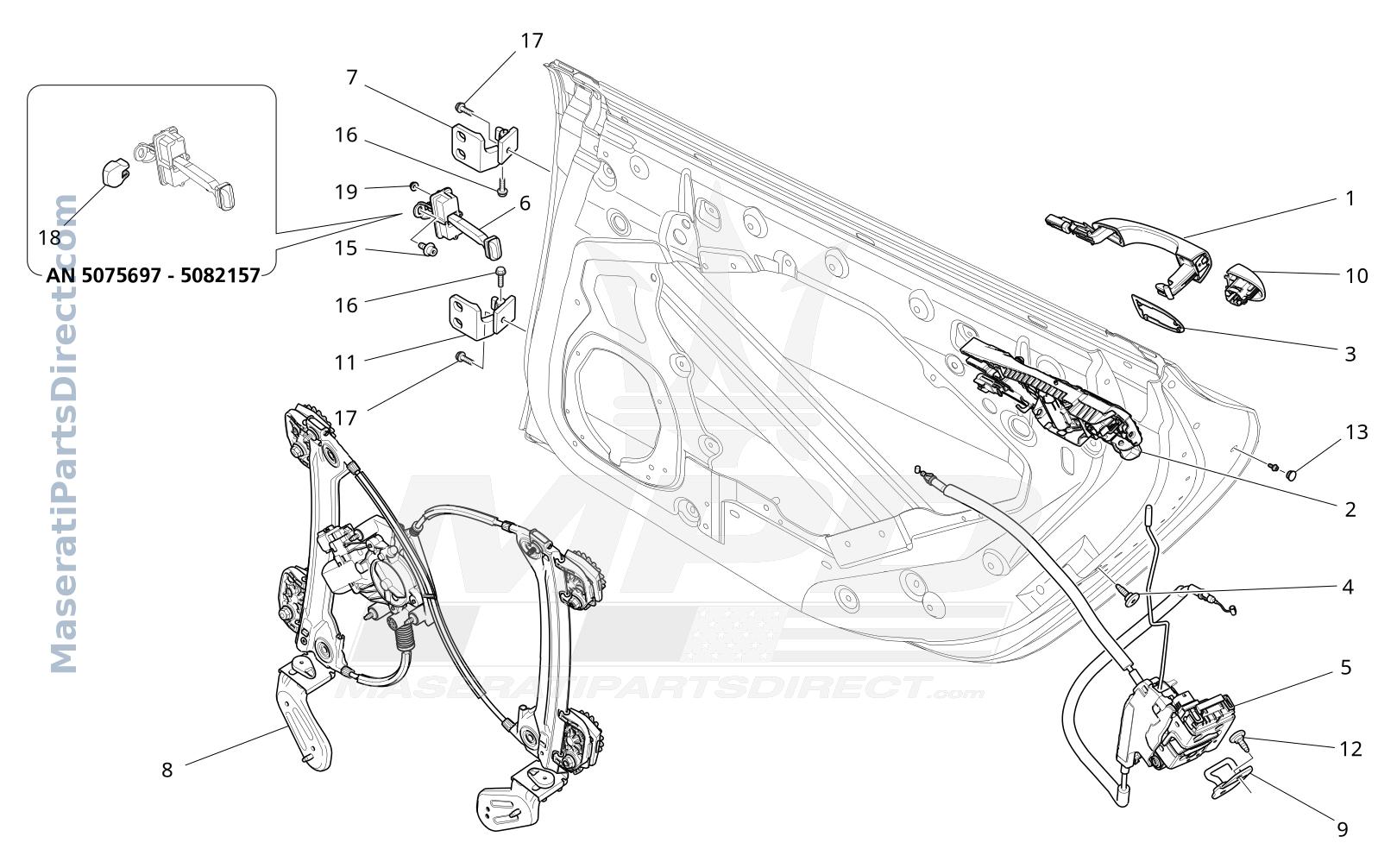

09.33 - 1 - REAR DOORS: MECHANISMS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
2	670034545 Replaced by: #670109521	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670107989 Replaced by: #670109521	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670109521	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$255.27 Order
2	670034544 Replaced by: #670109520	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670107988 Replaced by: #670109520	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$0.00 Order
2	670109520	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$232.07 Order
3	670005442	EXTERNAL DOOR HANDLE GASKET	$9.73 Order
4	670005609	SCREW	$15.65 Order
5	670032947 Replaced by: #670162385	LH REAR DOOR LOCK	$0.00 Order
5	670100896 Replaced by: #670162385	LH REAR DOOR LOCK	$0.00 Order
5	670162385	LH REAR DOOR LOCK	$380.10 Order
5	670032946 Replaced by: #670162383	RH REAR DOOR LOCK	$0.00 Order
5	670100895 Replaced by: #670162383	RH REAR DOOR LOCK	$0.00 Order
5	670162383	RH REAR DOOR LOCK	$380.10 Order
6	670030626	TIE ROD	$0.00 Order
7	675000160	LH UPPER HINGE	$52.55 Order
7	675000162	RH UPPER HINGE	$93.52 Order
8	670030023 Replaced by: #670103667	LH REAR POWER WINDOW	$0.00 Order
8	670102274 Replaced by: #670103667	LH REAR POWER WINDOW	$0.00 Order
8	670103667	LH REAR POWER WINDOW	$834.06 Order
8	670030022 Replaced by: #670103666	RH REAR POWER WINDOW	$0.00 Order
8	670102273 Replaced by: #670103666	RH REAR POWER WINDOW	$0.00 Order
8	670103666	RH REAR POWER WINDOW	$834.94 Order
9	675000573	DOORS LOCK STRIKER	$42.20 Order
10	675000300	DOOR LOCK REVOLVING PLUG TRIM	$41.89 Order
11	675000159	LH LOWER HINGE	$50.43 Order
11	675000161	RH LOWER HINGE	$52.55 Order
12	670007382 Replaced by: #670009758	SPECIAL SCREW	$0.00 Order
12	670009758	SPECIAL SCREW	$6.93 Order
13	custom	PLUG	$0.00 Order
15	670006984	SCREW	$10.40 Order
16	675000005	SCREWM 8x15	$6.93 Order
17	675000485	SCREWM10	$9.73 Order
19	670006983	NUT	$9.20 Order
