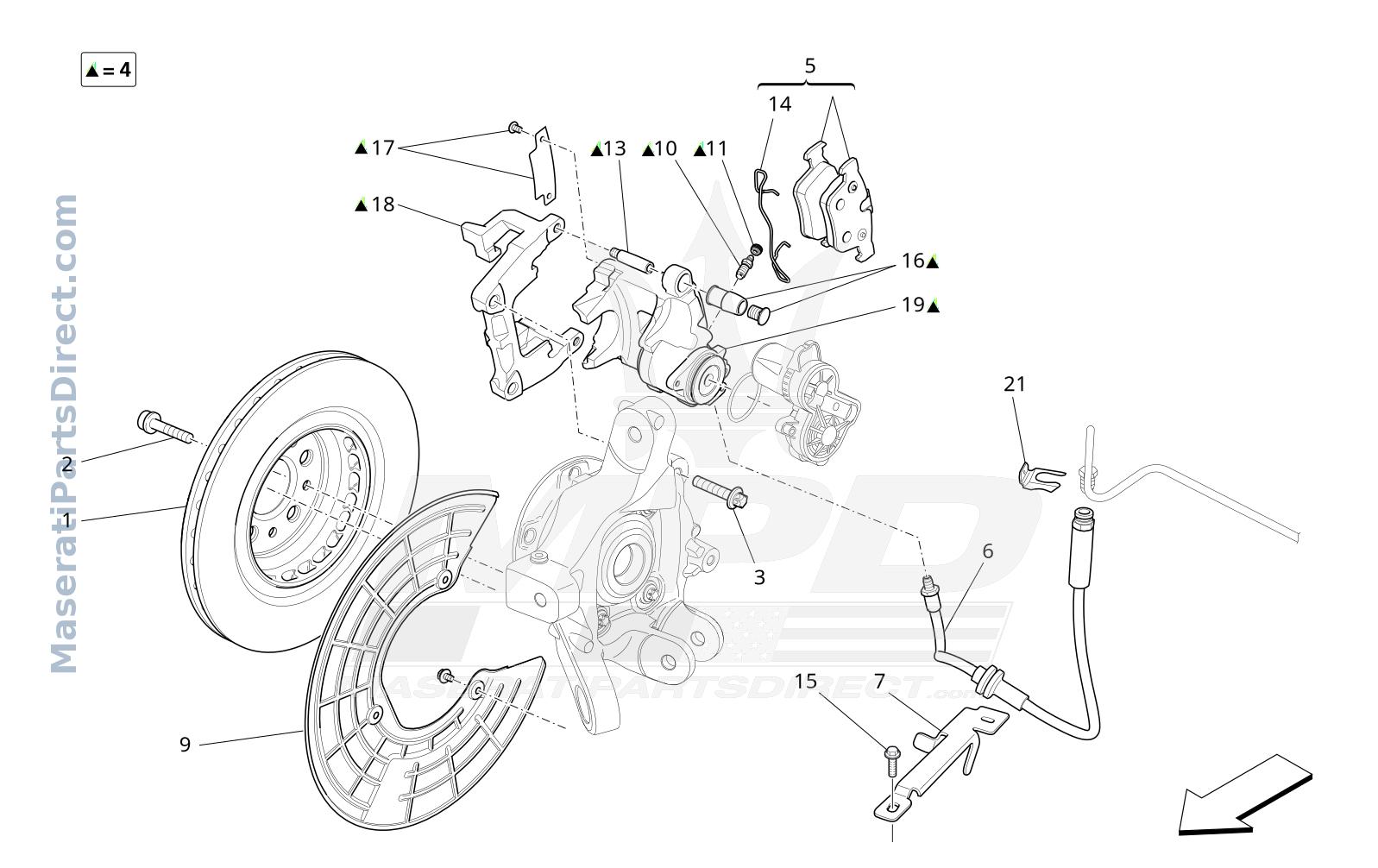

04.11 - 7 - BRAKING DEVICES ON REAR WHEELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670031771	REAR BRAKE DISC	$251.94 In Stock
2	675000279	SCREW	$10.14 Order
3	670005715	SCREW	$11.52 In Stock
4	custom	LH REAR CALIPER ASSEMBLY	$0.00 Order
4	custom	RH REAR CALIPER ASSEMBLY	$0.00 Order
5	673004626 Replaced by: #673012302.0	REAR PADS KIT	$0.00 Order
5	673012302	REAR PADS KIT	$299.62 In Stock
6	670155386	FLEXIBLE PIPE TO FRONT CALIPERS	$629.10 Order
6	670035282 Replaced by: #670155386.0	FLEXIBLE PIPE TO REAR CALIPERS	$0.00 Order
7	670036897	BRACKET	$14.56 Order
9	670032056	LH GUARD	$42.96 Order
9	670032057	RH GUARD	$42.96 Order
10	673004422	BLEEDER SCREW	$85.23 Order
11	673004423	DUST SEAL	$60.83 Order
13	673005441	CENTERING PIN	$43.04 Order
14	673005442	CLIP	$79.81 Order
15	675000437	SCREW	$11.52 Order
16	673005434	REAR BRAKE CALIPER GUIDE	$55.25 Order
17	custom	PLATE KIT	$0.00 Order
18	custom	BRACKET	$0.00 Order
19	custom	LH REAR CALIPER	$0.00 Order
19	custom	RH REAR CALIPER	$0.00 Order
21	675000276	SPRING PLATE	$6.93 Order
