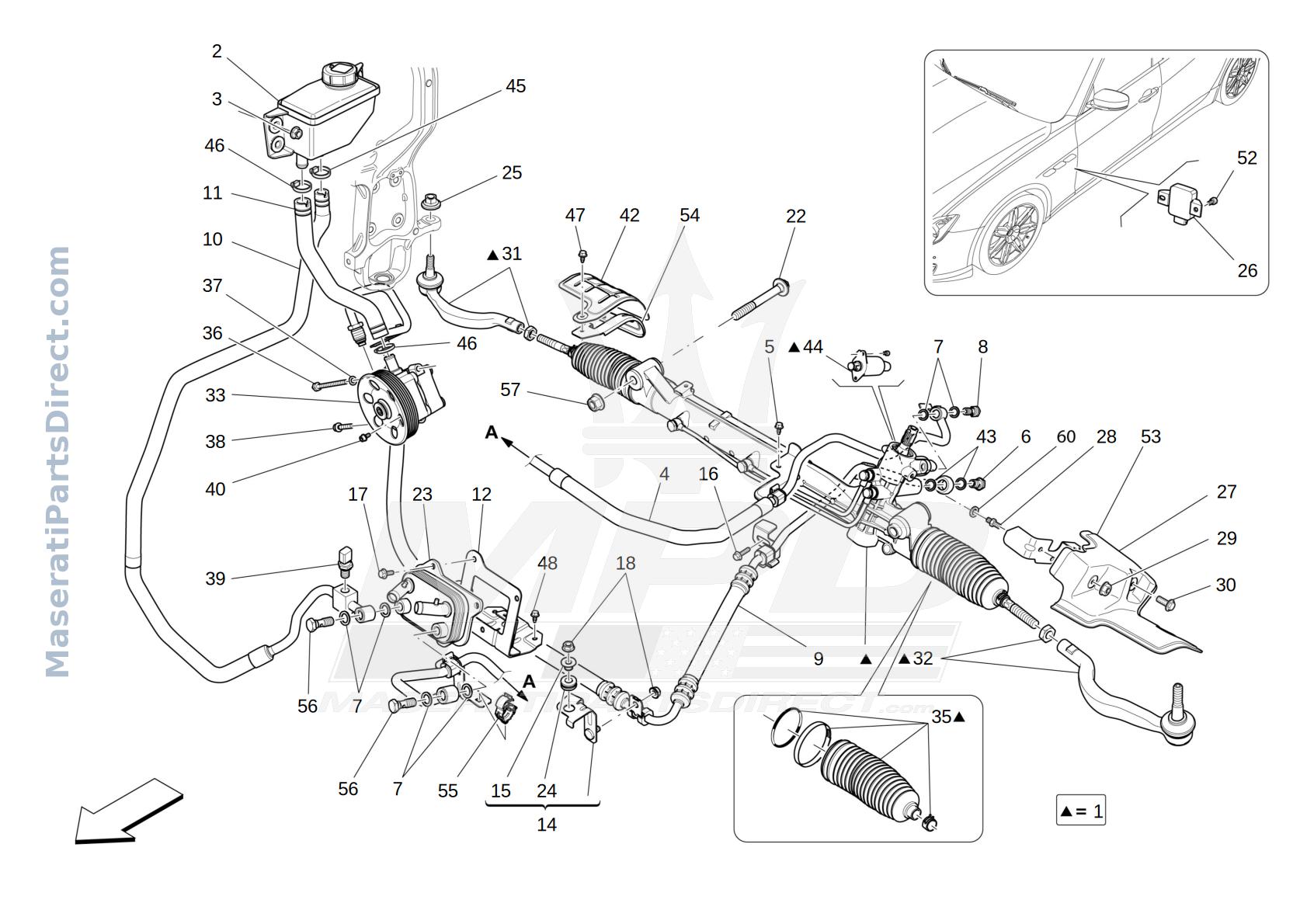

05.10 - 2 - COMPLETE STEERING RACK UNIT

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670003956 Replaced by: #670102931	STEERING RACK	$0.00 In Stock
1	670036718 Replaced by: #670102931	STEERING RACK	$0.00 In Stock
1	670102931	STEERING RACK	$3,839.89 In Stock
2	670004538	OIL TANK FOR HYDRAULIC POWER STEERING	$80.11 Order
3	14059311	NUTM8	$9.17 Order
4	670006578	PIPE FROM STEERING BOX TO EXCHANGER	$190.65 Order
5	675000278	SCREWM6X25	$10.00 Order
6	675000203	UNION	$20.93 Order
7	675000250	GASKET	$11.52 In Stock
8	675000021	UNION	$13.28 Order
9	670001922	PIPE BETWEEN STEERING RACK AND PUMP	$230.87 Order
10	670006577	PIPE BETWEEN RESERVOIR AND HEAT EXCHANGER	$130.41 Order
11	670001924	PIPE FROM TANK TO PUMP	$25.78 Order
12	670006487	OIL EXCHANGER BRACKET	$99.89 Order
14	670001926	BRACKET	$52.38 Order
15	675000129	SPACER	$73.11 Order
16	675000278	SCREWM6X25	$10.00 Order
17	10872624	SCREWM6X16	$51.98 Order
18	14059311	NUTM8	$9.17 Order
22	670001945	SCREW	$19.95 Order
23	670031618	HEAT EXCHANGER	$172.79 Order
24	675000054	FLEXIBLE PAD	$35.56 Order
25	675000127	NUTM12	$10.22 In Stock
26	670009202	POWER STEERING CONTROL UNIT	$306.72 Order
27	670001946	HEAT SHIELD	$522.29 Order
28	670005277	SCREW	$29.03 Order
29	14059211	NUTM6	$6.21 Order
30	675000088	SCREWM6X22	$10.22 Order
31	673000006	RH OUTER TIE-ROD	$375.05 Order
32	673000005	LH OUTER TIE-ROD	$375.65 Order
33	268447	HYDRAULIC STEERING PUMP	$3,102.50 Order
35	673000004	GAITER AND CLAMP KIT	$89.02 Order
36	286697	STUD	$187.53 Order
37	11193874	WASHERD.8.4-16X1.4	$5.58 Order
38	265097	SCREWM8X40	$21.24 Order
39	670005736	TEMPERATURE SENSOR	$30.57 In Stock
40	231616	SCREWM6X14	$9.20 Order
42	670006235	HEAT SHIELD	$111.76 Order
43	675000152	GASKET	$7.65 In Stock
44	673001466	STEERING BOX SOLENOID	$333.74 Order
45	675000266	COLLARD.17,5	$9.84 Order
46	675000267	COLLARD.21,5	$12.30 Order
47	675000088	SCREWM6X22	$10.22 Order
48	675000278	SCREWM6X25	$10.00 Order
52	675000454	SCREWM5X12	$10.40 Order
53	670005854	BRACKET	$39.68 Order
54	670005772	BRACKET ASSEMBLY	$162.29 Order
55	670009151	CLIP	$10.40 Order
56	670031619	UNION	$20.20 Order
57	675000148	NUTM14	$9.72 Order
60	675000106	WASHER	$4.29 Order
