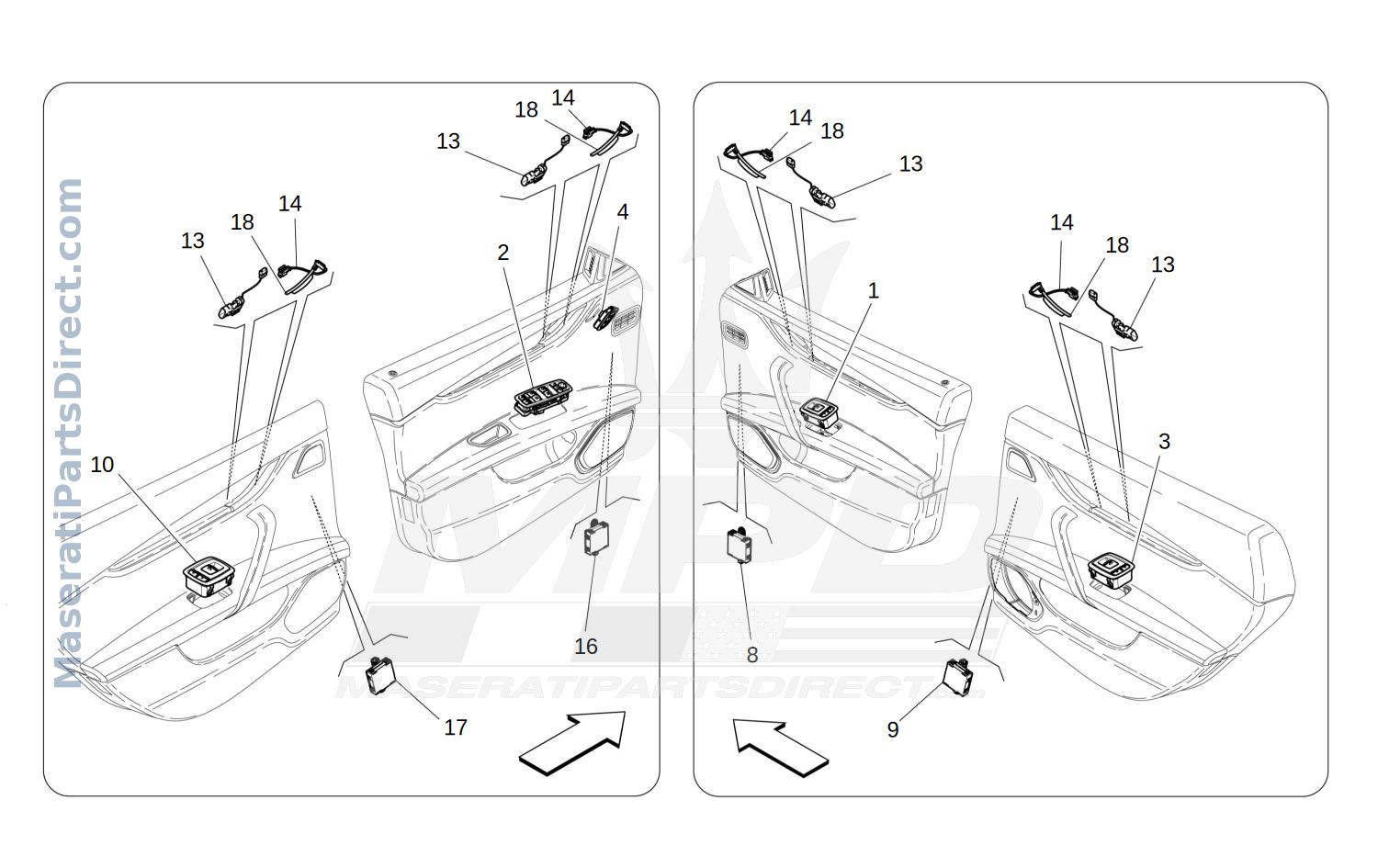

08.52 - 2 - DOOR DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
1	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
2	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
2	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
3	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
3	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
4	custom	SEAT MEMORY SELECTOR SWITCH	$0.00 Order
8	670038650 Replaced by: #670103742	FRONT RIGHT DOOR CAN NODE ECU	$0.00 Order
8	670103742	FRONT RIGHT DOOR CAN NODE ECU	$377.50 Order
9	670038648	REAR RIGHT DOOR CAN NODE ECU	$323.10 Order
10	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
10	custom	DOOR POWER WINDOW TRIM PLATE	$0.00 Order
13	673002006	LH MICROSWITCH	$110.68 Order
13	673002771	RH MICROSWITCH	$127.69 Order
14	673002005	LED WIRING	$109.94 Order
16	670038647 Replaced by: #670106649	FRONT LEFT DOOR CAN NODE ECU	$0.00 Order
16	670103741 Replaced by: #670106649	FRONT LEFT DOOR CAN NODE ECU	$0.00 Order
16	670106649	FRONT LEFT DOOR CAN NODE ECU	$376.47 Order
17	670038649	REAR LEFT DOOR CAN NODE ECU	$0.00 Order
18	673001458	HANDLE LED LIGHT	$70.29 Order
