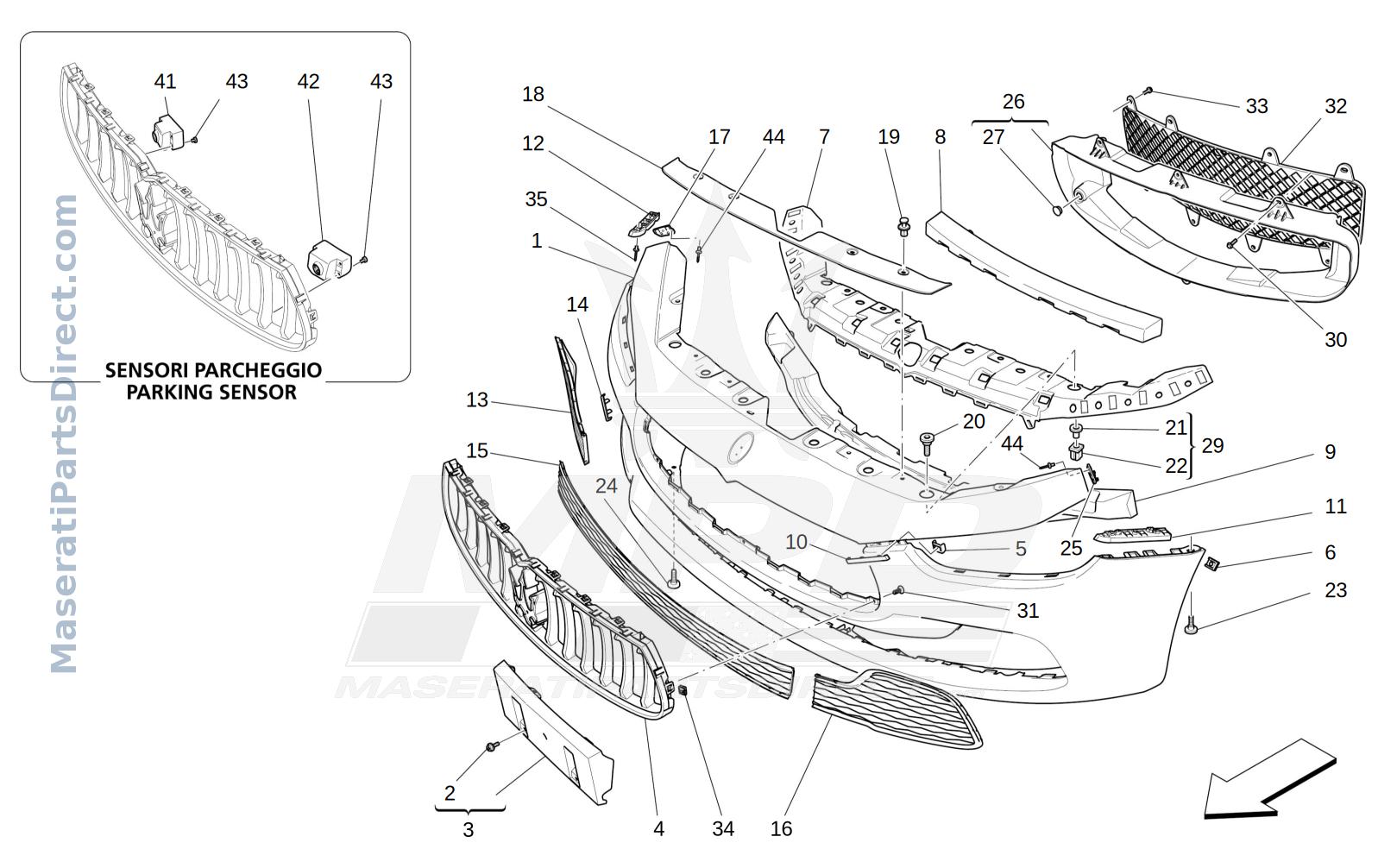

09.10 - 3 - FRONT BUMPER

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT BUMPER	$0.00 Order
2	675000228	SCREW	$12.30 In Stock
3	custom	FRONT LICENSE PLATE HOLDER	$0.00 Order
4	custom	FRONT GRILLE ASSEMBLY	$0.00 Order
5	675000337	RETAINING CLIP	$20.20 Order
6	675000192	BRACKET	$9.84 $8.36 In Stock
7	670004437	UPPER BUMPER REINFORCEMENT	$147.07 Order
9	670036191	LOWER CENTRAL FRONT BUMPER PANEL	$152.79 Order
10	670011292	LH PLATE	$117.92 Order
11	670004830	LH FRONT BUMPER BRACKET	$16.45 In Stock
12	670004829	REINFORCEMENT BRACKET	$16.45 In Stock
13	670010765	RH MUDGUARD PROTECTION LOWER GRILL	$192.57 Order
14	670011291	RH PLATE	$117.92 Order
15	670010773	CENTRAL GRILL	$291.13 Order
16	670010766	LH MUDGUARD PROTECTION LOWER GRILL	$192.57 Order
17	670004442	RH SIDE BRACKET	$14.28 Order
18	custom	UPPER COVER	$0.00 Order
19	670014562	FASTENER BUTTON	$11.52 Order
20	670003766	SPECIAL SCREW	$11.52 Order
23	675000057	SCREW	$8.64 $7.34 In Stock
24	670034505	SCREW	$8.00 In Stock
25	670004458	LH SIDE BRACKET	$14.28 Order
26	custom	AIR DUCT ASSEMBLY	$0.00 Order
27	670009832	PLUG	$40.10 Order
29	670005535	BLOCK	$12.98 Order
30	675000077	SCREW	$8.64 Order
31	675000332	SCREW	$10.16 Order
32	670006937	GRILL	$92.28 Order
33	675000104	SCREWM6X25	$7.65 Order
34	673002939	CLIP	$14.56 Order
35	675000323	RIVET	$8.64 In Stock
41	673002937	RH CENTRAL PARKING SENSOR SUPPORT	$54.28 Order
42	673002938	LH CENTRAL PARKING SENSOR SUPPORT	$52.18 Order
43	673006994	SCREW	$10.40 Order
44	675000531	RIVET	$11.52 Order
