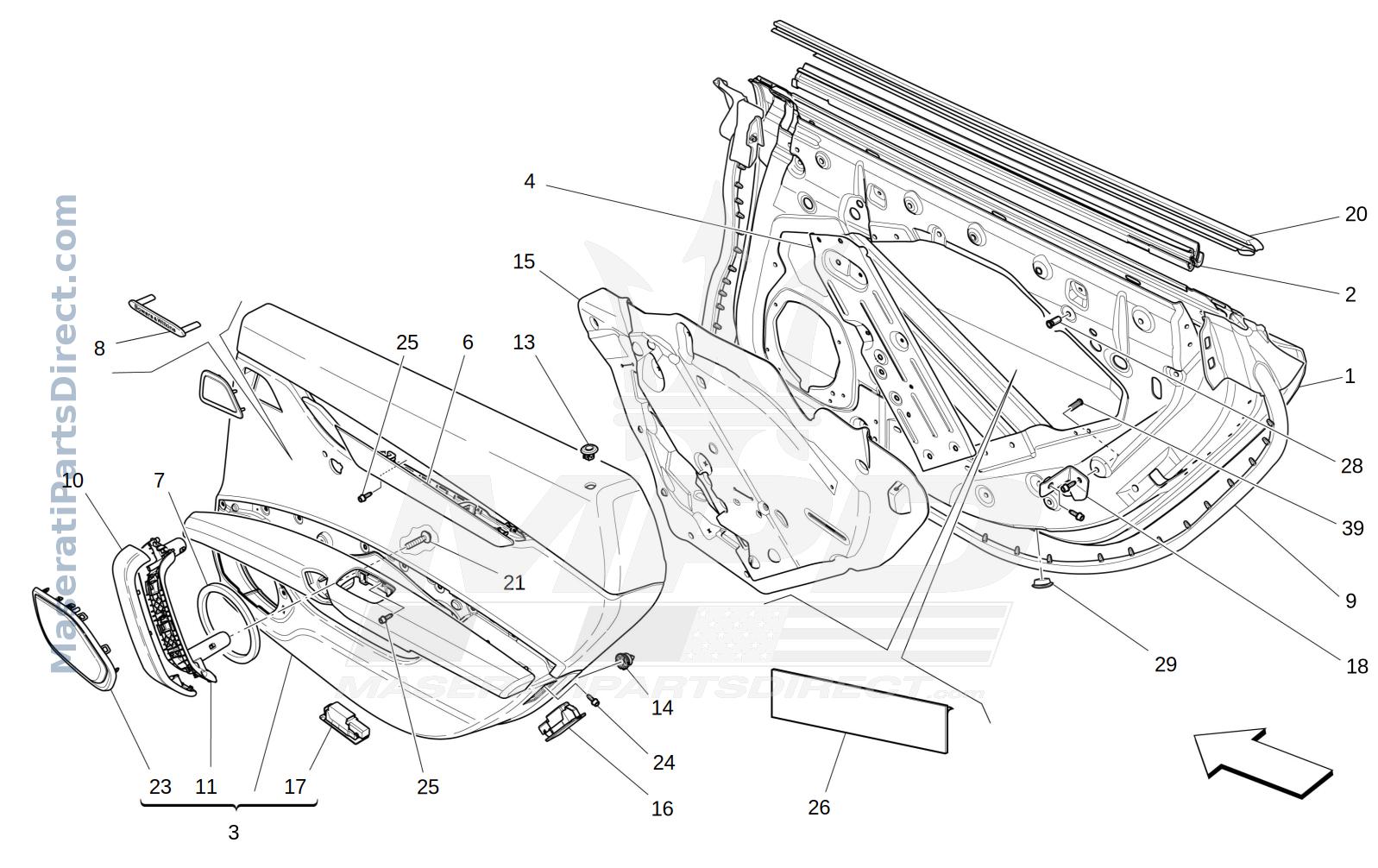

09.32 - 2 - REAR DOORS: TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673008062	LH REAR DOOR ASSEMBLY	$3,830.05 Order
1	673008061	RH REAR DOOR ASSEMBLY	$3,830.05 Order
2	670030054	LH REAR DOOR GLASS SCRAPER GASKET	$232.09 Order
2	670030053	RH REAR DOOR GLASS SCRAPER GASKET	$232.09 Order
3	custom	REAR LH DOOR PANEL ASSEMBLY	$0.00 Order
3	custom	REAR RH DOOR PANEL ASSEMBLY	$0.00 Order
4	670004788	LH REAR DOOR CENTRAL REINFORCEMENT	$104.65 Order
4	670004787	RH REAR DOOR CENTRAL REINFORCEMENT	$104.65 Order
6	custom	LH DOOR PANEL INTERNAL TRIM	$0.00 Order
6	custom	RH DOOR PANEL INTERNAL TRIM	$0.00 Order
7	673001453	ADHESIVE GASKET	$63.38 Order
8	673001459	BOWERS WILKINS PLATE	$114.84 Order
9	670037620	LH REAR DOOR GASKET	$430.92 Order
9	670037619	RH REAR DOOR GASKET	$379.43 Order
10	custom	LH HANDLE COVER TRIM PLATE	$0.00 Order
10	custom	RH HANDLE COVER TRIM PLATE	$0.00 Order
11	custom	LH HANDHOLD FRAME	$0.00 Order
11	custom	LH HANDHOLD FRAME	$0.00 Order
13	673001444	REAR DOOR BUSHING	$179.89 Order
14	670007591 Replaced by: #670219478	FASTENING PIN	$0.00 Order
14	670105966 Replaced by: #670220013	FASTENING PIN	$0.00 Order
14	670106049 Replaced by: #670219478	FASTENING PIN	$9.72 $8.26 Order
14	670108288 Replaced by: #670220013	FASTENING PIN	$0.00 Order
14	670219478	FASTENING PIN	$9.24 Order
15	670038475 Replaced by: #670105571	LH REAR DOOR WATER GUARD	$0.00 Order
15	670105571	LH REAR DOOR WATER GUARD	$103.75 Order
15	670038473 Replaced by: #670105570	RH REAR DOOR WATER GUARD	$0.00 Order
16	670007082	DOMELIGHT	$69.04 Order
17	675000265	UNDER DOOR LAMP	$11.70 Order
20	670104027	LH REAR DOOR GLASS SCRAPER GASKET	$546.97 Order
20	670104025	RH REAR DOOR GLASS SCRAPER GASKET	$354.94 Order
21	673002001	SCREW	$45.12 Order
23	custom	LH LOUD SPEAKER GRILL	$0.00 Order
23	custom	RH LOUD SPEAKER GRILL	$0.00 Order
24	670008293 Replaced by: #670153171	SCREW	$7.65 Order
24	670153171	SCREW	$7.65 Order
25	670008293 Replaced by: #670153171	SCREW	$7.65 Order
25	670153171	SCREW	$7.65 Order
26	670034380	SOUNDPROOFING ELEMENT	$13.28 Order
28	670005149	RIVET	$10.62 Order
29	custom	PLUG	$0.00 Order
39	670155282	PIN	$11.52 Order
