| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 0 | 670038687 | ENGINE ASSEMBLY |
$0.00
Order
|
|
|
| 0 | 985000331 | LIGHT ENGINE |
$0.00
Order
|
|
|
| 1 | 767001 | ENGINE BLOCK |
$0.00
Order
|
|
|
| 1 | 767001 | ENGINE BLOCK |
$0.00
Order
|
|
|
| 1 |
312632
Replaced by: #767001
|
ENGINE BLOCK |
$0.00
Order
|
|
|
| 3 | 275361 | BASE SHIELD |
$210.56
Order
|
|
|
| 4 | 336973 | LH ENGINE MOUNTING BRACKET |
$0.00
Order
|
|
|
| 4 | 336971 | RH ENGINE MOUNTING BRACKET |
$0.00
Order
|
|
|
| 5 | 15971334 | SCREWM10X75 |
$18.06
Order
|
|
|
| 6 |
670038978
Replaced by: #670175585
|
LH ENGINE BUSHING |
$0.00
Order
|
|
|
| 6 | 670175585 | LH ENGINE BUSHING |
$521.64
Order
|
|
|
| 6 |
670038977
Replaced by: #670175584
|
RH ENGINE BUSHING |
$0.00
Order
|
|
|
| 6 | 670175584 | RH ENGINE BUSHING |
$521.64
Order
|
|
|
| 7 | 670003759 | SCREWM12X44 |
$23.79
Order
|
|
|
| 8 | 670103084 | SCREW |
$14.14
Order
|
|
|
| 9 | 670103084 | SCREW |
$14.14
Order
|
|
|
| 10 | 670003982 | LH HEAT SHIELD |
$50.05
Order
|
|
|
| 10 | 670003984 | RH HEAT SHIELD |
$52.55
Order
|
|
|
| 11 | 011567624 | SCREWM6X14 |
$0.00
Order
|
|
|
| 12 | 285238 | LH BRACKET |
$41.99
Order
|
|
|
| 12 | 289475 | RH BRACKET |
$47.20
Order
|
|
|
| 13 | 231628 | SCREWM8X25 |
$9.17
Order
|
|
|
| 14 | 11288034 | SCREWM10X60 |
$12.30
Order
|
|
|
| 15 | 11190574 | WASHERD.10.5-20X2.3 |
$8.64
Order
|
|
|
| 16 |
670003868
Replaced by: #670007404
|
CABLE FOR ENGINE-FRAME EARTH |
$0.00
Order
|
|
|
| 16 | 670007404 | CABLE FOR ENGINE-FRAME EARTH |
$186.10
Order
|
|
|
| 17 | 165351 | CENTERING DOWEL |
$18.59
Order
|
|
|
| 17 | 300476 | CENTERING DOWEL |
$18.87
Order
|
|
|
| 18 | 275360 | SCREWM8 |
$21.03
Order
|
|
|
| 19 | 279025 | CENTERING DOWEL |
$243.36
Order
|
|
|
| 20 | - | PLUGTEMPORARILY UNAVAILABLE, PLEASE ORDER COMPLETE ASSEMBLY THAT INCLUDES THIS SPECIFIC PART. |
$0.00
Order
|
|
|
| 21 | 282607 | SCREWM8X40 |
$15.89
Order
|
|
|
| 21 | - | SCREWM8X58TEMPORARILY UNAVAILABLE, PLEASE ORDER COMPLETE ASSEMBLY THAT INCLUDES THIS SPECIFIC PART. |
$0.00
Order
|
|
|
| 22 | 313719 | THREADED PLUG WITH COPPER WASHER |
$137.39
Order
|
|
|
| 23 |
282514
Replaced by: #306027
|
STUD |
$0.00
Order
|
|
|
| 23 | 306027 | STUD |
$43.04
Order
|
|
|
| 24 | 185360 | CENTERING DOWEL |
$23.23
Order
|
|
|
| 25 | 290976 | STUD |
$23.43
Order
|
|
|
| 25 | 303590 | STUD |
$23.79
Order
|
|
|
| 26 | 303589 | STUD |
$23.10
Order
|
|
|
| 27 | 10337710 | STUD |
$16.70
Order
|
|
|
| 28 |
327702
Replaced by: #335495
|
REAR PLATE |
$0.00
Order
|
|
|
| 28 | 275289 | REAR PLATE |
$205.90
Order
|
|
|
| 28 | 275289 | REAR PLATEFOR THE SELECTION OF THE CORRECT REAR PLATE, BEFORE TO PROCEED WITH THE SPARE PART ORDER, PLEASE CHECK THE PHOTO ATTACHED AND VERIFY THE MATCHING WITH THE ORIGINAL PART FITTED ON THE ENGINE - SUITABLE ONLY WITH ENGINE BLOCK P/N 295334 |
$205.90
Order
|
|
|
| 28 | 335495 | REAR PLATE |
$207.35
Order
|
|
|
| 28 | 335495 | REAR PLATE |
$207.35
Order
|
|
|
| 29 | 231617 | SCREWM6X18 |
$8.28
Order
|
|
|
| 31 | 10337710 | STUD |
$16.70
Order
|
|
|
| 32 | - | SCREWM11INCLUDED IN THE ENGINE BLOCK |
$0.00
Order
|
|
|
| 33 | 334627 | SEAL RING |
$172.79
In Stock
|
|
|
| 34 | 670003630 | HIGH LINK ROD |
$188.36
Order
|
|
|
| 35 | 670035412 | SCREW |
$11.72
Order
|
|
|
| 36 | 675000247 | WASHERD.10.2-25X3 |
$9.73
Order
|
|
|
| 37 | 675000146 | SCREWM12X80 |
$13.58
Order
|
|
|
| 38 | 675000383 | SCREWM8X16 |
$10.62
Order
|
|
|
| 39 | 326558 | GASKET |
$30.83
Order
|
|
|
| 40 | 675000505 | NUTM8 |
$12.98
Order
|
|
|
| 42 | 102725 | CENTERING DOWEL |
$10.40
Order
|
|
|
| 43 | 10418501 | BRACKET |
$0.00
Order
|
|
|
| 44 | 231616 | SCREWM6X14 |
$9.20
Order
|
|
|
| 45 | 11190574 | WASHERD.10.5-20X2.3 |
$8.64
Order
|
|

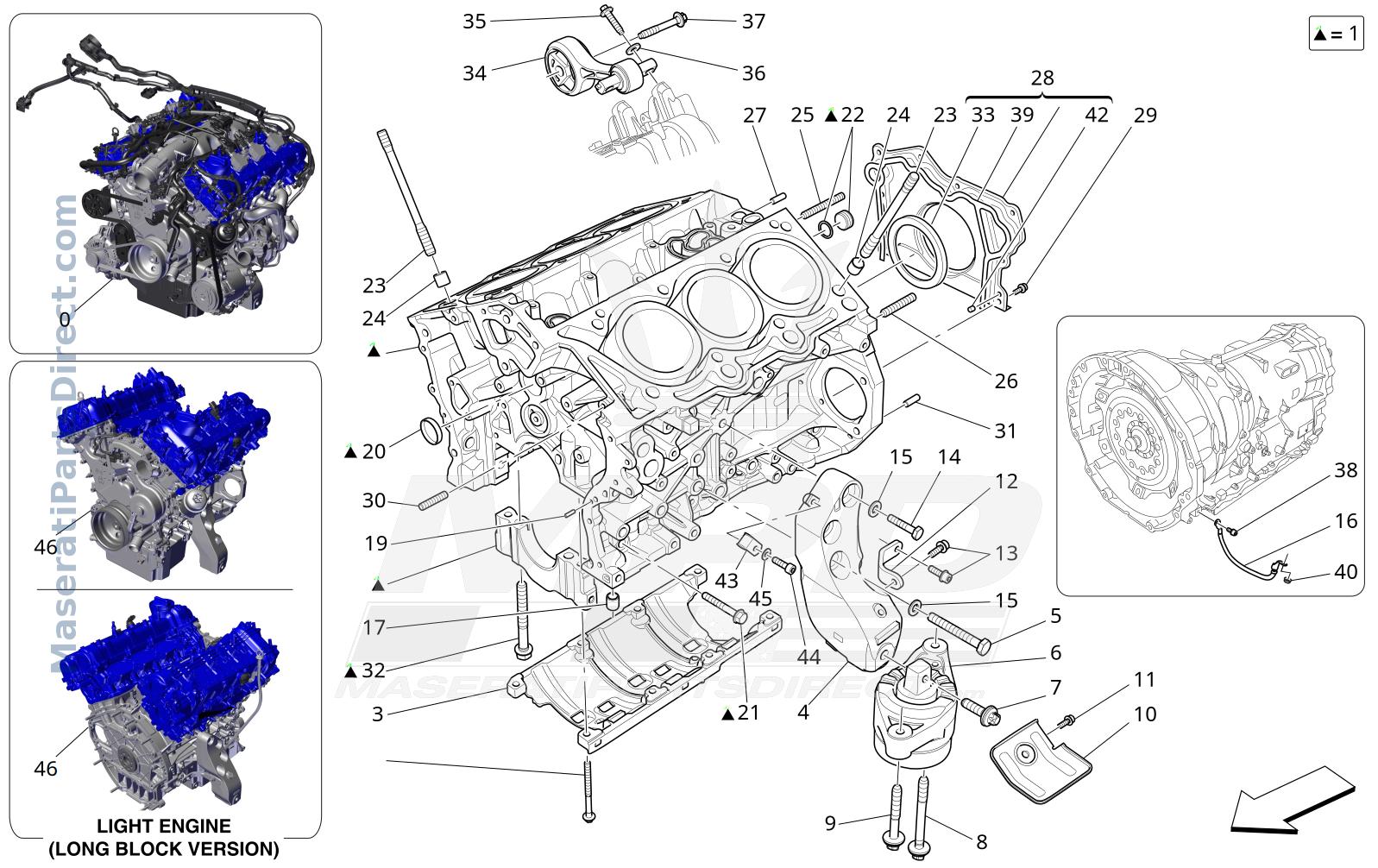

| SVG Path | Gh2018-01-00-2-crankcase-2wd430hp.svg |
|---|---|
| SVG Width | 798.800000 |
| SVG Height | 503.400000 |
