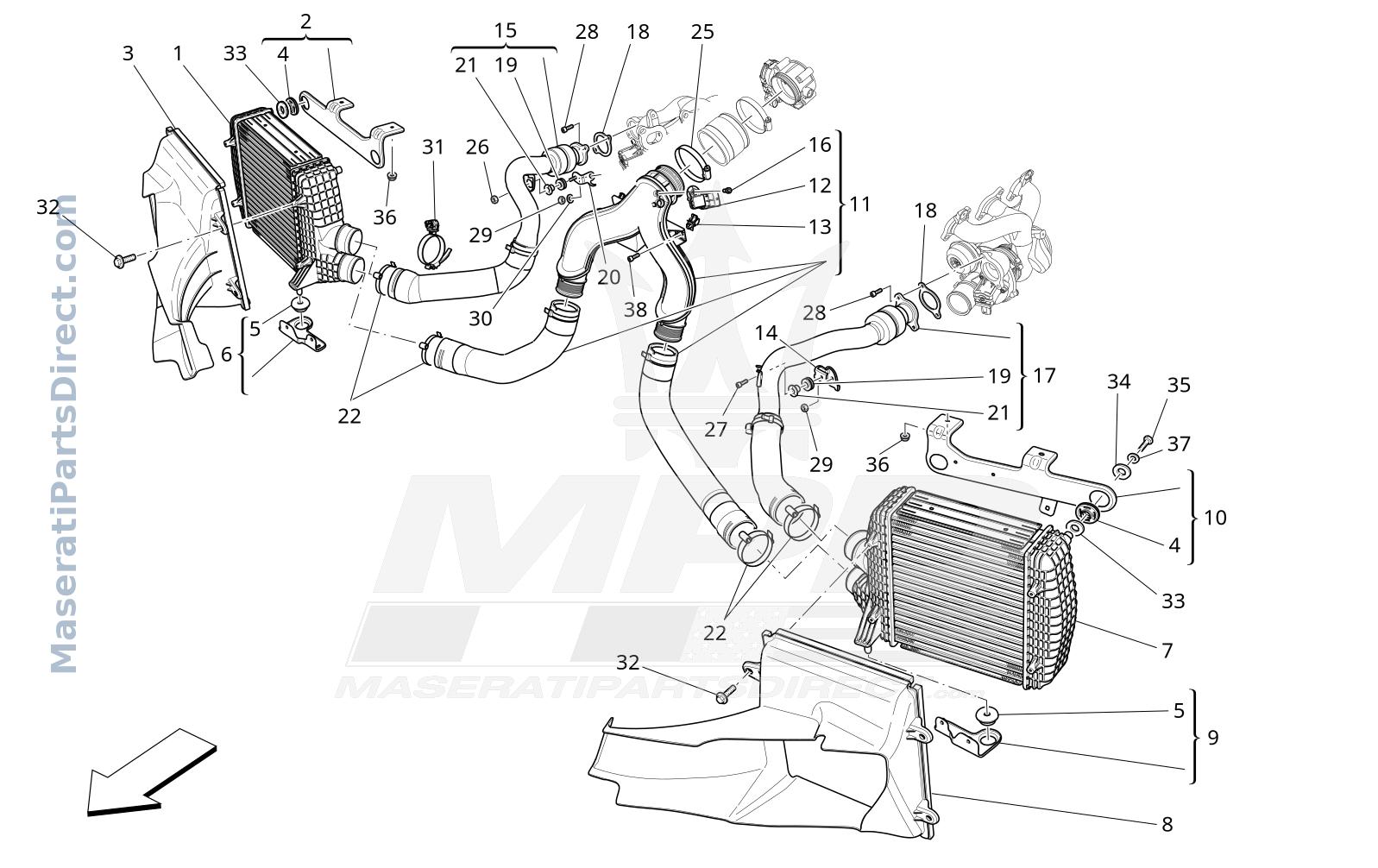

01.32 - 2 - INTERCOOLER SYSTEM

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670039351	RH INTERCOOLERIf Stock = 0 please refer to the Bulletin Intercooler PPD 04/2021 (Bulletin Code MAS002705) , in order to select the correct spare parts needed to repair the vehicle	$0.00 Order
2	670001349	RH BRACKET	$53.90 Order
3	670038774	RH SIDE AIR DUCT	$114.63 Order
4	675000201	FLEXIBLE PAD	$19.15 Order
5	670009556	BUSHING	$10.80 Order
6	670037757	RH LOWER BRACKET ASSEMBLY	$44.69 Order
7	670035636	LH INTERCOOLER	$0.00 Order
8	670038777	LH SIDE AIR DUCT	$149.53 Order
9	670037759	LH LOWER BRACKET ASSEMBLY	$43.66 Order
10	670001348	LH BRACKET	$53.90 Order
11	670039354	AIR INLET SLEEVE ASSEMBLY	$428.06 Order
12	675000248	PRESSURE TRANSMITTER	$214.83 Order
13	670006739	CLIP	$11.55 Order
14	670009370	LH BRACKET	$39.68 Order
15	670101743 Replaced by: #670106006.0	SLEEVE FROM TURBINE TO RH INTERCOOLER	$0.00 Order
15	670106006	SLEEVE FROM TURBINE TO RH INTERCOOLER	$633.41 Order
16	675000190	SCREWM6X20	$14.56 Order
17	670106008	SLEEVE FROM TURBINE TO LH INTERCOOLER	$806.78 Order
18	670006210	GASKET	$11.72 Order
19	675000016	FLEXIBLE PAD	$21.48 Order
20	670104971	RH BRACKET	$23.23 Order
21	675000017	SPACER	$14.56 Order
22	675000362	COLLARD.78	$11.95 In Stock
25	675000685	COLLAR	$14.81 Order
26	14059214	NUTM6	$8.64 Order
27	675000088	SCREWM6X22	$10.22 Order
28	675000104	SCREWM6X25	$7.65 Order
29	14059214	NUTM6	$8.64 Order
30	675000366	WASHERD.6.15-15X1	$11.52 Order
31	670006982	RETAINING CLIP	$10.14 Order
32	675000354	SCREW	$6.93 Order
33	670007293	SPACER	$10.62 Order
34	10902024	SCREWM6X12	$8.64 Order
35	675000409	CUP	$9.24 Order
36	14059214	NUTM6	$8.64 Order
37	675000718	WASHER	$10.00 Order
38	675000088	SCREWM6X22	$10.22 Order
