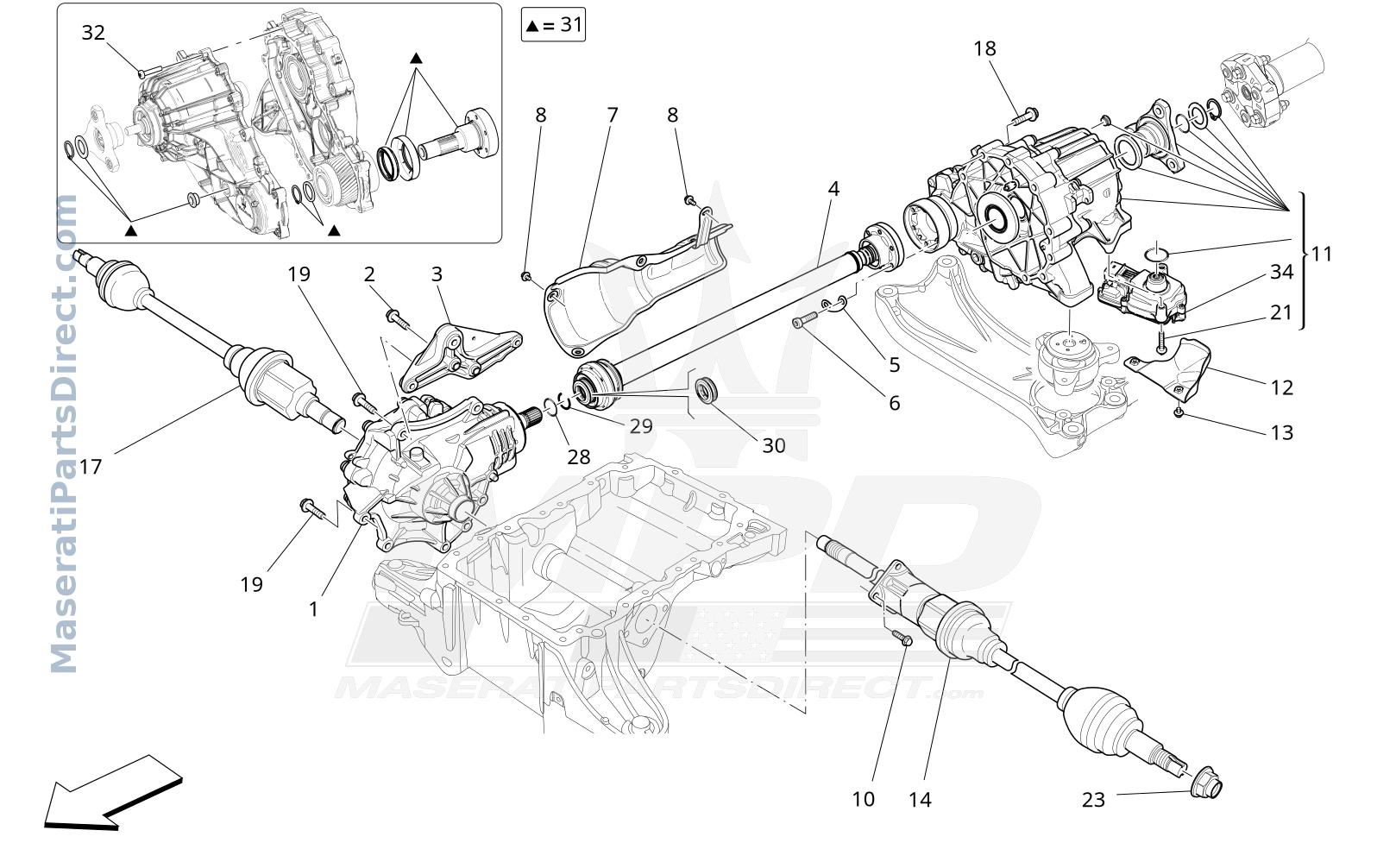

03.22 - 2 - FRONT WHEELS TRANSMISSION

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670038421	FRONT DIFFERENTIAL	$1,612.28 Order
2	14307834	SCREW	$21.72 Order
2	13029034	SCREW	$0.00 Order
2	14307834	SCREW	$21.72 Order
2	14306534	SCREW	$25.23 Order
3	768641	BRACKET	$464.39 Order
4	670031958	FRONT DRIVE SHAFT	$1,718.77 Order
4	670106494 Replaced by: #670107694.0	FRONT DRIVE SHAFT	$0.00 Order
4	670107694	FRONT DRIVE SHAFT	$1,712.84 Order
5	670003772	PLATE	$10.40 Order
6	675000583	SCREW	$9.73 Order
7	670038431	HEAT SHIELD	$0.00 Order
8	675000102	SCREWM6X14	$13.28 Order
10	675000384	SCREWM10X25	$11.55 Order
11	670100396	ALL WHEEL DRIVE TRANSFER CASE	$3,365.80 Order
12	670004015	HEAT SHIELD	$92.28 Order
13	675000102	SCREWM6X14	$13.28 Order
14	670032034	LH AXLE SHAFT ASSEMBLY	$1,328.08 Order
17	670035142 Replaced by: #670301920.0	RH AXLE SHAFT	$0.00 Order
17	670301920	RH AXLE SHAFT	$1,763.91 Order
18	675000386	SCREWM10X60	$8.00 Order
19	675000385	SCREWM10X40	$9.72 Order
21	673009049	SCREW	$0.00 Order
23	675000138	NUT	$19.15 Order
28	673008007	O.R. GASKET	$12.41 Order
29	673008008	LOCK RING	$21.72 Order
30	675000719	GASKET	$11.15 Order
34	670033135	TRANSFER CASE CONTROL UNIT	$0.00 Order
