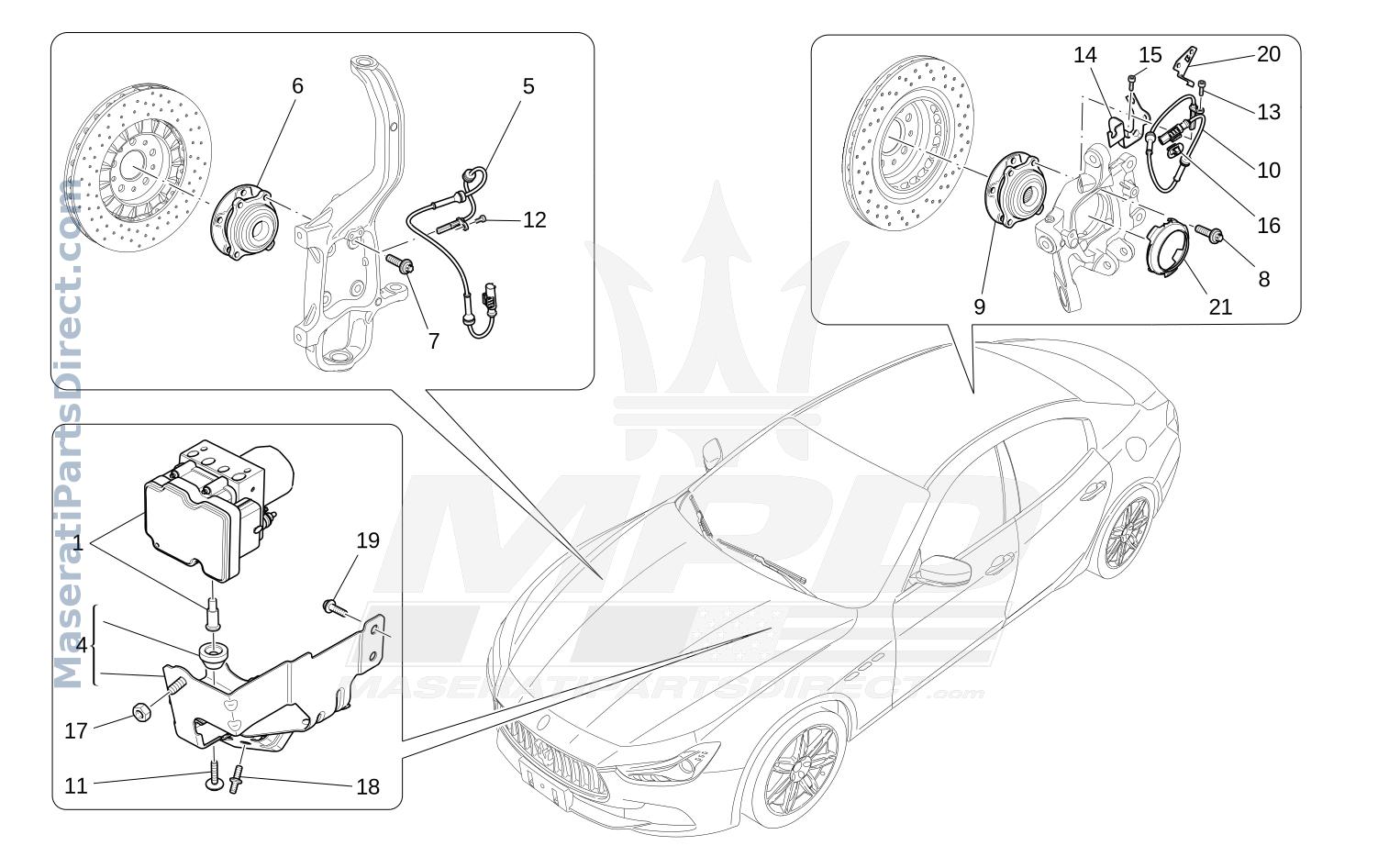

04.90 - 2 - BRAKING CONTROL SYSTEMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	ABS/ASR HYDRAULIC UNIT	$0.00 Order
1	673007251 Replaced by: #673008319	ABS/ASR HYDRAULIC UNIT	$0.00 Order
1	673009004 Replaced by: #673008319	ABS/ASR HYDRAULIC UNIT	$0.00 Order
4	670032075	ABS/ASR HYDRAULIC GROUP FIXING BRACKET	$103.43 Order
5	670037273	FRONT ABS SENSOR	$124.70 Order
6	675000062	WHEEL BEARING ASSEMBLY	$680.76 $578.65 In Stock
7	670006981	SCREW	$10.80 Order
8	670035429	SCREW	$10.40 Order
9	670032030 Replaced by: #670103668	WHEEL BEARING ASSEMBLY	$0.00 Order
9	670103668	WHEEL BEARING ASSEMBLY	$297.54 Order
10	670035289	REAR ABS SENSOR	$95.86 Order
11	675000156	SCREWM6	$13.88 Order
12	675000173	SCREWM6X16	$10.40 Order
13	675000173	SCREWM6X16	$10.40 Order
14	custom	LH BRACKET	$0.00 Order
14	custom	RH BRACKET	$0.00 Order
15	675000173	SCREWM6X16	$10.40 Order
16	675000355	CLIP	$8.64 Order
17	014059314	NUTM8	$0.00 Order
18	675000430	SCREW	$11.95 Order
19	675000387	SCREW	$11.95 Order
20	670036889	LH ABS CABLE BRACKET	$80.35 Order
20	670036875	RH ABS CABLE BRACKET	$79.81 Order
21	670037587	SHIELD	$16.07 Order
