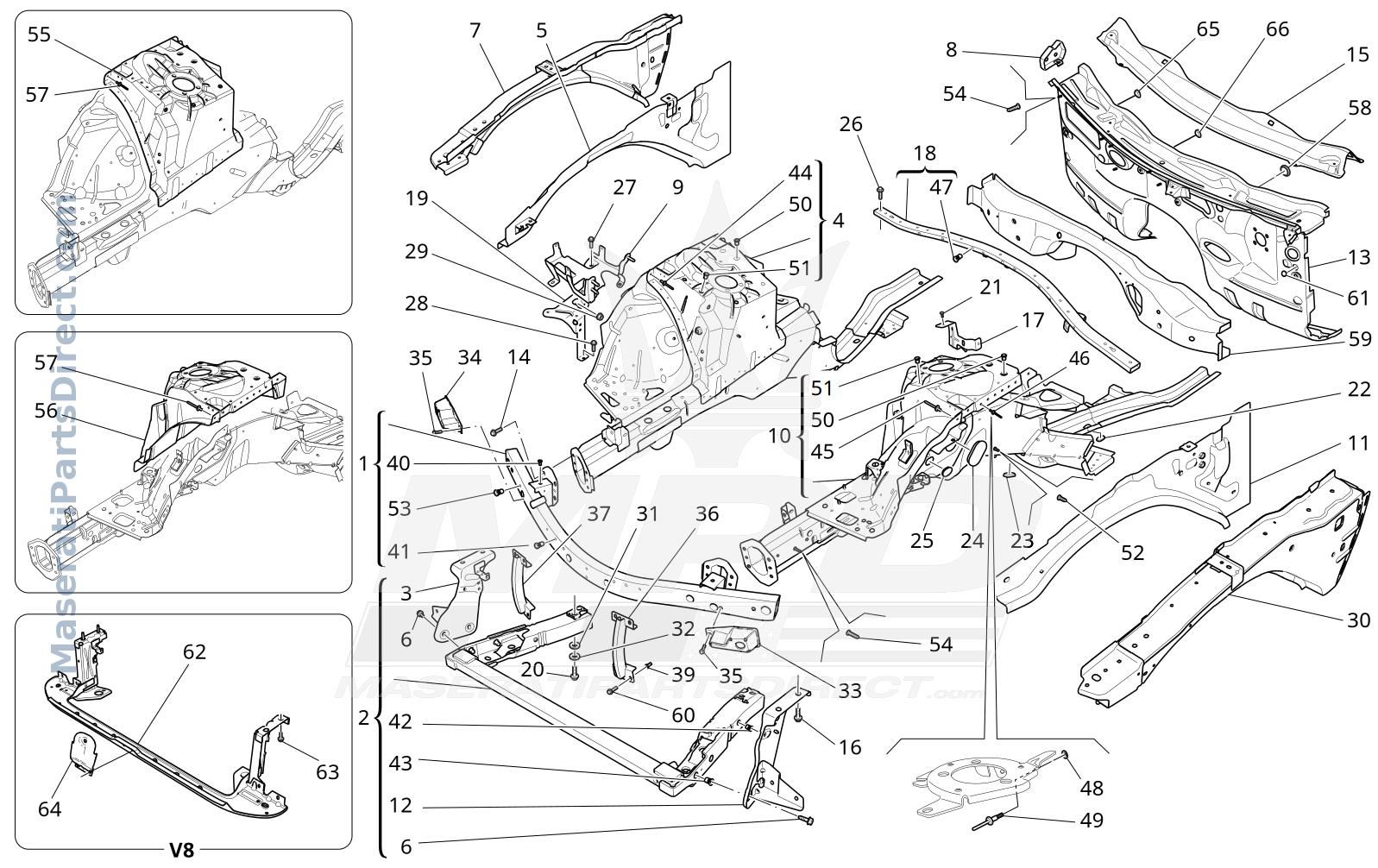

09.03 - 3 - FRONT STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673008134	FRONT CROSS MEMBER ASS.	$536.84 Order
2	670009989	THIRD LOAD PATH CROSS MEMBER	$1,110.59 Order
3	670004899	RH BRACKET	$120.40 Order
4	673008286 Replaced by: #673009228	RH COMPLETE FRONT STRUT	$0.00 Order
4	673009209 Replaced by: #673009228	RH COMPLETE FRONT STRUT	$0.00 Order
4	673009228	RH COMPLETE FRONT STRUT	$2,094.25 Order
5	673001716	COMPLETE RH UPPER STRUT BOX SECTION	$279.93 Order
6	675000469	SCREWM8	$8.28 Order
7	673002754	RH UPPER STRUT	$548.75 Order
8	670039839	DIAPHRAGM	$0.00 Order
9	670036938	FUSE BOX MOUNTING BRACKET	$133.74 Order
9	670104471	FUSE BOX MOUNTING BRACKET	$63.19 Order
10	673008180 Replaced by: #673009229	LH COMPLETE FRONT STRUT	$0.00 Order
10	673009210 Replaced by: #673009229	LH COMPLETE FRONT STRUT	$0.00 Order
10	673009229	LH COMPLETE FRONT STRUT	$2,173.75 Order
11	673001717	COMPLETE LH UPPER STRUT BOX SECTION	$468.05 Order
12	670004902	LH BRACKET	$88.13 Order
13	673004763	LOWER INSTRUMENT PANEL	$828.86 Order
13	673008316	LOWER INSTRUMENT PANEL	$835.81 Order
14	670035227	SCREW AND WASHER	$10.62 Order
15	673000388	WINDSCREEN LOWER CROSS MEMBER	$156.00 Order
16	675000469	SCREWM8	$8.28 Order
17	670004846	24-WAY HOLDER BRACKET	$21.72 Order
18	670037229	SUSPENSION STRUT CONNECTING CROSS MEMBER ASS.	$546.11 Order
20	675000503	SCREWM12X70	$10.48 Order
21	675000556	SCREW	$10.40 Order
22	670036841	ADHESIVE PLUG	$11.08 Order
23	670036841	ADHESIVE PLUG	$11.08 Order
24	670004843	PLUG	$15.89 Order
25	670004844	PLUG	$13.58 Order
26	675000470	SCREW	$7.65 Order
27	675000382	SCREWM6X16	$10.16 Order
28	675000421	SCREW	$23.55 Order
29	675000095	NUTM6	$8.64 Order
30	673002755	LH UPPER STRUT	$503.33 Order
31	675000096	WASHERD.12.2-28X3	$7.65 Order
32	675000105	WASHERD.12X24	$8.28 Order
33	670006560	LH PAD	$196.33 Order
34	670006557	RH PAD	$112.95 Order
35	675000467	SCREWM 8X20	$80.70 Order
36	670038376	LH FRONT CRASH CROSS MEMBER ASSEMBLY	$72.72 Order
37	670038372	RH FRONT CRASH CROSS MEMBER ASSEMBLY	$72.72 Order
39	670002185	THREADED RIVET	$11.10 Order
40	670002185	THREADED RIVET	$11.10 Order
41	675000398	RIVET	$25.23 Order
42	675000398	RIVET	$25.23 Order
43	670002185	THREADED RIVET	$11.10 Order
44	670032695	RIVET	$11.52 Order
45	670032695	RIVET	$11.52 Order
46	670005411	RIVET	$5.58 Order
47	675000398	RIVET	$25.23 Order
48	10519527	WASHER	$11.10 Order
49	670032695	RIVET	$11.52 Order
50	670005395	THREADED RIVET	$6.21 Order
51	670006571	THREADED RIVET	$6.21 Order
52	675000623	WELDED STUDM5X14	$12.11 Order
53	670002185	THREADED RIVET	$11.10 Order
54	675000628	WELDED STUDM6X25	$12.71 Order
55	670107233 Replaced by: #670155028	RH FRONT DOME	$0.00 Order
55	670155028	RH FRONT DOME	$1,233.23 Order
55	670034237 Replaced by: #670155028	RH FRONT DOME	$0.00 Order
56	670107239	LH FRONT DOME	$612.99 Order
56	670034243 Replaced by: #670107239	LH FRONT DOME	$0.00 Order
57	670032695	RIVET	$11.52 Order
58	670030073	PLUG	$9.72 Order
59	673008198	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$566.83 Order
60	675000467	SCREWM 8X20	$80.70 Order
61	670152736	PLUG	$0.00 Order
65	670175361	ADHESIVE PLUG	$0.00 Order
66	670036841	ADHESIVE PLUG	$11.08 Order
