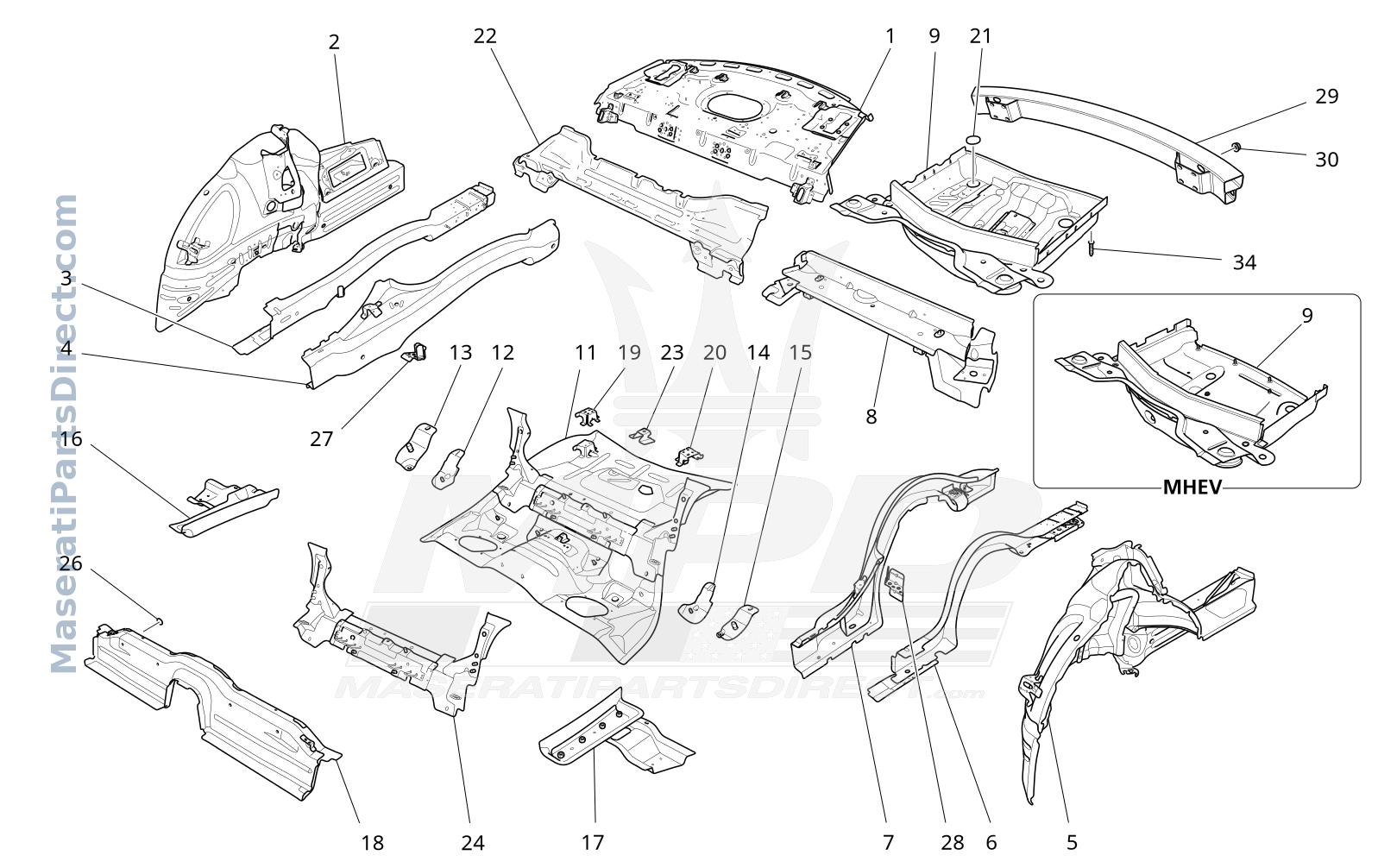

09.05 - 2 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673009302	REAR UNDER WINDOW PANEL ASS.	$626.54 Order
2	673006250 Replaced by: #673009916	RH REAR WHEELHOUSE	$0.00 Order
2	673009046 Replaced by: #673009916	RH REAR WHEELHOUSE	$0.00 Order
2	673009916	RH REAR WHEELHOUSE	$949.35 Order
3	673007578	RH INTERNAL REAR SIDE MEMBER	$498.77 Order
4	673007211 Replaced by: #673009042	RH OUTER REAR SIDE MEMBER	$0.00 Order
4	673009042	RH OUTER REAR SIDE MEMBER	$948.69 Order
5	673006251 Replaced by: #673009915	LH REAR WHEELHOUSE	$0.00 Order
5	673009047 Replaced by: #673009915	LH REAR WHEELHOUSE	$0.00 Order
5	673009915	LH REAR WHEELHOUSE	$948.18 Order
6	673007577	LH INTERNAL REAR SIDE MEMBER	$725.68 Order
7	673007212 Replaced by: #673009043	LH OUTER REAR SIDE MEMBER	$0.00 Order
7	673009043	LH OUTER REAR SIDE MEMBER	$948.69 Order
8	673008183 Replaced by: #673010187	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$0.00 Order
8	673010187	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$685.93 Order
9	673006258	SPARE WHEEL COMPARTMENT	$710.98 Order
11	673005385 Replaced by: #673011107	FRONT SIDE OF REAR FLOOR ASSEMBLY	$0.00 Order
11	673011107	FRONT SIDE OF REAR FLOOR ASSEMBLY	$558.77 Order
12	673000380	RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$620.63 Order
13	673000419	RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$616.08 Order
14	673000381	LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$620.63 Order
15	673000420	LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$616.08 Order
16	673000379	RH GEARBOX SUPPORT SIDE RAIL	$179.87 Order
17	673000382	LH GEARBOX SUPPORT SIDE RAIL	$176.02 Order
17	673009048	LH GEARBOX SUPPORT SIDE RAIL	$189.42 Order
18	673000790	REAR SEAT CROSS MEMBER	$477.16 Order
19	673000436	RH LUGGAGE LATCHING REINFORCEMENT ASS	$123.95 Order
20	673000437	LH LUGGAGE LATCHING REINFORCEMENT ASS	$94.67 Order
21	670005954	PLUG	$13.88 Order
22	673000407	REAR SEAT BACK CROSS MEMBER FRAME	$412.37 Order
23	673001060	REAR BRACKET	$75.27 Order
24	673001059	ISOFIX CROSS MEMBER	$813.93 Order
26	675000244	PLUG	$9.84 Order
27	670007021	RH BRACKET	$1,135.18 Order
28	670007023	LH BRACKET	$1,135.18 Order
29	670004652	REAR CRASH-BOX CROSS MEMBER ASS.	$859.45 Order
30	675000443	NUT	$7.65 Order
34	675000624	WELDED STUD	$8.28 Order
