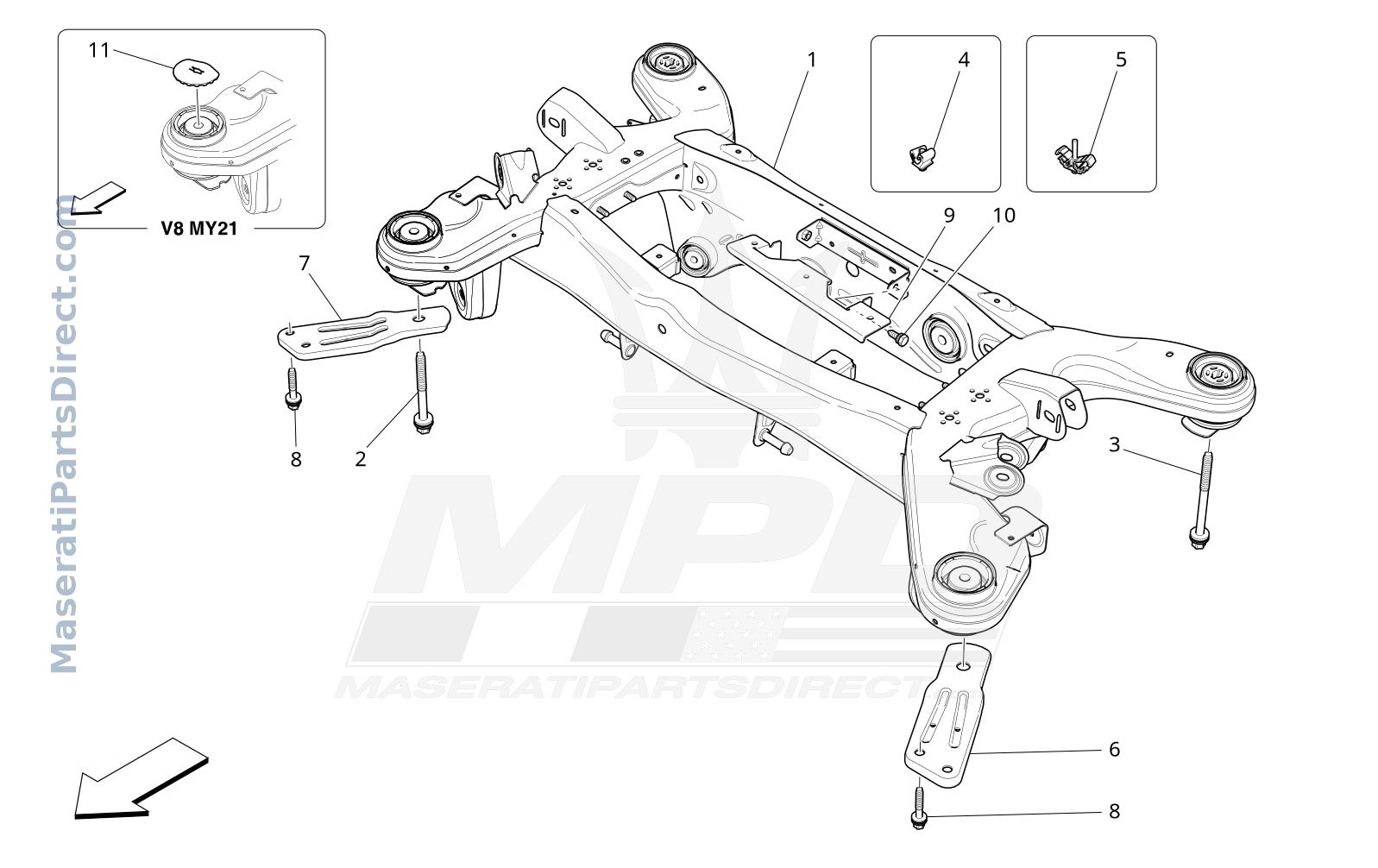

06.22 - 2 - REAR CHASSIS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670106291	REAR CHASSIS ASSEMBLY	$1,449.11 Order
2	670002915	SCREWM14X145	$21.26 Order
3	670002768	SCREW	$24.33 Order
4	675000356	CLIP	$6.93 Order
5	675000072	CLIP	$11.55 Order
6	670007232	LH BRACKET	$28.36 Order
7	670007233	RH BRACKET	$28.36 Order
8	670039843	SCREW	$11.10 Order
9	670039141	BRACKET	$43.44 Order
10	675000438	SCREWM8X22	$10.00 Order
