Ghibli
2019
S
3.0 BT V6 2WD 430 HP AUTOMATIC
Bodywork
09.04 - 1 - CENTRAL STRUCTURAL FRAMES AND SHEET PANELS

09.04 - 1 - CENTRAL STRUCTURAL FRAMES AND SHEET PANELS

Genuine Maserati Parts

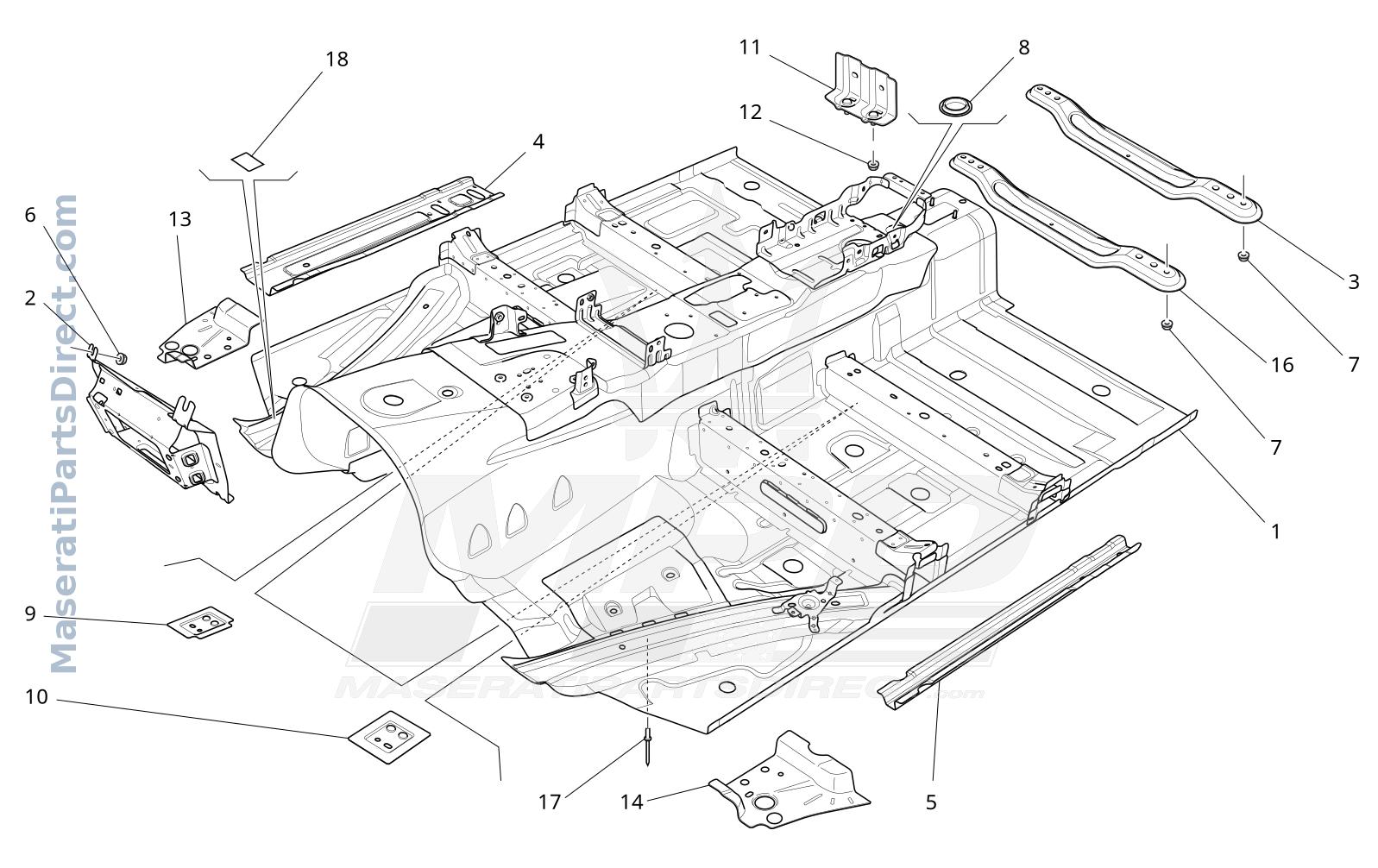

09.04 - 1 - CENTRAL STRUCTURAL FRAMES AND SHEET PANELS Diagram

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price	Qty
1	673009739	CENTRAL FLOOR ASSEMBLY	$6,126.63 Order
2	670039535	BODY COMPUTER SUPPORT BRACKET	$132.81 Order
3	670006640	UNDERFLOOR TUNNEL REAR REINFORCEMENT	$88.01 Order
4	673001720	RH UNDERFLOOR SIDE RAIL	$143.22 Order
5	673001721	LH UNDERFLOOR SIDE RAIL	$122.22 Order
6	675000412	NUT	$9.24 Order
7	14059311	NUTM8	$9.17 Order
8	670006214	PLUG	$11.25 Order
9	670003751	RH PLATE	$100.05 Order
10	670003900	LH PLATE	$103.96 Order
11	673004077	BRACKET KIT	$467.48 Order
12	14059311	NUTM8	$9.17 Order
13	670031919	RH REINFORCEMENT	$52.16 Order
14	670031920	LH REINFORCEMENT	$50.40 Order
16	670006640	UNDERFLOOR TUNNEL REAR REINFORCEMENT	$88.01 Order
17	670037283	RIVET	$11.72 Order
18	675000789	PROTECTIVE FILMS	$12.71 Order

09.04 - 1 - CENTRAL STRUCTURAL FRAMES AND SHEET PANELS
