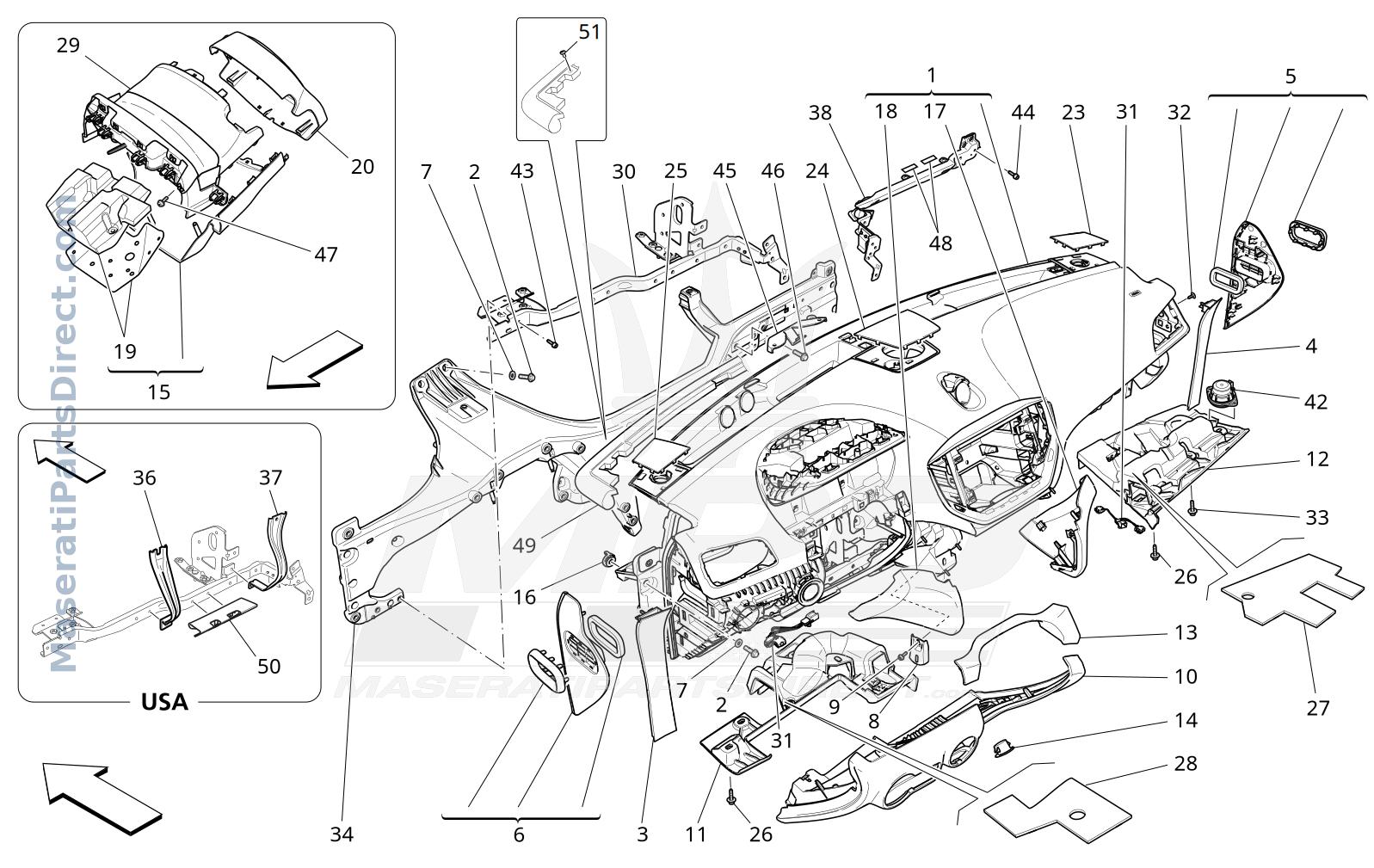

09.50 - 9 - DASHBOARD UNIT

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	DASHBOARD ASSEMBLY	$0.00 Order
2	675000508	SCREWM8X50	$9.73 Order
3	custom	LH SIDE PANEL ANGULAR COVER	$0.00 Order
4	custom	RH SIDE PANEL ANGULAR COVER	$0.00 Order
5	custom	DASHBOARD RH SIDE COVER	$0.00 Order
6	custom	DASHBOARD LH SIDE COVER	$0.00 Order
7	675000177	WASHERD.8.45-25X1.5	$8.64 Order
8	670003667	BRACKET	$15.89 Order
9	675000459	SCREWM8X25	$9.73 Order
10	custom	DASHBOARD LH TRIM ASSEMBLY	$0.00 Order
11	custom	LH UNDERDASHBOARD COVER	$0.00 Order
12	custom	RH UNDERDASHBOARD COVER	$0.00 Order
13	custom	STEERING COLUMN UPPER GUARD	$0.00 Order
14	custom	TEMPERATURE SENSOR TRIM	$0.00 Order
15	custom	COMPLETE STEERING COLUMN LOWER GUARD	$0.00 Order
16	675000418	ADJUSTER BUSHING	$15.09 Order
17	custom	RH LOWER TRIM	$0.00 Order
18	custom	LH LOWER TRIM	$0.00 Order
19	custom	SHOCK ABSORBING MATERIAL AND PLATE	$0.00 Order
20	custom	STEERING COLUMN FRONT GUARD	$0.00 Order
23	custom	RH SIDE TWEETER GRILL ASSEMBLY	$0.00 Order
24	custom	CENTRAL LOUD SPEAKER GRILL	$0.00 Order
25	custom	LH SIDE TWEETER GRILL ASSEMBLY	$0.00 Order
26	670009437	SCREW	$9.84 Order
27	670009263	RH SOUNDPROOFING ELEMENT	$52.55 Order
28	670009262	LH SOUNDPROOFING ELEMENT	$0.00 Order
29	custom	STEERING COLUMN BELLOWS	$0.00 Order
30	670005267	BRACKET	$0.00 Order
31	670105157	COURTESY LIGHT BULB	$60.23 Order
32	675000497	SCREW	$11.10 Order
33	670031617	SCREW	$25.23 Order
34	670003676	DASHBOARD CROSS MEMBER	$593.29 Order
36	670006086	LH BRACKET	$0.00 Order
37	670006085	RH BRACKET	$0.00 Order
38	670030560	BRACKET	$0.00 Order
43	675000242	SCREWM6X25	$11.52 Order
44	675000242	SCREWM6X25	$11.52 Order
45	670005034	BRACKET	$0.00 Order
46	675000088	SCREWM6X22	$10.22 Order
47	675000768	SCREW	$9.72 Order
48	675000401	FELT	$6.93 $5.89 In Stock
49	670106059	GASKET	$187.18 Order
49	670154108	GASKET	$179.06 Order
50	670007414	LH FRONT ABSORBER	$0.00 Order
51	670154109	FASTENER BUTTON	$0.00 Order
