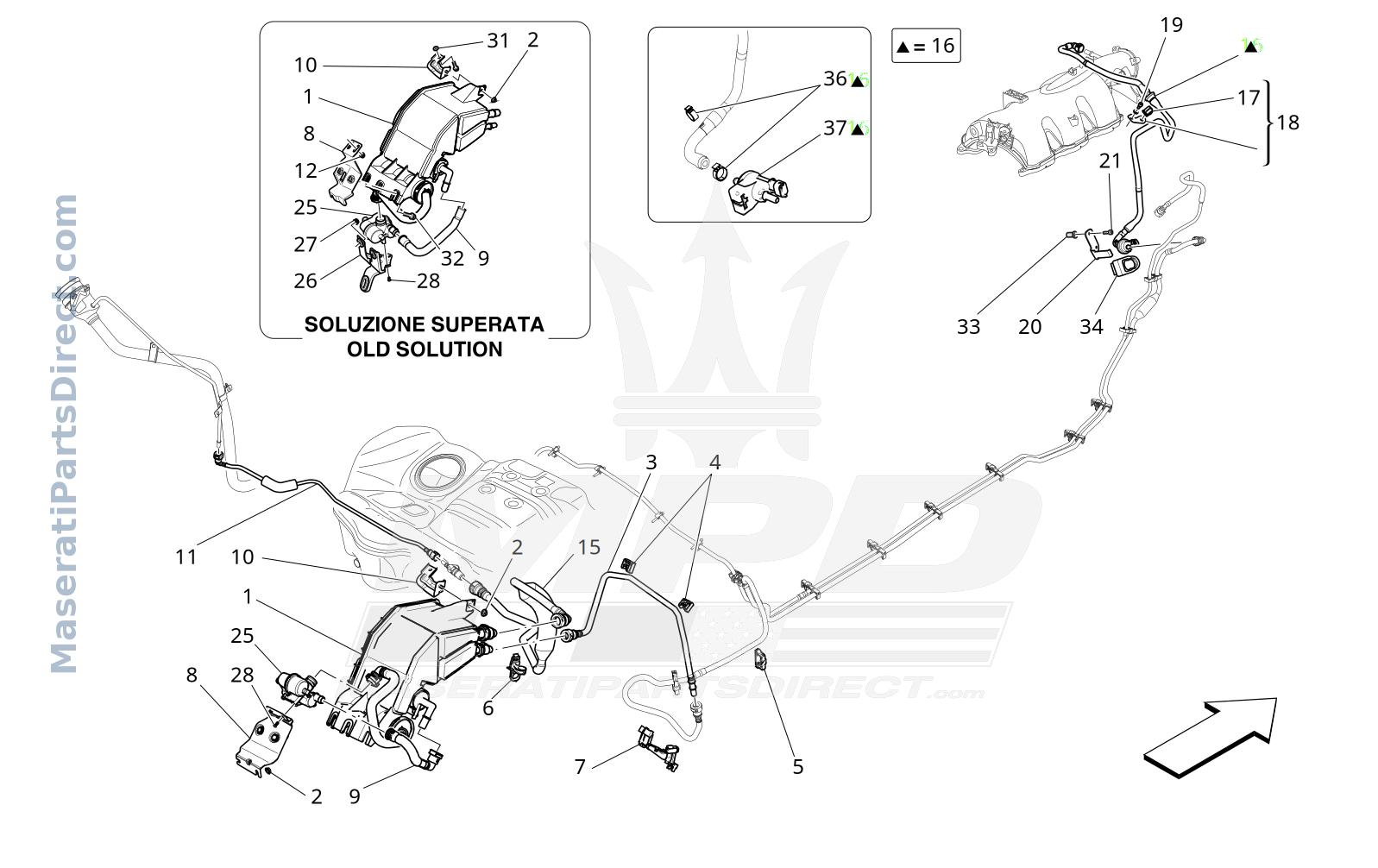

01.44 - 6 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670036928	FUEL VAPOUR FILTER	$148.26 In Stock
2	675000095	NUTM6	$8.64 Order
3	670105545	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$75.67 Order
4	670033289	CLIP	$13.88 Order
5	675000790	CLIP	$0.00 Order
6	670100038	BRACKET	$13.88 Order
7	670106064	CLIP	$0.00 Order
8	670101522	REAR BRACKET	$53.43 Order
9	670108533	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$66.37 Order
10	670036933	BRACKET	$0.00 Order
11	670005215	VAPOUR PIPE	$71.72 Order
12	675000095	NUTM6	$8.64 Order
15	670036929	VENT PIPE	$243.21 Order
16	670161425	PIPE BETWEEN UNION AND INTAKE MANIFOLD	$215.60 Order
17	675000132	CLIP	$6.93 Order
18	670005045	BRACKET ASSEMBLY	$23.23 Order
19	675000191	SCREWM6X14	$11.55 Order
20	670007135	BRACKET	$15.89 Order
21	675000242	SCREWM6X25	$11.52 Order
25	670002246	DIAGNOSTICS PUMP	$197.91 In Stock
26	670001415	REAR CONSOLE REAR BRACKET	$65.27 Order
27	675000114	NUT	$8.00 Order
28	675000195	SCREWM5X12	$10.00 Order
31	670100665	WASHER	$0.00 Order
32	675000436	SCREW	$11.10 Order
33	675000576	RIVET	$8.64 Order
34	670007319	FLEXIBLE PAD	$22.52 Order
36	675001978	COLLAR	$10.00 Order
37	673016769	CANISTER VALVE	$70.49 In Stock
