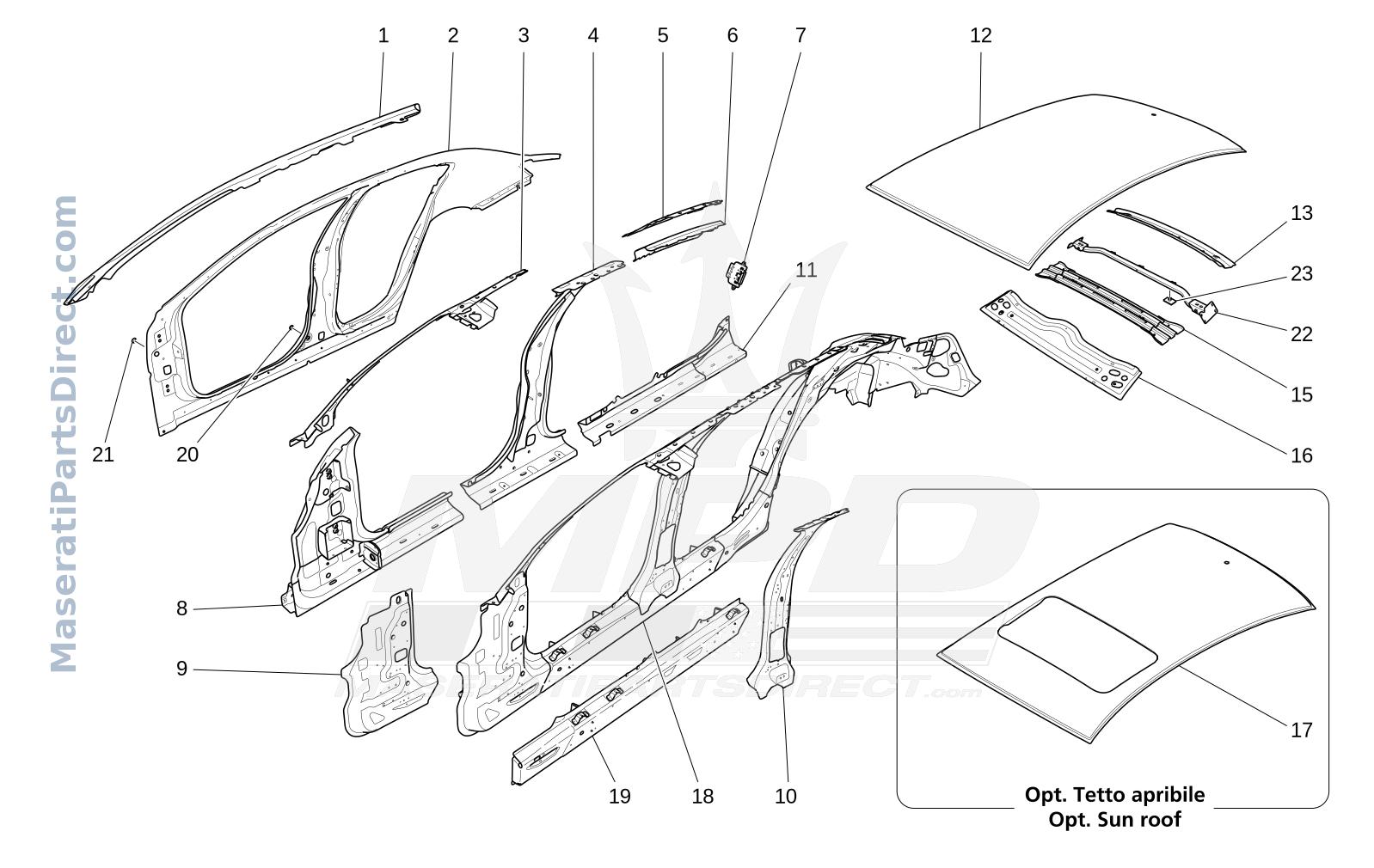

09.01 - 1 - BODYWORK AND CENTRAL OUTER TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673000412	LH FRONT PILLAR MEMBER REINFORCEMENT	$642.02 Order
1	673000406	RH FRONT PILLAR MEMBER REINFORCEMENT	$290.77 Order
2	673001679	LH EXTERNAL BODY SIDE ASSEMBLY	$5,500.41 Order
2	673001678	RH EXTERNAL BODY SIDE ASSEMBLY	$5,500.41 Order
3	673000398	LH FRONT PILLAR SIDE RAIL ASSEMBLY	$242.00 Order
3	673005317	RH FRONT PILLAR SIDE RAIL ASSEMBLY	$242.00 Order
4	673002866	LH CENTRAL PILLAR REINFORCEMENT ASS.	$1,460.97 Order
4	673007573	RH CENTRAL PILLAR REINFORCEMENT ASS.	$1,483.15 Order
5	673001681	LH REAR UPPER SIDE RAIL ASSEMBLY	$97.24 Order
5	673001680	RH REAR UPPER SIDE RAIL ASSEMBLY	$97.24 Order
6	673001683	LH UPPER REAR BEAM REINFORCEMENT	$153.54 Order
6	673001682	RH UPPER REAR BEAM REINFORCEMENT	$145.84 Order
7	673001685	LH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	$134.60 Order
7	673001684	RH REAR DOOR STRIKER PLATE CONNECTION REINFORCEMENT	$134.60 Order
8	673010778	LH FRONT PILLARE REINFORCEMENT	$1,492.22 Order
8	673010777	RH FRONT PILLAR REINFORCEMENT	$1,611.54 Order
9	673004675	LH INTERNAL BODY SIDE FRAME ASSEMBLY	$373.69 Order
9	673004674	RH INTERNAL BODY SIDE FRAME ASSEMBLY	$302.81 Order
10	673001690	LH CENTRAL PILLAR FRAME	$704.15 Order
10	673001689	RH CENTRAL PILLAR FRAME	$1,314.94 Order
11	673001692	LH B-PILLAR LOWER FRAMEWORK CONNECTION	$477.33 Order
11	673001691	RH B-PILLAR LOWER FRAMEWORK CONNECTION	$477.33 Order
12	673001693	ROOF EXTERNAL TRIM	$2,876.22 Order
13	673001694	ROOF PANEL REAR CROSS MEMBER	$130.88 Order
15	673002948	ROOF PANEL CENTRAL RIB ASSEMBLY	$132.30 Order
16	673002865	WINDSCREEN UPPER CROSS MEMBER ASSEMBLY	$301.45 Order
17	673010441	ROOF EXTERNAL TRIM	$1,051.56 Order
18	673009417	LH BODY SIDE FRAME ASSEMBLY	$5,571.18 Order
18	673007927	RH BODY SIDE FRAME ASSEMBLY	$0.00 Order
19	673001703	LH SIDE MEMBER ASSEMBLY	$777.05 Order
19	673001701	RH SIDE MEMBER ASSEMBLY	$727.83 Order
20	675000244	PLUG	$9.84 Order
21	670031350	PLUG	$11.25 Order
22	670030441	CENTRAL CROSS MEMBER	$279.48 Order
23	670030410	CLIP	$0.00 Order
