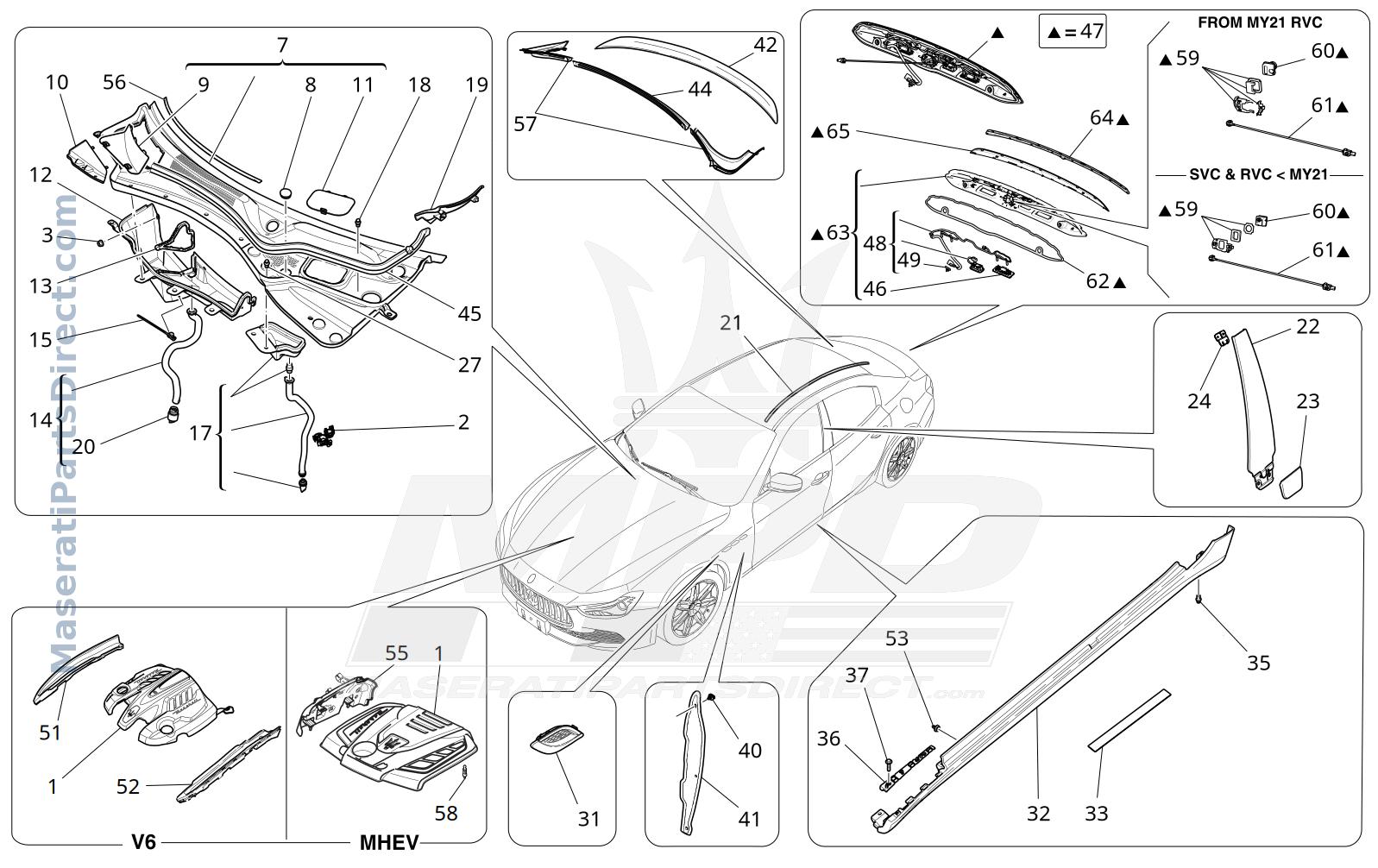

09.15 - 1 - SHIELDS, TRIMS AND COVERING PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670032481	ENGINE COVER ON INTAKE MANIFOLD	$749.30 Order
2	675001446	CLIP	$0.00 Order
3	675000442	NUT	$5.58 Order
6	670006846	SCREWM 6X16	$6.21 $5.28 In Stock
7	custom	UNDER WINDSCREEN PLATE	$0.00 Order
8	675000311	PLUG	$13.88 Order
9	custom	RH UNDER WINDSCREEN PLATE	$0.00 Order
10	custom	RH INSPECTION DOOR	$0.00 Order
11	670013428	LH INSPECTION DOOR	$43.17 Order
12	670106753	STEP ASSEMBLY	$313.49 Order
13	670004127	WATER GUARD GRILL	$52.55 Order
14	670107854	RH WATER OUTLET SLEEVE	$0.00 Order
15	670005402	CLAMP	$0.00 Order
18	675000150	FASTENER BUTTON	$6.21 In Stock
19	custom	LH PLATE	$0.00 Order
19	custom	LH PLATE	$0.00 Order
20	670006052	NON RETURN VALVE	$52.68 Order
21	670010747	LH ROOF MOULDING ASSEMBLY	$369.31 Order
21	670010746	RH ROOF MOULDING ASSEMBLY	$369.31 Order
22	custom	LH CENTRAL PILLAR MOULDING	$0.00 Order
22	custom	RH CENTRAL PILLAR MOULDING	$0.00 Order
23	custom	LH PILLAR MOULDING COVER	$0.00 Order
23	custom	LH PILLAR MOULDING COVER	$0.00 Order
24	670107687	BRACKET	$23.66 Order
27	675000150	FASTENER BUTTON	$6.21 In Stock
31	custom	LH LATERAL AIR VENT	$0.00 Order
31	custom	RH LATERAL AIR VENT	$0.00 Order
32	673010781	LH SIDE SKIRT	$3,791.03 Order
32	673010782	RH SIDE SKIRT	$3,791.03 Order
33	custom	FRONT KICK PLATE	$0.00 Order
35	675000058	FASTENER BUTTON	$10.76 Order
36	670006111	SIDE SKIRT RH MOUNTING BRACKET	$18.06 Order
36	670006112	SKIRT LH MOUNTING BRACKET	$18.06 Order
37	675000111	SCREW	$10.62 $9.03 In Stock
40	675000058	FASTENER BUTTON	$10.76 Order
41	670001705	LH MUDGUARD COVER	$59.68 Order
41	670001706	RH MUDGUARD COVER	$110.29 Order
44	670004382	BOOT CENTRAL CABLE GUIDE COVER	$59.85 Order
45	670002093	GASKET	$106.97 Order
46	673001401	LICENSE PLATE LIGHT ASSEMBLY	$106.08 Order
47	custom	LIGHT BAR WITH REAR PARKING CAMERA	$0.00 Order
47	custom	LIGHT BAR WITHOUT REAR PARKING CAMERA	$0.00 Order
48	673007902	MICROSWITCH REPLACEMENT KIT	$283.20 Order
49	673000066	FASTENER BUTTON	$59.68 Order
53	673003779	PIN	$11.25 Order
54	673011024	RVC WIRING KIT	$0.00 Order
54	673007903	SVC WIRING KIT	$0.00 Order
57	673013153	CABLE GUIDE KIT	$294.44 Order
58	675000971	BALL PIN	$16.17 Order
59	custom	CAMERA FIXING KIT	$0.00 Order
60	custom	CAMERA	$0.00 Order
61	custom	REAR CAMERA CABLE	$0.00 Order
62	673017446	GASKET	$0.00 Order
63	custom	KIT LIGHT BAR BODY	$0.00 Order
64	custom	TRIM PLATE	$0.00 Order
65	670171950	PRIMED BAND	$0.00 Order
