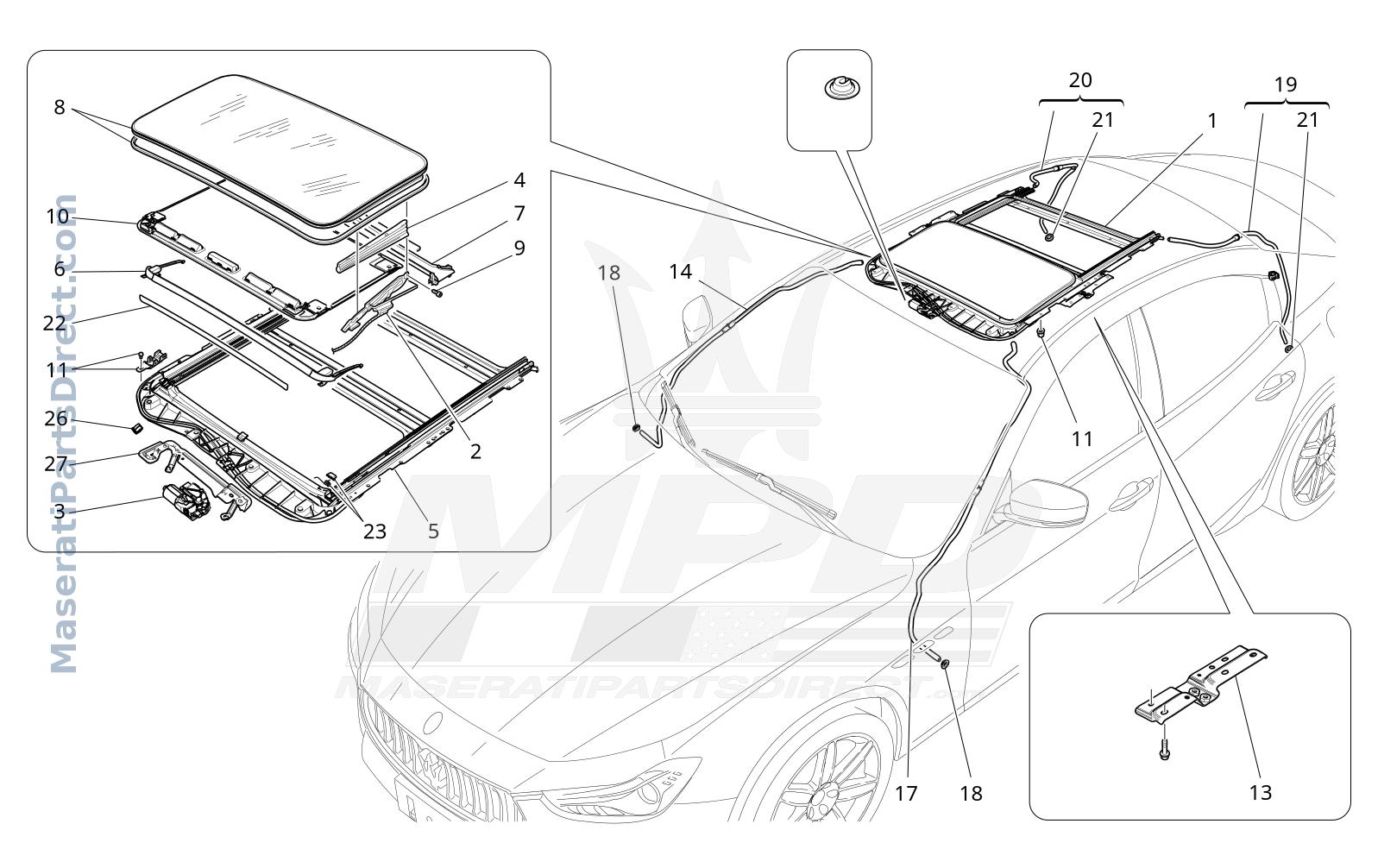

09.71 - 1 - SUNROOF

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	SUNROOF ASSEMBLY	$0.00 Order
2	980139304	LH DEVICE	$298.81 Order
2	980139303	RH DEVICE	$82.70 Order
3	673000063	GEAR MOTOR	$771.13 Order
4	980139307	LH OPENING DEVICE GUARD	$159.04 Order
4	980139306	RH OPENING DEVICE GUARD	$159.04 Order
5	673008102	SUNROOF FRAME	$1,027.32 Order
6	673000051	DEFLECTOR	$454.86 Order
7	980139310	SUNROOF GUIDE RAIL ASSEMBLY WITH BRACKETS	$146.01 Order
8	673009009	COMPLETE GLASS	$944.74 Order
9	980139314	SCREWM3x8	$61.40 Order
10	custom	SUN SCREENBlack	$0.00 Order
10	custom	SUN SCREENBeige	$0.00 Order
10	custom	SUN SCREENGrey	$0.00 Order
11	673000442	FASTENING CLIP KIT	$64.90 Order
13	670030312	LH CENTRAL BRACKET	$61.03 Order
13	670030311	RH CENTRAL BRACKET	$61.03 Order
14	670003339	RH FRONT WATER DRAIN PIPE	$76.00 Order
17	670003340	LH FRONT WATER DRAIN PIPE	$76.00 Order
18	670031349	PLUG	$10.14 Order
19	670031338	LH REAR WATER DRAIN PIPE	$114.31 Order
20	670031337	RH REAR WATER DRAIN PIPE	$114.31 Order
21	670005386	RUBBER	$25.46 Order
22	670102014	ADHESIVE GASKET	$31.03 Order
23	673009181	COVERS AND SPRINGS KIT	$181.08 Order
24	675000783	SCREW	$0.00 Order
25	675000784	RIVET	$9.20 Order
27	670159319	BRACKET	$0.00 Order
