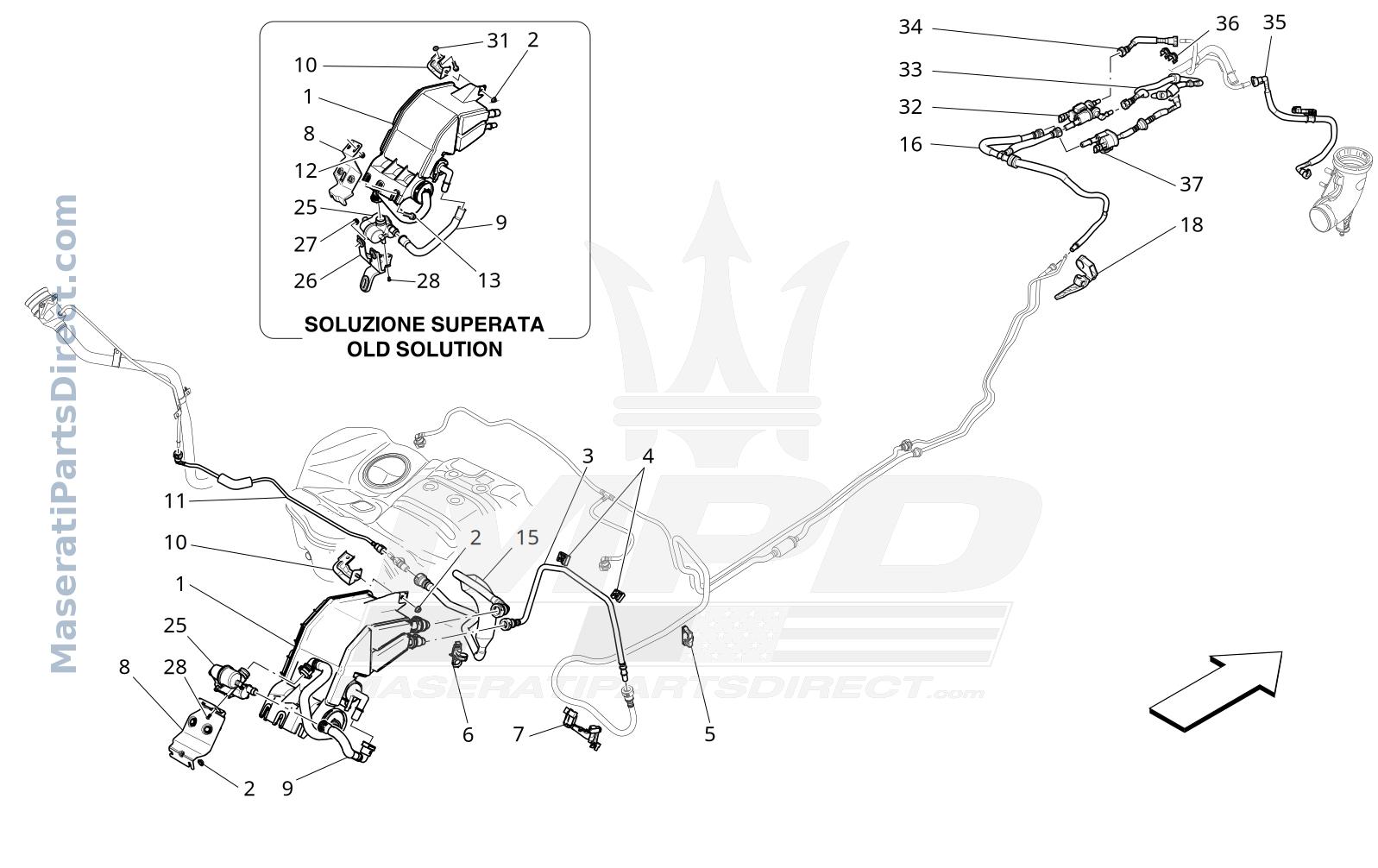

01.44 - 9 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	670036928	FUEL VAPOUR FILTER	$148.26 In Stock
1	670215489	FUEL VAPOUR FILTER	$218.07 In Stock
2	675000095	NUTM6	$8.64 Order
2	675000095	NUTM6	$8.64 Order
3	670175038	PIPE FROM FUEL VAPOUR FILTER TO UNDERFLOOR	$0.00 Order
4	670033289	CLIP	$13.88 Order
5	670033279	CLIP	$12.71 Order
6	670100038	BRACKET	$13.88 Order
7	670106064	CLIP	$0.00 Order
8	670101522	REAR BRACKET	$53.43 Order
8	670217369	REAR BRACKET	$22.52 Order
9	670108533	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$66.37 Order
9	670216814	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$69.11 Order
10	670036933	BRACKET	$0.00 Order
11	670005215	VAPOUR PIPE	$71.72 Order
12	675000095	NUTM6	$8.64 Order
13	675000436	SCREW	$11.10 Order
15	670036929	VENT PIPE	$243.21 Order
16	670153393	PIPE BETWEEN UNION AND INTAKE MANIFOLD	$216.52 Order
18	670104126	BRACKET ASSEMBLY	$0.00 Order
25	670002246	DIAGNOSTICS PUMP	$197.91 In Stock
26	670001415	REAR CONSOLE REAR BRACKET	$65.27 Order
27	675000095	NUTM6	$8.64 Order
28	675000195	SCREWM5X12	$10.00 Order
31	670100665	WASHER	$0.00 Order
32	670162028	SOLENOID VALVE	$86.86 In Stock
33	670153395	PIPE FROM SOLENOID VALVE TO ENGINE	$248.93 Order
34	670153394	PIPE FROM SOLENOID VALVE TO CLEAN AIR SLEEVE PIPE	$117.50 Order
35	670153397	VAPOUR PIPE FROM PIPE TO CLEAN AIR SLEEVE	$377.00 Order
36	670104150	CLIP	$0.00 Order
37	670153396	PIPE FROM SLEEVE PIPE TO VALVE	$209.59 Order
