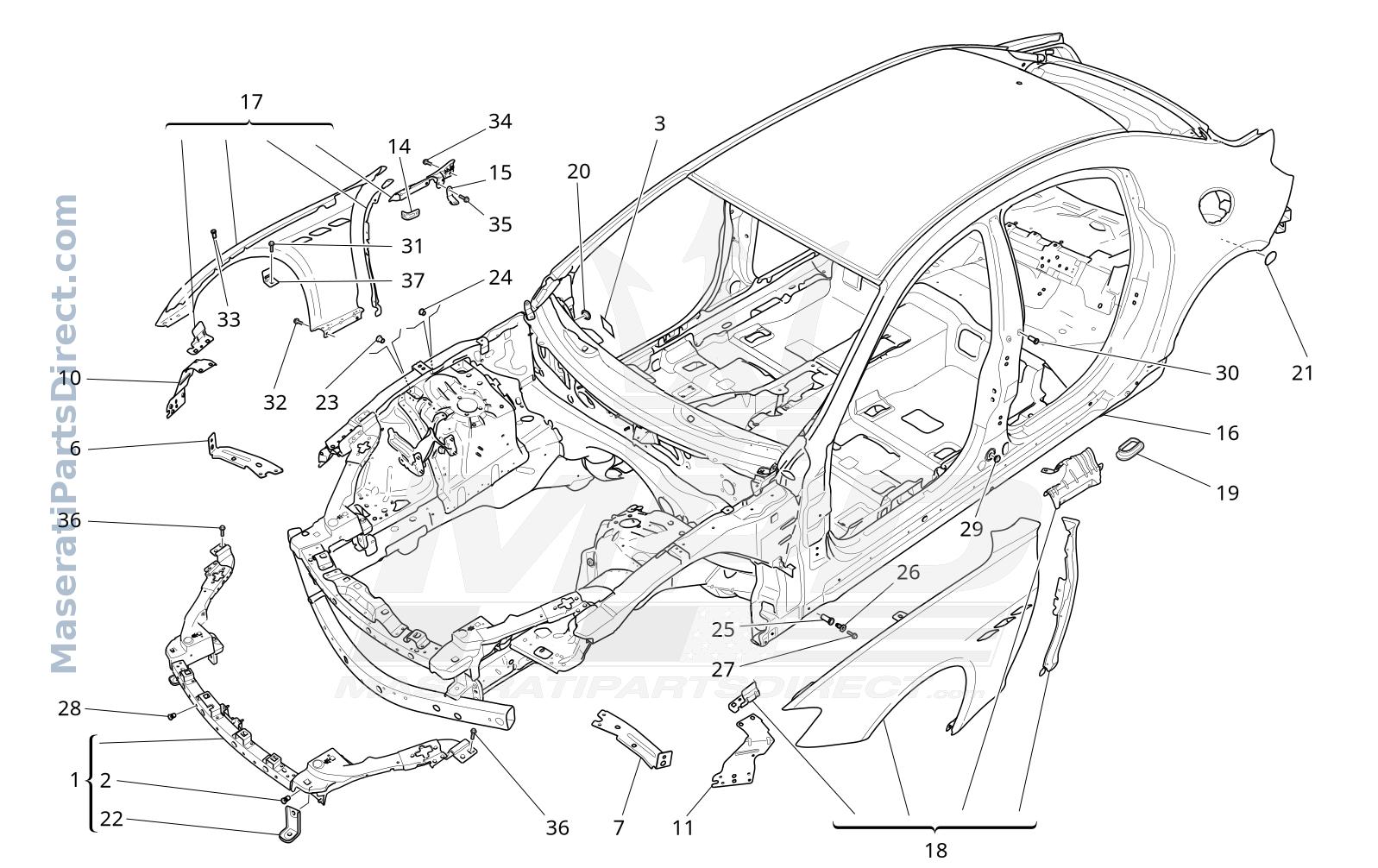

09.00 - 1 - BODYWORK AND FRONT OUTER TRIM PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673010857	FRONT CROSS MEMBER ASS.	$1,382.93 Order
2	675000399	RIVET	$12.30 Order
3	675000747	PROTECTION	$13.58 Order
6	673003653	RH MUDGUARD SUPPORT BRACKET	$119.36 Order
7	673003652	LH MUDGUARD SUPPORT BRACKET	$119.36 Order
10	673002588	RH MUDGUARD FRONT LOWER REINFORCEMENT	$59.68 Order
11	673002589	LH MUDGUARD FRONT LOWER REINFORCEMENT	$60.03 Order
14	673000794	MUDGUARD SIDE BRACKET	$49.28 Order
15	673000795	LH MUDGUARD CENTRAL MOUNTING BRACKET	$46.14 Order
15	673000796	RH MUDGUARD CENTRAL MOUNTING BRACKET	$46.14 Order
17	673002042	FRONT RH MUDGUARD ASSEMBLY	$1,470.22 Order
18	673002041	FRONT LH MUDGUARD ASSEMBLY	$1,470.22 Order
19	675000415	PLUG	$48.65 Order
19	670036842	PLUG	$6.93 In Stock
20	675000316	PLUG	$8.28 Order
21	custom	PLUG	$0.00 Order
22	670003856	BRACKET	$40.96 Order
23	670003669	RIVET	$6.21 Order
24	670005411	RIVET	$5.58 Order
25	670005223	RIVET	$20.48 Order
26	670006065	ADJUSTABLE INSERT	$11.52 Order
27	670005287	SCREW	$6.21 Order
28	670002185	THREADED RIVET	$11.10 Order
29	675000244	PLUG	$9.84 Order
30	675000715	RIVET	$7.65 Order
31	675000588	SCREW	$7.65 Order
32	670005287	SCREW	$6.21 Order
33	675000686	RIVET	$6.93 Order
34	675000605	SCREW	$9.20 Order
35	675000751	SCREW	$9.24 Order
36	670005314	SCREW	$8.28 Order
37	673010188	BRACKET	$48.65 Order
