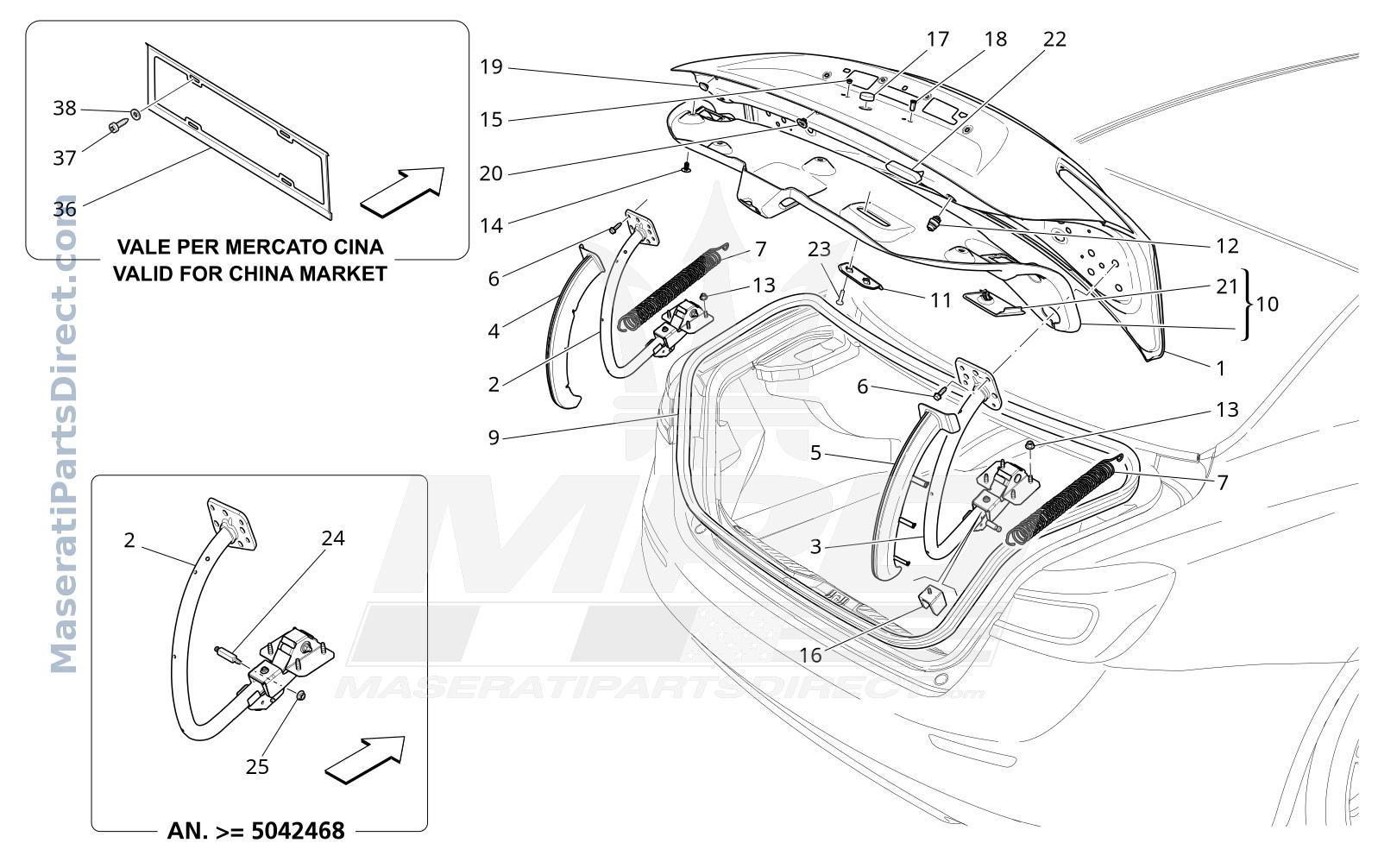

09.21 - 1 - REAR LID

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673004651	BOOT LID	$0.00 Order
2	670032970	REAR LEFT BOOT LID HINGE	$526.32 Order
3	670009222	REAR RIGHT BOOT LID HINGE	$217.37 Order
4	custom	LH HINGE COVER	$0.00 Order
5	custom	RH HINGE COVER	$0.00 Order
6	675000113	SCREW	$7.65 Order
7	670006268	BOOT LID SPRING	$217.37 Order
9	670033871	GASKET	$170.41 Order
10	custom	BOOT LID COVER	$0.00 Order
11	670108335	HANDLE	$22.35 Order
12	670152943	ANTIVIBRATING PAD	$13.28 Order
13	675000092	NUT	$8.28 Order
14	custom	FASTENER BUTTON6,5X18	$0.00 Order
15	675000022	BLOCK	$18.06 In Stock
16	670009379	PAD	$31.92 Order
17	675000516	RUBBER DAMPER	$7.65 Order
18	670005149	RIVET	$10.62 Order
19	675000528	SIDE PLUG	$7.65 Order
20	675000529	PLUG	$12.30 Order
21	custom	LH DOOR	$0.00 Order
21	custom	LH DOOR	$0.00 Order
22	670032463	RUBBER LIMIT STOP	$20.51 Order
23	13299877	SCREWM5X25	$9.20 Order
24	670032965	PIN	$12.71 Order
25	675000443	NUT	$7.65 Order
