| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 0 | 670159332 | ENGINE ASSEMBLY |
$0.00
Order
|
|
|
| 1 | 767001 | ENGINE BLOCK |
$0.00
Order
|
|
|
| 1 | 767001 | ENGINE BLOCK |
$0.00
Order
|
|
|
| 1 | 295334 | ENGINE BLOCK |
$6,069.26
Order
|
|
|
| 3 | 275361 | BASE SHIELD |
$210.56
Order
|
|
|
| 4 | 670003630 | HIGH LINK ROD |
$188.36
Order
|
|
|
| 5 | 675000146 | SCREWM12X80 |
$13.58
Order
|
|
|
| 6 | 670003629 | LH ENGINE BUSHING |
$425.29
Order
|
|
|
| 6 | 670003628 | RH ENGINE BUSHING |
$425.29
Order
|
|
|
| 7 | 670038507 | SCREW |
$21.52
Order
|
|
|
| 8 | 670103084 | SCREW |
$14.14
Order
|
|
|
| 9 | 670103084 | SCREW |
$14.14
Order
|
|
|
| 10 | 670035412 | SCREW |
$11.72
Order
|
|
|
| 11 | 675000247 | WASHERD.10.2-25X3 |
$9.73
Order
|
|
|
| 13 | - | SCREWM11INCLUDED IN THE ENGINE BLOCK |
$0.00
Order
|
|
|
| 14 | 10337710 | STUD |
$16.70
Order
|
|
|
| 16 | 670007404 | CABLE FOR ENGINE-FRAME EARTH |
$186.10
Order
|
|
|
| 17 | 165351 | CENTERING DOWEL |
$18.59
Order
|
|
|
| 17 | 300476 | CENTERING DOWEL |
$18.87
Order
|
|
|
| 18 | 275360 | SCREWM8 |
$21.03
Order
|
|
|
| 19 | 279025 | CENTERING DOWEL |
$243.36
Order
|
|
|
| 20 | - | PLUGTEMPORARILY UNAVAILABLE, PLEASE ORDER COMPLETE ASSEMBLY THAT INCLUDES THIS SPECIFIC PART. |
$0.00
Order
|
|
|
| 21 | 282607 | SCREWM8X40 |
$15.89
Order
|
|
|
| 21 | - | SCREWM8X58TEMPORARILY UNAVAILABLE, PLEASE ORDER COMPLETE ASSEMBLY THAT INCLUDES THIS SPECIFIC PART. |
$0.00
Order
|
|
|
| 22 | 313719 | THREADED PLUG WITH COPPER WASHER |
$137.39
Order
|
|
|
| 23 |
282514
Replaced by: #306027.0
|
STUD |
$0.00
Order
|
|
|
| 23 | 306027 | STUD |
$43.04
Order
|
|
|
| 24 | 185360 | CENTERING DOWEL |
$23.23
Order
|
|
|
| 25 | 290976 | STUD |
$23.43
Order
|
|
|
| 25 | 303590 | STUD |
$23.79
Order
|
|
|
| 26 | 303589 | STUD |
$23.10
Order
|
|
|
| 27 | 10337710 | STUD |
$16.70
Order
|
|
|
| 28 |
327702
Replaced by: #335495.0
|
REAR PLATE |
$0.00
Order
|
|
|
| 28 | 275289 | REAR PLATE |
$205.90
Order
|
|
|
| 28 | 275289 | REAR PLATE |
$205.90
Order
|
|
|
| 28 | 335495 | REAR PLATE |
$207.35
Order
|
|
|
| 28 | 335495 | REAR PLATE |
$207.35
Order
|
|
|
| 29 | 231617 | SCREWM6X18 |
$8.28
Order
|
|
|
| 30 | 675000383 | SCREWM8X16 |
$10.62
Order
|
|
|
| 33 | 334627 | SEAL RING |
$172.79
In Stock
|
|
|
| 39 | 326558 | GASKET |
$30.83
Order
|
|
|
| 40 | 675000505 | NUTM8 |
$12.98
Order
|
|
|
| 41 | 670009954 | SCREWM12 |
$12.41
Order
|
|
|
| 42 | 102725 | CENTERING DOWEL |
$10.40
Order
|
|
|
| 46 | 673015477 | LIGHT ENGINE (LONG BLOCK VERSION) |
$0.00
Order
|
|

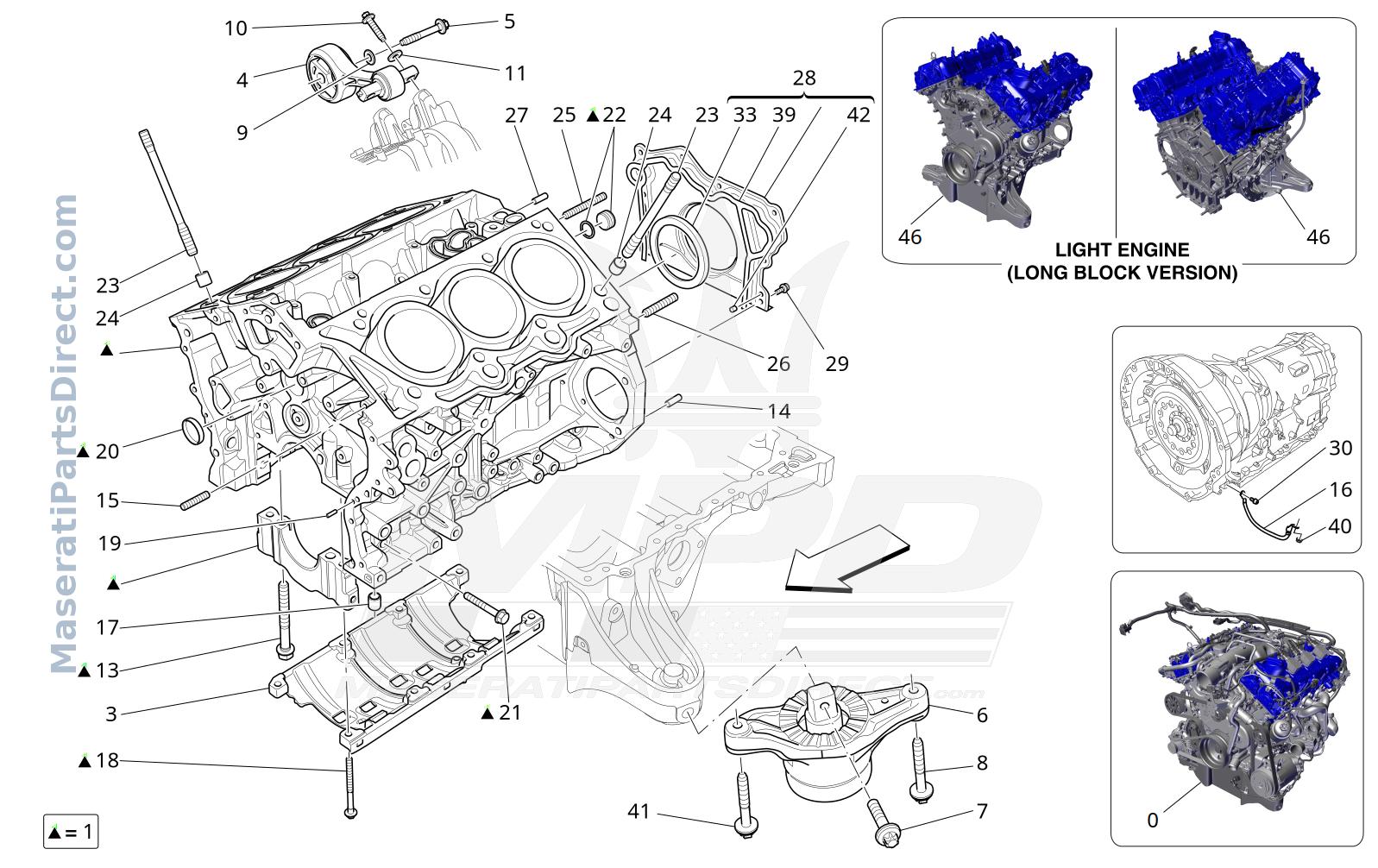

| SVG Path | Gh2023-01-00-3-crankcase-4wd430hp.svg |
|---|---|
| SVG Width | 798.800000 |
| SVG Height | 503.400000 |
