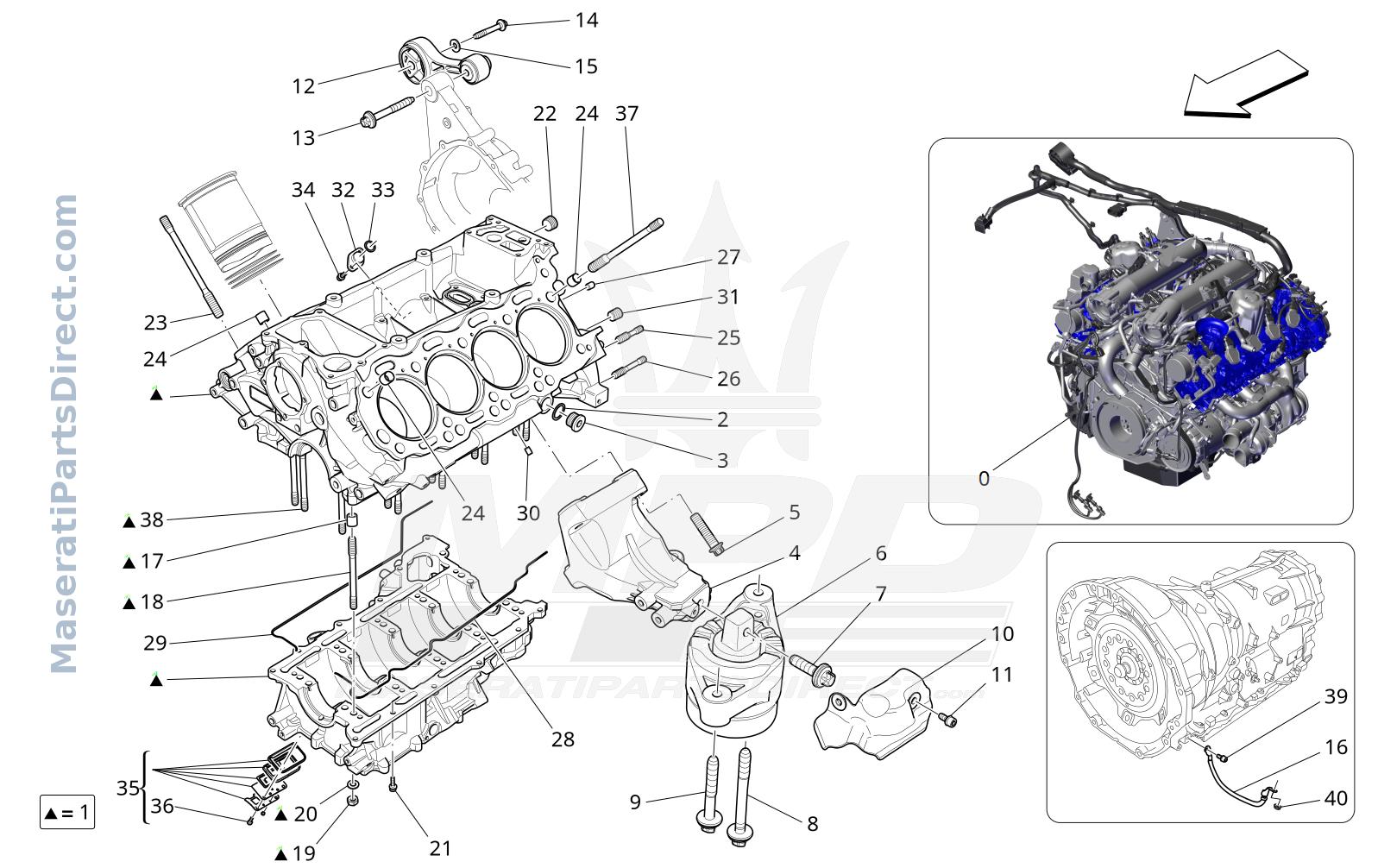

01.00 - 6 - CRANKCASE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	670153389	ENGINE ASSEMBLY	$0.00 Order
1	339344	ENGINE BLOCK	$0.00 Order
2	10263460	GASKET	$9.24 Order
3	307477	THREADED PLUG	$0.00 Order
4	312959	LH ENGINE MOUNTING BRACKET	$250.30 Order
4	330935	RH ENGINE MOUNTING BRACKET	$0.00 Order
5	290127	SCREWM12X50	$91.02 Order
5	290126	SCREWM12X60	$106.61 Order
6	670175585	LH ENGINE BUSHING	$521.64 Order
6	670175584	RH ENGINE BUSHING	$521.64 Order
7	670003759	SCREWM12X44	$23.79 Order
8	670103084	SCREW	$14.14 Order
9	670103084	SCREW	$14.14 Order
10	670003983	LH HEAT SHIELD	$62.18 Order
10	670003985	RH HEAT SHIELD	$61.30 Order
11	675000172	SCREW	$8.28 Order
12	670173169	HIGH LINK ROD	$0.00 Order
13	670003869	SCREW	$36.65 Order
14	675000146	SCREWM12X80	$13.58 Order
15	675000096	WASHERD.12.2-28X3	$7.65 Order
16	670007404	CABLE FOR ENGINE-FRAME EARTH	$186.10 Order
17	102725	CENTERING DOWEL	$10.40 Order
18	270465	STUD	$81.43 Order
19	133988	NUTM10	$10.40 Order
20	178348	WASHERD.10.2-20X2.4	$11.52 Order
21	231620	SCREWM6X25	$5.58 In Stock
22	282753	THREADED PLUG	$25.38 Order
23	270464	STUD	$75.46 Order
24	185360	CENTERING DOWEL	$23.23 Order
25	278120	STUD	$85.40 Order
26	278119	STUD	$79.27 Order
27	311001	CENTERING DOWEL	$0.00 Order
28	339289	LH GASKET	$0.00 Order
29	339298	RH GASKET	$0.00 Order
30	10839610	CENTERING DOWEL	$9.72 Order
31	291078	THREADED PLUG	$14.18 Order
32	265562	FLANGE	$71.11 Order
33	264447	O.R. GASKET	$9.20 Order
34	231617	SCREWM6X18	$8.28 Order
35	255138	BLOW BY VALVE ASSEMBLY	$0.00 Order
36	264889	SCREW	$0.00 Order
37	271564	STUD	$85.59 Order
38	270466	STUD	$91.37 Order
39	675000383	SCREWM8X16	$10.62 Order
40	675000505	NUTM8	$12.98 Order
