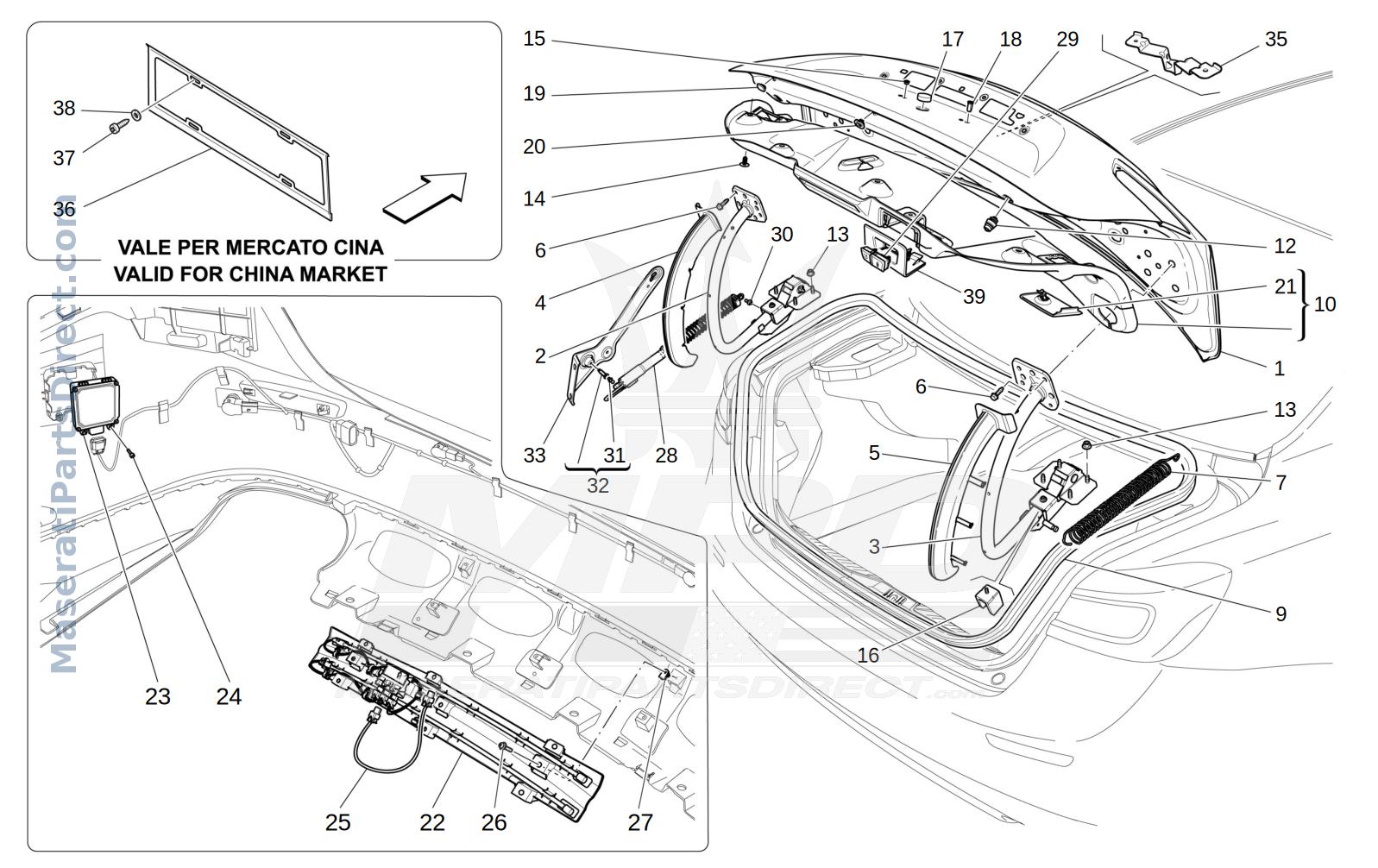

09.21 - 2 - REAR LID

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673004651	BOOT LID	$0.00 Order
2	670032970	REAR LEFT BOOT LID HINGE	$526.32 Order
3	670009222	REAR RIGHT BOOT LID HINGE	$217.37 Order
4	custom	LH HINGE COVER	$0.00 Order
5	custom	RH HINGE COVER	$0.00 Order
6	675000113	SCREW	$7.65 Order
7	670033066	BOOT LID SPRING	$287.73 Order
9	670033871	GASKET	$170.41 Order
10	custom	BOOT LID COVER	$0.00 Order
12	670152943	ANTIVIBRATING PAD	$13.28 Order
13	675000092	NUT	$8.28 Order
14	custom	FASTENER BUTTON6,5X18	$0.00 Order
15	675000022	BLOCK	$18.06 In Stock
16	670033125	PAD	$0.00 Order
17	675000516	RUBBER DAMPER	$7.65 Order
18	670005149	RIVET	$10.62 Order
19	675000528	SIDE PLUG	$7.65 Order
20	675000529	PLUG	$12.30 Order
21	custom	LH DOOR	$0.00 Order
21	custom	LH DOOR	$0.00 Order
22	670109186	LIFTGATE OPENING SENSOR	$757.52 Order
23	670106466 Replaced by: #670174821.0	BSA/RPC SENSOR (BLIND SPOT ALERT/REAR TRAFFIC DETECTION)	$0.00 Order
23	670174821	BSA/RPC SENSOR (BLIND SPOT ALERT/REAR TRAFFIC DETECTION)	$423.40 Order
24	675000553	SCREW	$7.65 Order
25	670034376	REAR BONNET OPENING SENSOR CABLE	$46.09 Order
26	675000554	SCREW	$8.28 Order
27	670034279	CLIP	$9.73 Order
28	670181845	REAR BONNET COMPLETE ACTUATOR	$1,059.24 Order
29	custom	CONTROL PANEL REAR BONNET CLOSURE	$0.00 Order
30	675000559	BALL PIN	$11.40 Order
31	675000559	BALL PIN	$11.40 Order
32	670034114	BALL PIN	$25.67 Order
33	670102994	LH BRACKET	$0.00 Order
0	675000558	FASTENER BUTTON	$0.00 Order
35	670033143	REAR BRACKET	$81.24 Order
39	custom	TRIM PLATE	$0.00 Order
