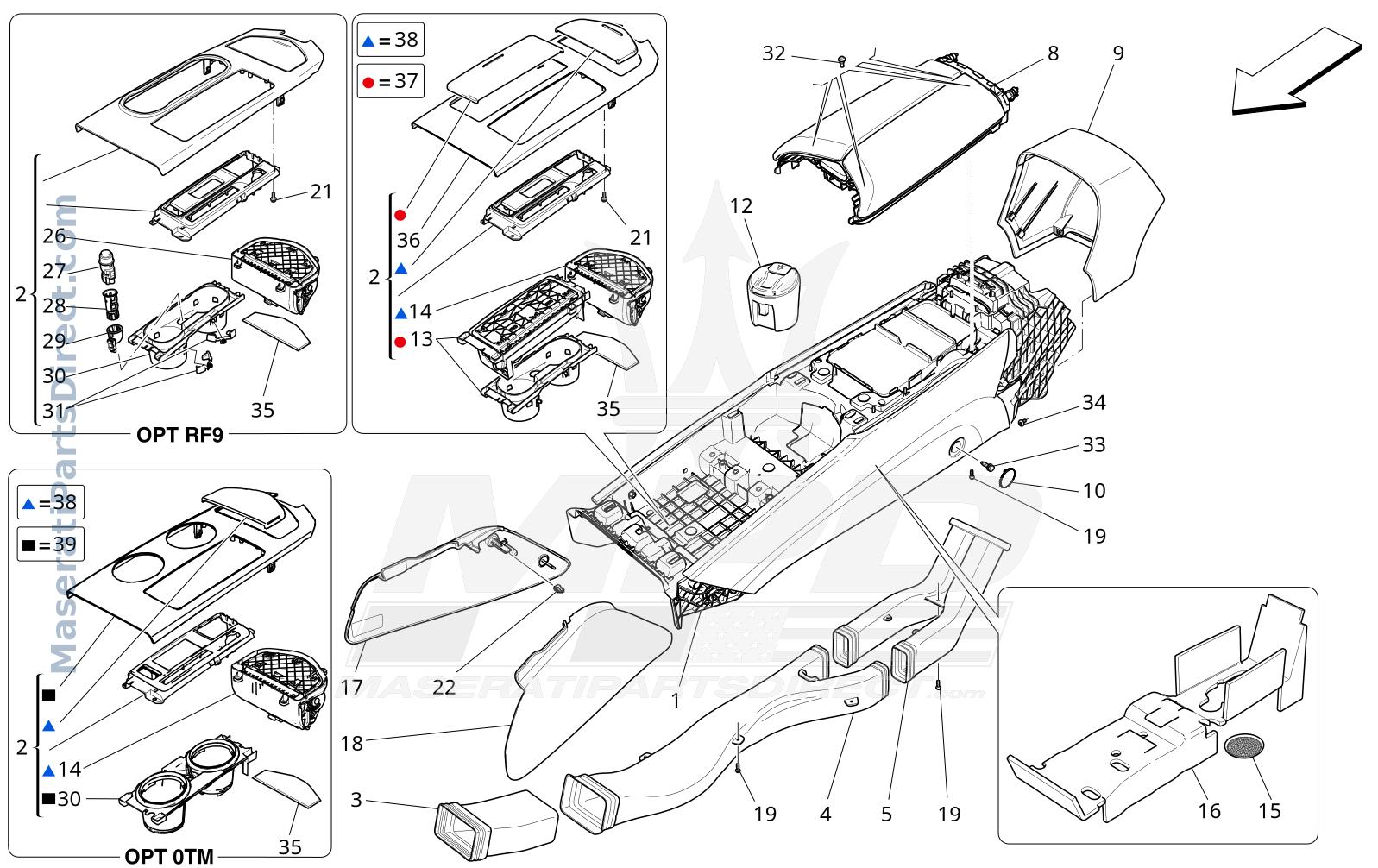

09.51 - 3 - ACCESSORY CONSOLE AND CENTRE CONSOLE

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom Replaced by: #670263644.0	COMPLETE TUNNEL COVER STRUCTURE	$0.00 Order
2	custom Replaced by: #670263644.0	TUNNEL GLOVE COMPARTMENT	$0.00 Order
2	custom Replaced by: #670263644.0	TUNNEL GLOVE COMPARTMENT	$0.00 Order
3	670001703	REAR AIR VENT AND HVAC UNION DUCT	$84.88 Order
4	670001713	AIR VENT DUCT REAR UNION	$1,060.99 Order
5	670005297	AIR VENT DUCT REAR UNION	$134.75 Order
8	custom Replaced by: #670263644.0	CENTRAL CONSOLE ARMREST	$0.00 Order
9	custom Replaced by: #670263644.0	REAR CENTRAL CONSOLE COVER	$0.00 Order
10	custom Replaced by: #670263644.0	CONSOLE FASTENER COVER CAP	$0.00 Order
12	custom Replaced by: #670263644.0	ASH TRAY	$0.00 Order
14	custom Replaced by: #670263644.0	CELL PHONE HOLDER	$0.00 Order
15	670006071	CUP HOLDER MAT	$232.76 Order
16	673000119	TUNNEL INSULATION	$664.24 Order
17	custom Replaced by: #670263644.0	RH LOWER FRONT COVER ASSEMBLY	$0.00 Order
18	custom Replaced by: #670263644.0	LH LOWER FRONT COVER ASSEMBLY	$0.00 Order
19	670006127	SCREW	$20.28 Order
22	673002721	CLIP	$17.78 Order
30	673015587	CUP HOLDER	$0.00 Order
32	673002877	STOP RUBBER	$9.73 Order
33	675000199	SCREWM6X18	$8.00 Order
34	670006128	SCREW	$36.65 Order
35	custom Replaced by: #670263644.0	CARPET	$0.00 Order
37	673016868	CUPHOLDER	$1,123.75 Order
38	custom Replaced by: #670263644.0	PHONEBOX	$0.00 Order
39	custom Replaced by: #670263644.0	CENTRAL DASHBOARD TRIM PLATENOT VALID FOR BADGED VERSION	$0.00 Order
