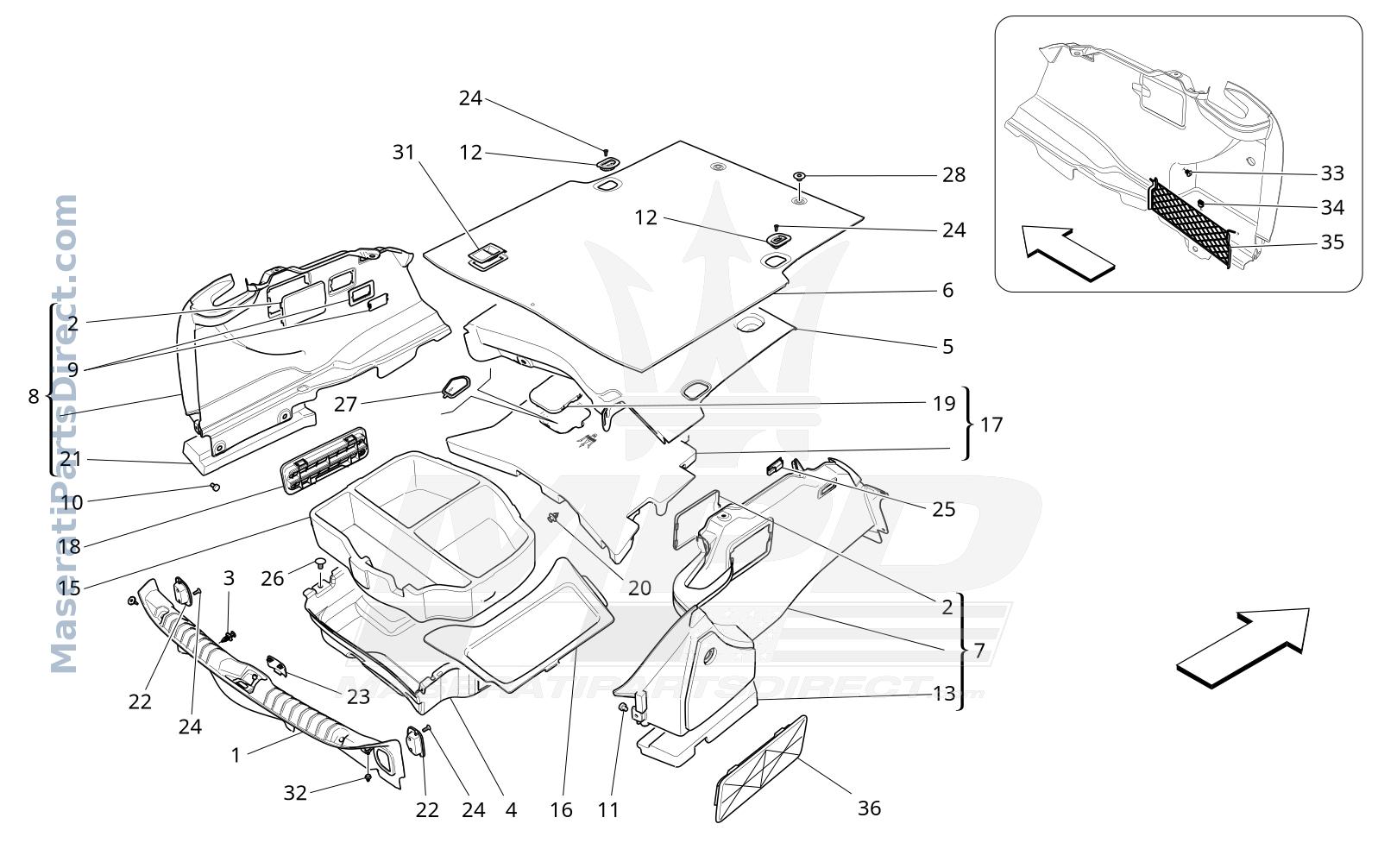

09.61 - 1 - LUGGAGE COMPARTMENT MATS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	PROTECTION COVER	$0.00 Order
2	custom	COVER	$0.00 Order
3	675000294	PIN	$11.15 Order
4	custom	SPARE WHEEL COMPARTMENT FLOOR PANEL	$0.00 Order
5	custom	REAR FLOOR PANEL	$0.00 Order
6	custom	BOOT COMPARTMENT CARPET	$0.00 Order
7	custom	RH SIDE PANEL COVER	$0.00 Order
8	custom	LH SIDE PANEL COVER	$0.00 Order
9	673002033	LUGGAGE COMPARTMENT FLOOR PANEL COVER	$28.36 Order
10	custom	FASTENER BUTTON6,5X18	$0.00 Order
10	custom	FASTENER BUTTON6,5X18	$0.00 Order
11	custom	FASTENER BUTTON6,5X18	$0.00 Order
11	custom	FASTENER BUTTON6,5X18	$0.00 Order
12	custom	TRIM PLATE	$0.00 Order
13	670008994	PAD	$44.06 Order
15	custom	CONTAINER	$0.00 Order
16	custom	BATTERY INSPECTION DOOR	$0.00 Order
17	670172654	PAD	$209.88 Order
18	675000231	AIR OUTLET PLATE	$31.08 Order
19	670038856	PLUG	$0.00 Order
20	custom	FASTENER BUTTON	$0.00 Order
20	675000294	PIN	$11.15 Order
21	670006115	PAD	$49.06 Order
22	custom	TRIM PLATE	$0.00 Order
23	custom	PLUG	$0.00 Order
24	675000310	SCREWM6X16	$10.62 Order
25	675000137	DOMELIGHT	$10.40 Order
26	custom	FASTENER BUTTON	$0.00 Order
27	670005931	PLUG	$19.15 Order
28	673002365	FASTENER BUTTON	$11.85 Order
31	custom	HANDLE	$0.00 Order
32	673005736	PIN	$9.17 Order
33	673007156	CLIP	$11.25 Order
34	673007155	CLIP	$9.72 Order
35	673007154	LUGGAGE NET	$101.09 Order
36	675000231	AIR OUTLET PLATE	$31.08 Order
