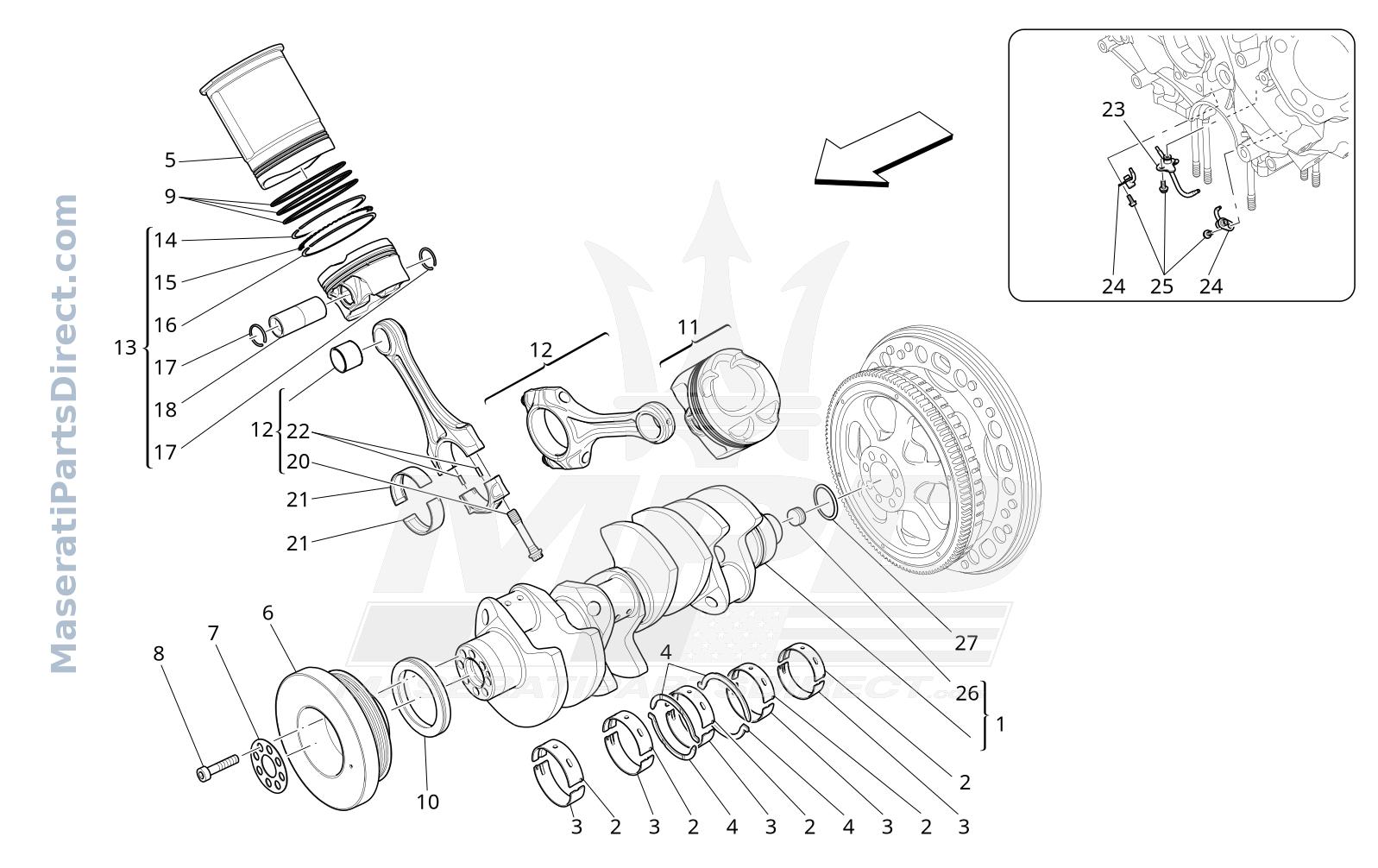

01.10 - 1 - CRANK MECHANISM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	758138	CRANKSHAFT	$0.00 Order
2	309242	UPPER HALF-BEARING	$0.00 Order
2	309243	UPPER HALF-BEARING	$0.00 Order
2	271409	UPPER HALF-BEARING	$60.03 Order
2	271408	UPPER HALF-BEARING	$60.03 Order
2	271406	UPPER HALF-BEARING	$59.33 Order
3	309244	LOWER HALF-BEARING	$0.00 Order
3	309245	LOWER HALF-BEARING	$0.00 Order
3	271414	LOWER HALF-BEARING	$42.90 Order
3	271413	LOWER HALF-BEARING	$47.44 Order
3	271412	LOWER HALF-BEARING	$46.12 Order
4	271589	SHIM WASHER	$52.35 Order
5	271810	CYLINDERS LINER	$645.61 Order
6	819214	TORSION DAMPER	$1,340.58 Order
7	271609	WASHER	$48.22 Order
8	14308074	SCREW	$12.98 Order
9	294153	O.R. GASKET	$0.00 Order
10	271598	GASKET	$91.93 Order
11	326006	LH SIDE ENGINE PISTON WITH RINGS	$0.00 Order
12	805291	CONNECTING ROD SHAFT AND CAP ASSEMBLY	$0.00 Order
13	326005	RH SIDE ENGINE PISTON WITH RINGS	$0.00 Order
14	286954	SEAL RING	$211.24 Order
15	299797	SEAL RING	$63.01 Order
16	287177	OIL SCRAPER RING	$154.99 Order
17	270275	LOCK RING	$43.17 Order
18	270274	PIN	$80.93 Order
20	270248	CONNECTING ROD TIGHTENING SCREW	$70.76 Order
21	312692	CONNECTING ROD HALF-BEARINGBlue	$0.00 Order
21	312691	CONNECTING ROD HALF-BEARINGBlack	$0.00 Order
21	312693	CONNECTING ROD HALF-BEARINGRed	$0.00 Order
22	292751	CENTRING PIN FOR CONNECTING RODS	$84.39 Order
23	298858	PISTONS COOLING NOZZLE	$0.00 Order
24	298859	PISTONS COOLING NOZZLE	$0.00 Order
25	315493	SCREW	$0.00 Order
26	176396	THREADED PLUG	$39.23 Order
27	259917	O.R. GASKET	$15.09 Order
28	301753	BUSHING	$0.00 Order
