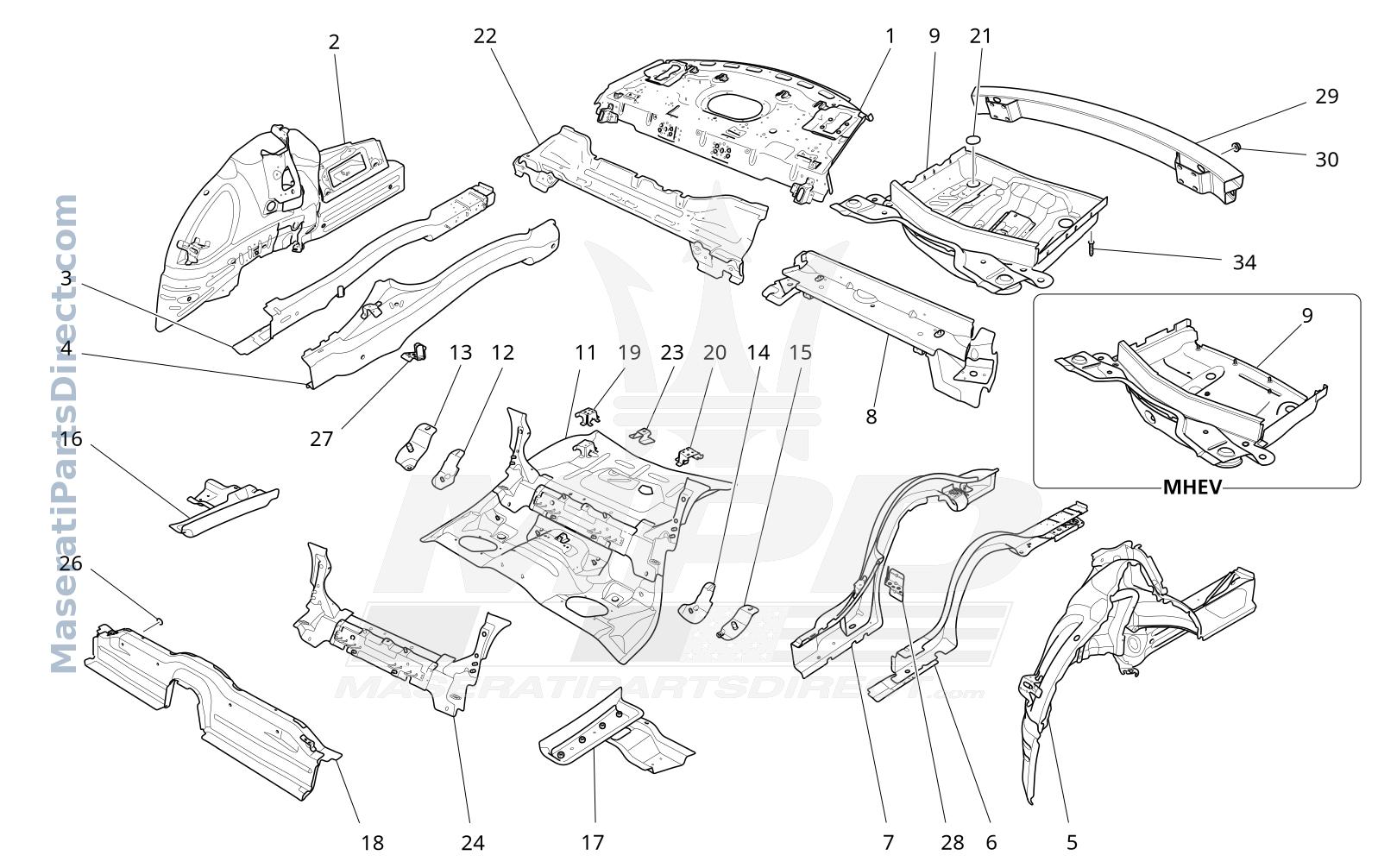

09.05 - 2 - REAR STRUCTURAL FRAMES AND SHEET PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	673011195	REAR UNDER WINDOW PANEL ASS.	$616.70 Order
2	673015402	RH REAR WHEELHOUSE	$890.68 Order
3	673012390	RH INTERNAL REAR SIDE MEMBER	$502.45 Order
4	673009042	RH OUTER REAR SIDE MEMBER	$948.69 Order
5	673015403	LH REAR WHEELHOUSE	$920.13 Order
6	673007577	LH INTERNAL REAR SIDE MEMBER	$725.68 Order
7	673009043	LH OUTER REAR SIDE MEMBER	$948.69 Order
8	673010187	LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$685.93 Order
9	673006258	SPARE WHEEL COMPARTMENT	$710.98 Order
11	673011107	FRONT SIDE OF REAR FLOOR ASSEMBLY	$558.77 Order
12	673000380	RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$620.63 Order
13	673000419	RH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$616.08 Order
14	673000381	LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$620.63 Order
15	673000420	LH REAR SEAT BELT FAST. LATCH REINFORCEMENT ASS	$616.08 Order
16	673003064	RH GEARBOX SUPPORT SIDE RAIL	$107.23 Order
17	673009048	LH GEARBOX SUPPORT SIDE RAIL	$189.42 Order
18	673012894	REAR SEAT CROSS MEMBER	$0.00 Order
19	673000436	RH LUGGAGE LATCHING REINFORCEMENT ASS	$123.95 Order
20	673000437	LH LUGGAGE LATCHING REINFORCEMENT ASS	$94.67 Order
22	673011196	REAR SEAT BACK CROSS MEMBER FRAME	$0.00 Order
23	673001060	REAR BRACKET	$75.27 Order
24	673001059	ISOFIX CROSS MEMBER	$813.93 Order
26	675000244	PLUG	$9.84 Order
27	670007021	RH BRACKET	$1,135.18 Order
28	670007023	LH BRACKET	$1,135.18 Order
29	670004652	REAR CRASH-BOX CROSS MEMBER ASS.	$859.45 Order
30	675000443	NUT	$7.65 Order
34	675000624	WELDED STUD	$8.28 Order
