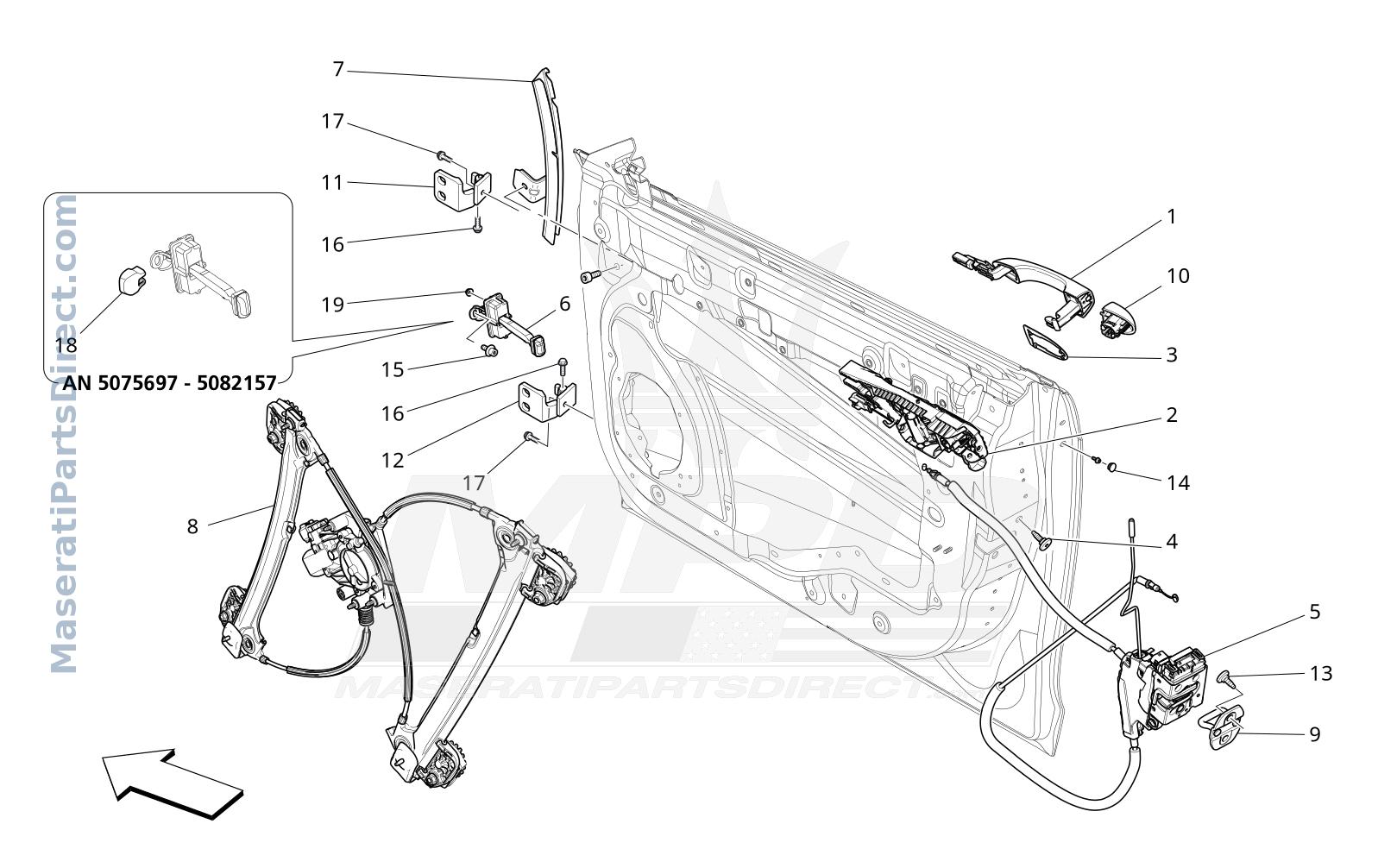

09.31 - 3 - FRONT DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
2	670109518	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$288.87 Order
2	670109516	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$110.33 Order
3	670005442	EXTERNAL DOOR HANDLE GASKET	$9.73 Order
4	670154292	SCREW	$11.25 Order
5	670162428	LH FRONT DOOR LOCK	$606.54 Order
5	670162424	RH FRONT DOOR LOCK	$339.55 Order
6	670030575	TIE ROD	$66.03 Order
7	670003745	FRONT LH WINDOW RUN CHANNEL	$53.00 Order
7	670003742	FRONT RH WINDOW RUN CHANNEL	$53.00 Order
8	670102268	LH FRONT POWER WINDOW	$859.81 Order
8	670102267	RH FRONT POWER WINDOW	$859.81 In Stock
9	675000573	DOORS LOCK STRIKER	$42.20 Order
10	675000302	DOOR LOCK REVOLVING PLUG TRIM	$47.71 Order
11	675000160	LH UPPER HINGE	$52.55 Order
11	675000162	RH UPPER HINGE	$93.52 Order
12	675000159	LH LOWER HINGE	$50.43 Order
12	675000161	RH LOWER HINGE	$52.55 Order
13	670009758	SPECIAL SCREW	$6.93 Order
14	custom	PLUG	$0.00 Order
15	670006984	SCREW	$10.40 Order
16	675000005	SCREWM 8x15	$6.93 Order
17	675000485	SCREWM10	$9.73 Order
19	670006983	NUT	$9.20 Order
