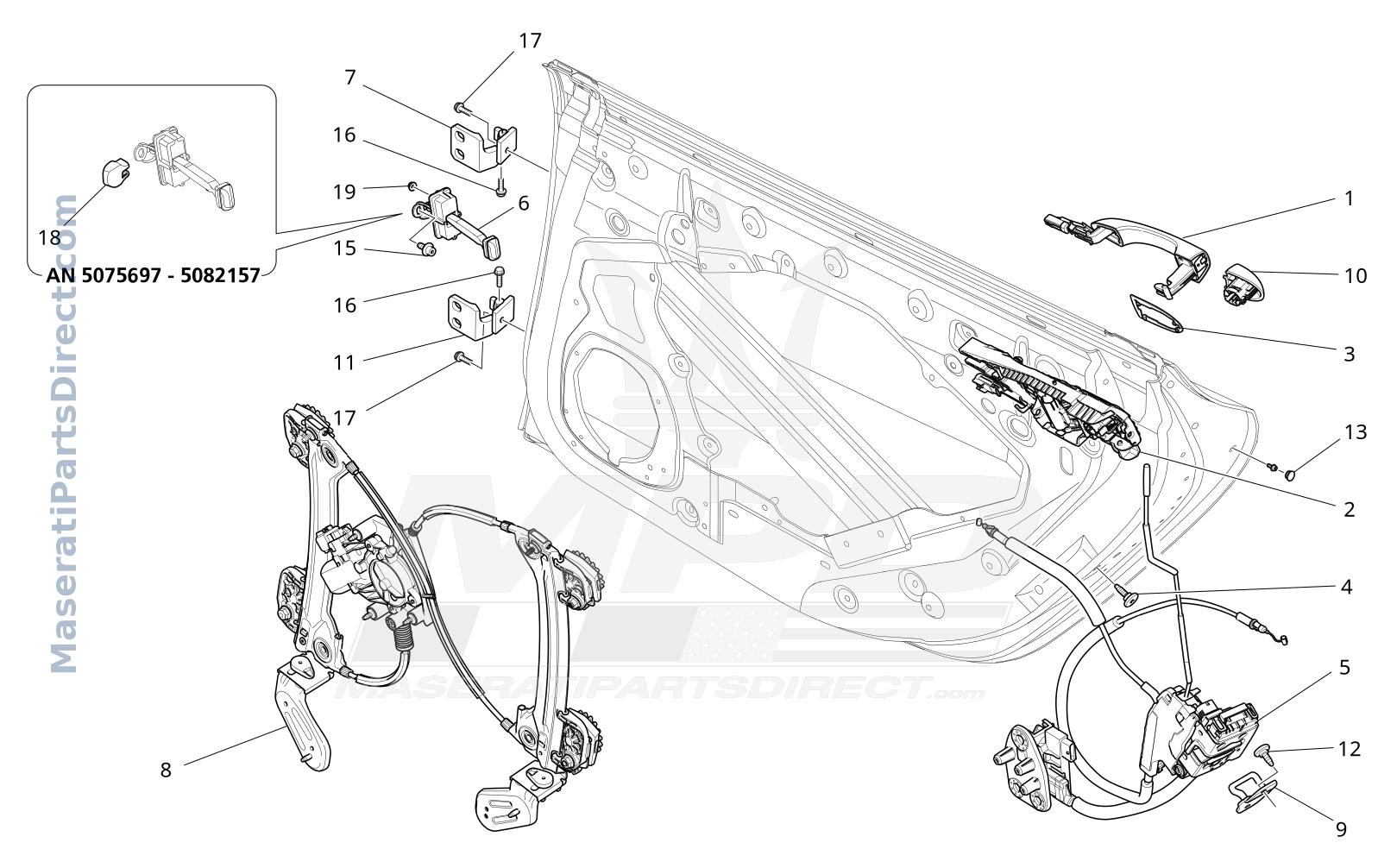

09.33 - 5 - REAR DOORS: MECHANISMS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	EXTERNAL DOOR HANDLE	$0.00 Order
2	670109521	LH EXTERNAL DOOR HANDLE RETAINING BRACKET	$255.27 Order
2	670109520	RH EXTERNAL DOOR HANDLE RETAINING BRACKET	$232.07 Order
3	670005442	EXTERNAL DOOR HANDLE GASKET	$9.73 Order
4	670154292	SCREW	$11.25 Order
5	670175832	LH REAR DOOR LOCK	$827.77 Order
5	670175830	RH REAR DOOR LOCK	$827.77 Order
6	670215300	TIE ROD	$59.50 Order
7	675000160	LH UPPER HINGE	$52.55 Order
7	675000162	RH UPPER HINGE	$93.52 Order
8	670103667	LH REAR POWER WINDOW	$834.06 Order
8	670103666	RH REAR POWER WINDOW	$834.94 Order
9	675000573	DOORS LOCK STRIKER	$42.20 Order
10	custom	DOOR LOCK REVOLVING PLUG TRIM	$0.00 Order
11	675000159	LH LOWER HINGE	$50.43 Order
11	675000161	RH LOWER HINGE	$52.55 Order
12	670009758	SPECIAL SCREW	$6.93 Order
13	custom	PLUG	$0.00 Order
15	670006984	SCREW	$10.40 Order
16	675000005	SCREWM 8x15	$6.93 Order
17	675000485	SCREWM10	$9.73 Order
19	670006983	NUT	$9.20 Order
