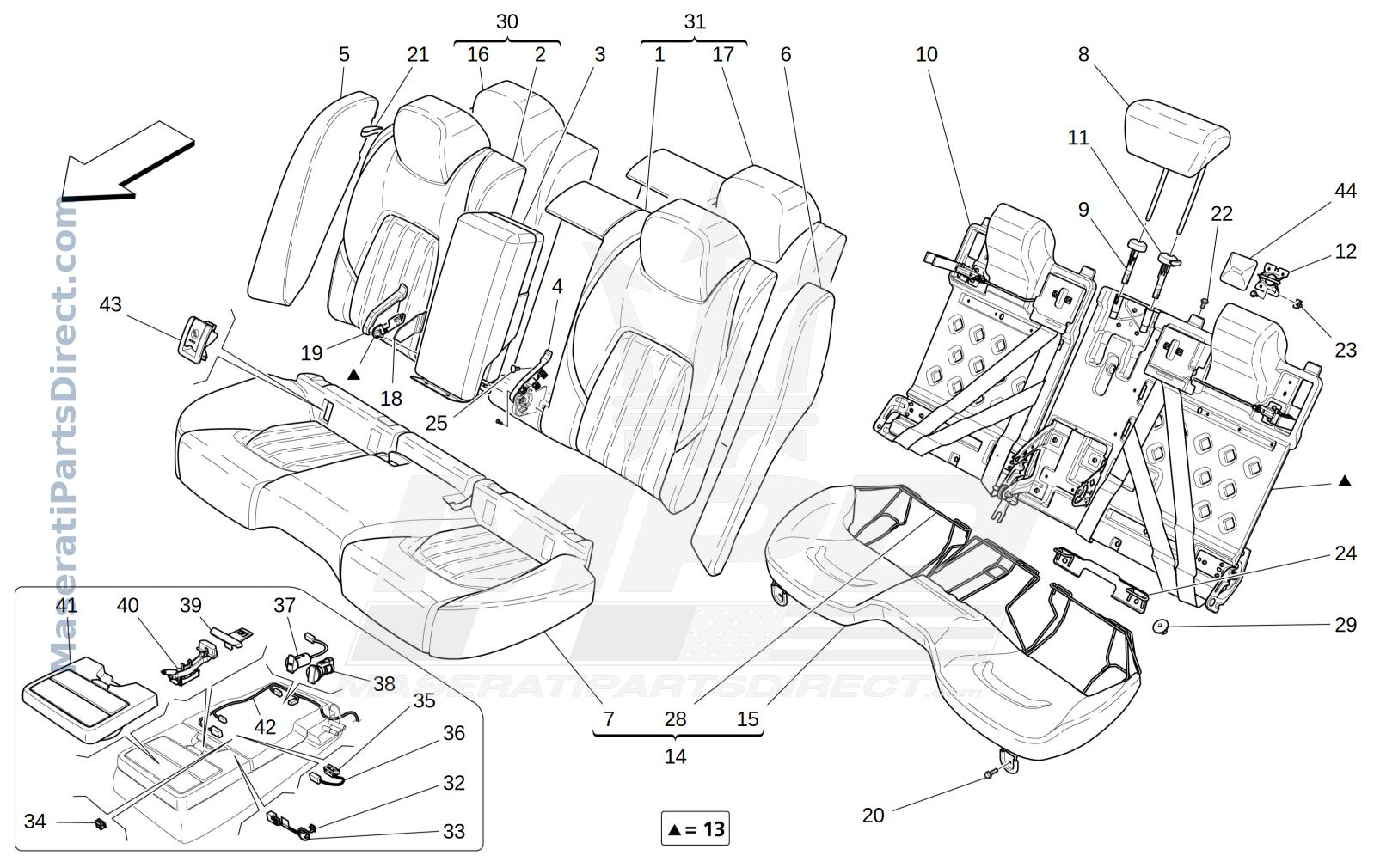

09.42 - 4 - REAR SEATS: TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	LH REAR SEAT BACKREST COVER	$0.00 Order
2	custom	RH REAR SEAT BACKREST COVER	$0.00 Order
4	custom	LH COVER	$0.00 Order
5	custom	RH REAR SEAT LATERAL TRIM ASS.	$0.00 Order
6	custom	LH REAR SEAT LATERAL TRIM ASSEMBLY	$0.00 Order
7	custom	REAR CUSHION LINING	$0.00 Order
9	custom	REAR HEADREST RH BUSHING ASSEMBLY	$0.00 Order
10	670006153	RH REAR SEAT BACK FRAMEWORK	$978.58 Order
11	custom	REAR HEADREST LH BUSHING ASSEMBLY	$0.00 Order
12	675000429	STRIKER	$40.96 Order
14	custom	REAR SEAT CUSHION ASSEMBLY	$0.00 Order
15	673003138	REAR CUSHION PADDING	$429.25 Order
16	670007410	RH REAR SEAT BACK PADDING	$364.12 Order
17	670007411	LH REAR SEAT BACK PADDING	$583.00 Order
18	custom	RH INTERNAL COVER	$0.00 Order
19	custom	RH EXTERNAL COVER	$0.00 Order
20	675000396	SCREW	$11.08 Order
22	675000403	SCREW	$11.55 Order
23	675000502	NUT	$8.00 Order
24	670007774	LH ANCHORAGE	$79.27 Order
24	670007770	RH ANCHORAGE	$0.00 Order
25	673000663	PIN	$20.02 Order
28	670008234	REAR CUSHION FRAME	$832.62 Order
29	670006691	REAR SEAT CUSHION RETAINING PIN	$97.41 Order
30	custom	RH REAR SEAT BACK	$0.00 Order
31	custom	LH REAR SEAT BACK	$0.00 Order
32	670006649	TRIM PLATE	$19.70 Order
33	670005971	LED LIGHT	$82.79 Order
34	670006707	CLIP	$36.01 Order
35	670006699	MAGNET SWITCH	$32.17 Order
36	670007043	LIGHT SWITCH	$181.61 Order
37	670006716	USB PORT	$267.70 Order
38	670006645	POWER SOCKET	$101.20 Order
39	673000719	BUTTON	$95.24 Order
40	673000745	CUP HOLDER COVER RELEASE BUTTON	$219.36 Order
41	custom	CUP HOLDER	$0.00 Order
42	670005970	WIRING HARNESS	$218.57 Order
43	custom	CPL ISOFIX TRIM	$0.00 Order
44	custom	TRIM PLATE	$0.00 Order
