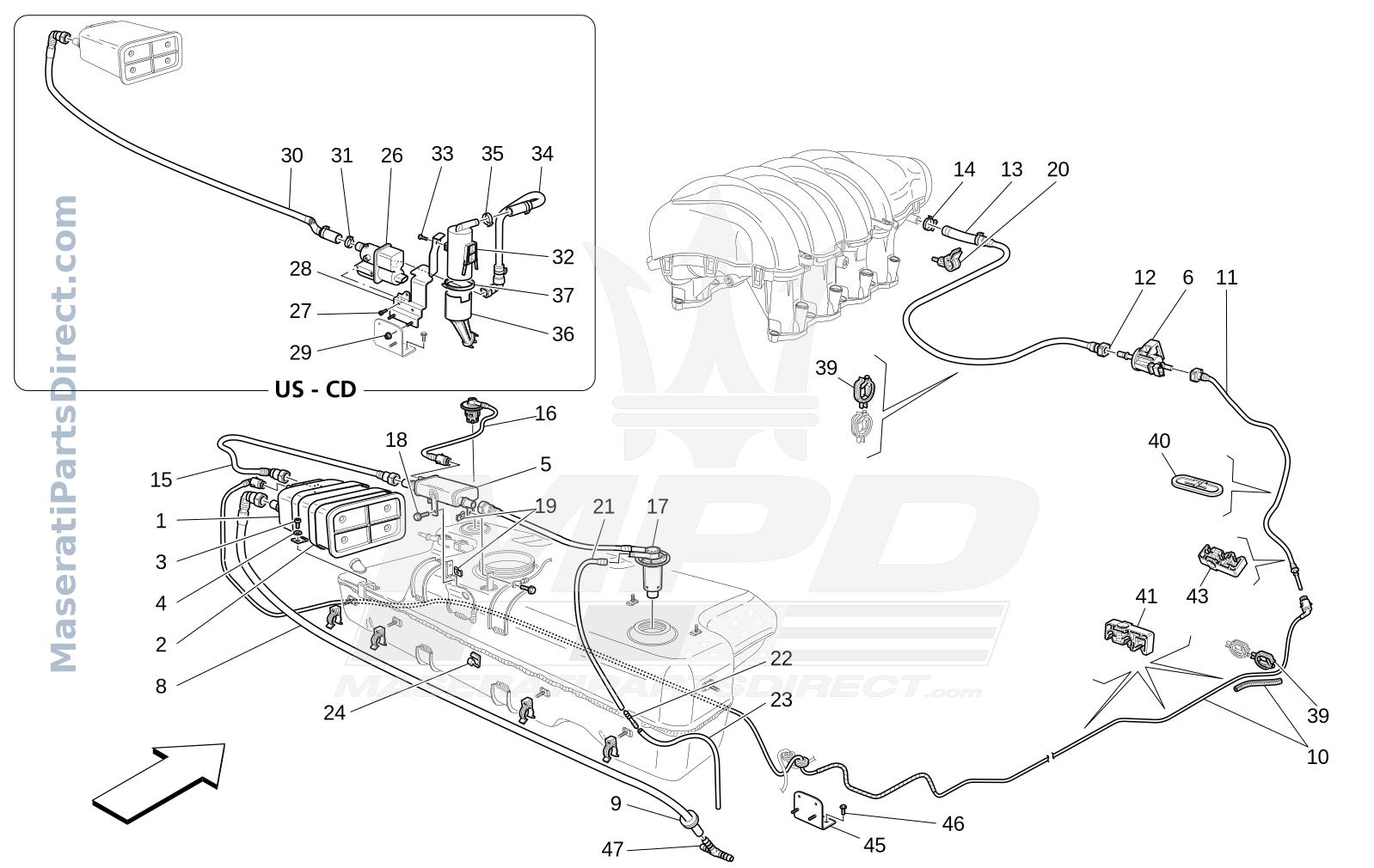

01.44 - 1 - FUEL VAPOUR RECIRCULATION SYSTEM

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	220074	FUEL VAPOUR FILTER	$224.92 Order
2	247453	FUEL VAPOR FILTER SUPPORT BRACKET	$190.56 Order
3	14305274	SCREW	$26.36 Order
4	14499324	WASHERD.6.4-11X1.6	$8.64 Order
5	247939	FUEL VAPOUR SEPARATOR	$385.00 Order
6	237683	WASHER VALVE	$73.20 In Stock
10	260666	PIPE FROM FUEL VAPOUR FILTER TO WHEEL COMPARTMENT	$368.27 Order
11	241365	VAPOR PIPE	$1,281.01 Order
12	241362	VAPOR PIPE	$2,028.60 Order
13	204968	SLEEVE	$779.21 Order
14	13433570	SCREW COLLAR	$11.10 Order
15	255411	PIPE FROM SEPARATOR TO FUEL VAPOUR FILTER	$121.91 Order
16	255407	EXHAUST VALVE WITH PIPE	$167.55 Order
17	246219	MULTIFUNCTION VALVE WITH PIPE	$718.50 Order
18	16296924	SCREW	$7.65 Order
19	14189071	BRACKET	$9.17 Order
20	198264	CLIP	$25.67 Order
21	247342	PIPE	$20.58 Order
22	204955	TWO-WAY UNION	$11.76 Order
23	255098	PIPE	$21.16 Order
24	198671	CLIP	$15.89 Order
26	251288	DIAGNOSTICS PUMP	$415.44 In Stock
27	15958707	SCREW	$11.52 Order
28	255437	BRACKET	$75.08 Order
29	14040611	NUT	$8.64 Order
30	259926	PIPE FROM FUEL VAPOUR FILTER TO DIAGNOSTIC PUMP	$295.58 Order
31	13432670	COLLAR	$17.78 Order
32	183221	DIAGNOSTICS PUMP FILTER	$28.01 Order
33	15958707	SCREW	$11.52 Order
34	255439	PIPE FROM OBD PUMP TO FILTER	$307.32 Order
35	13433370	COLLAR	$11.10 Order
36	205330	AIR INTAKE HOSE FOR DIAGNOSTIC PUMP FILTER	$110.29 Order
37	13000890	SCREW COLLAR	$16.70 Order
39	191907	CLIP	$18.34 Order
40	221727	WATER PIPE GASKET	$23.79 Order
41	213603	CLIP	$11.55 Order
43	195052	CLIP	$10.40 Order
45	82450800	BRACKET	$47.20 Order
46	18750211	SCREW	$14.44 Order
47	211389	UNION	$22.47 Order
