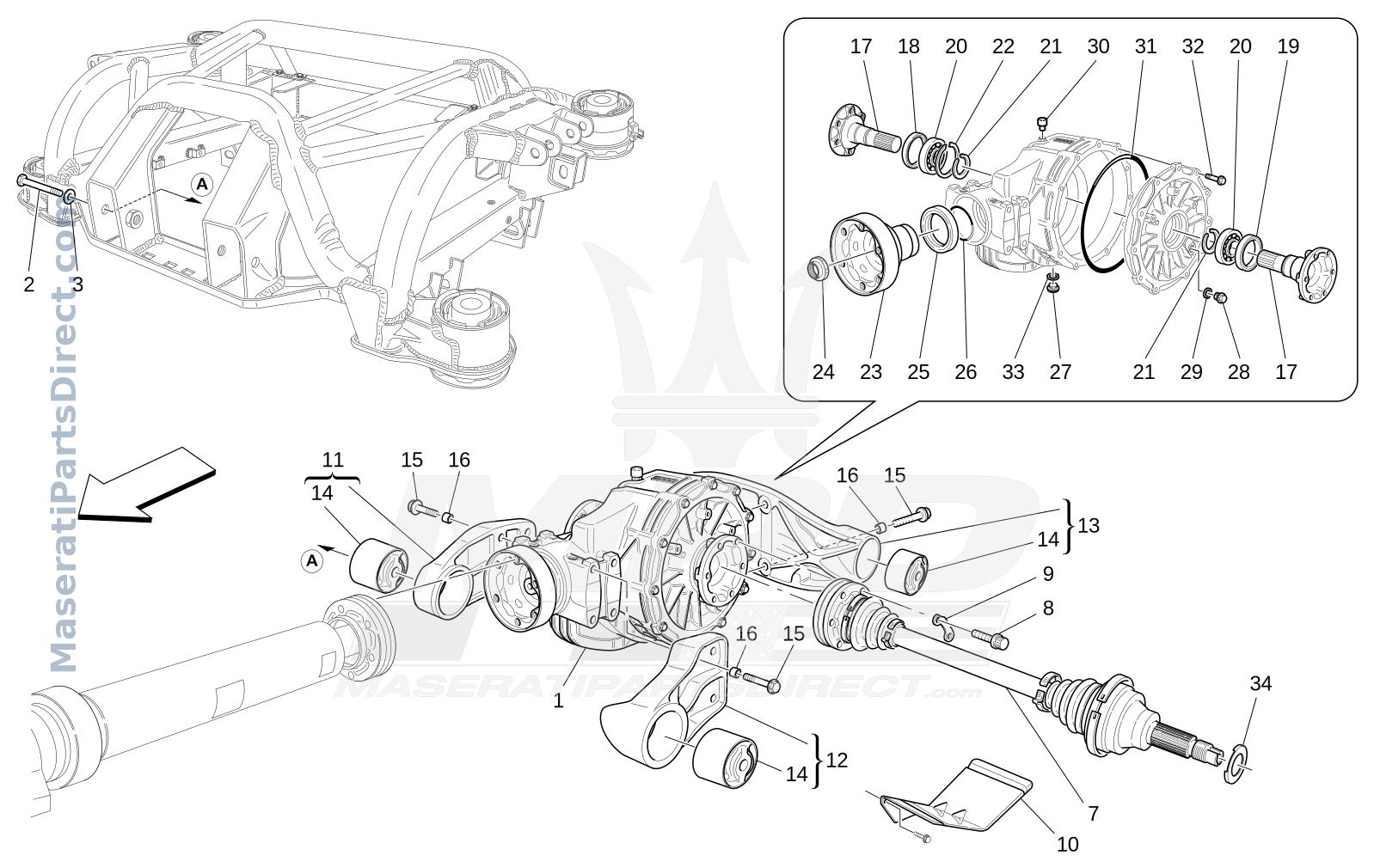

03.21 - 1 - DIFFERENTIAL AND REAR AXLE SHAFTS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	270982	DIFFERENTIAL ASSEMBLY	$4,757.80 Order
2	15977921	SCREW	$25.23 Order
3	11194174	WASHER	$18.87 Order
7	270625	AXLE SHAFT ASSEMBLY	$1,203.83 Order
8	181910	SCREW	$11.85 Order
9	222679	PLATE	$11.76 Order
10	198514	HEAT PROTECTION	$50.25 Order
11	240022	RH FRONT BRACKET	$0.00 Order
12	240023	LH FRONT BRACKET	$0.00 Order
13	240024	REAR BRACKET	$0.00 Order
14	238620	BUFFER FOR SUPPORT	$196.50 Order
15	271187	SCREW	$36.65 Order
16	229202	CENTERING DOWEL	$15.89 Order
17	218085	DIFFERENTIAL AXLE SHAFT	$1,715.49 Order
18	181618	RH SEAL RING	$175.49 Order
19	181617	LH SEAL RING	$159.57 Order
20	184995	BALL BEARING	$166.63 Order
21	184994	CIRCLIP	$21.48 Order
22	185723	CIRCLIP (SEEGER-RING)	$23.79 Order
23	218086	PROPELLER SHAFT CONNECTION FLANGE	$794.56 Order
24	183967	RING NUT	$172.46 Order
25	221062	SEAL RING	$198.88 Order
26	271172	O.R. GASKET	$30.13 Order
27	271177	THREADED PLUG	$107.85 Order
28	271178	THREADED PLUG	$101.48 Order
29	10263460	GASKET	$9.24 Order
30	197797	OIL BREAHTER	$83.24 Order
31	14468781	O.R. GASKET	$137.54 Order
32	16287321	SCREW	$12.71 Order
33	10263460	GASKET	$9.24 Order
34	284616	RING	$63.58 Order
