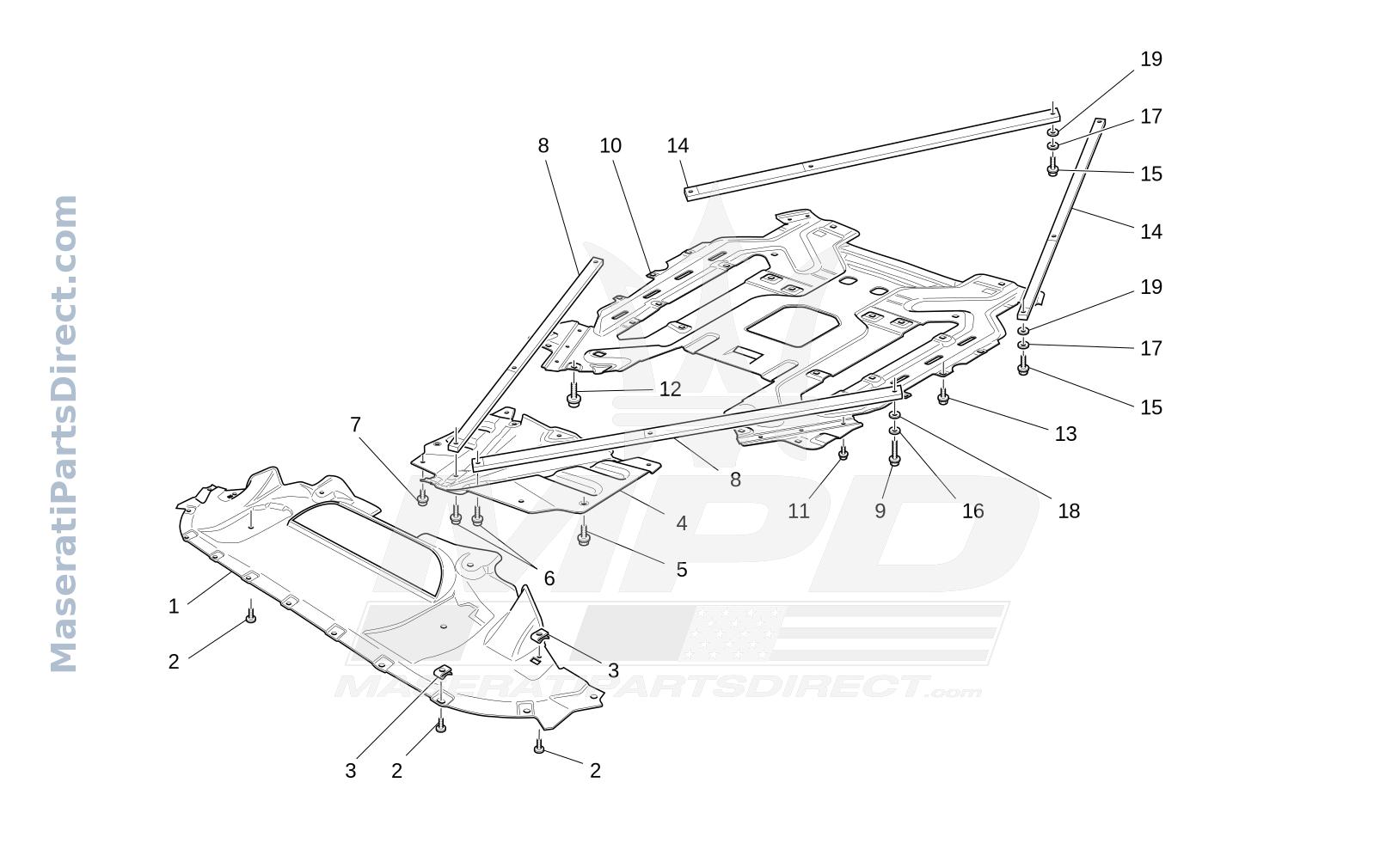

09.14 - 1 - UNDERBODY AND UNDERFLOOR GUARDS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	82421800	FRONT AERODYNAMIC SHIELD	$196.90 Order
2	51810310	SCREW	$11.72 Order
2	51810310	SCREW	$11.72 Order
2	14783714	SCREW	$21.03 Order
2	51810310	SCREW	$11.72 Order
3	80093600	CLIP	$12.71 Order
4	82063400	PLATE	$415.98 Order
5	83035500	SCREW	$22.41 Order
6	83035700	SCREW	$20.48 Order
7	83035300	SCREW	$15.65 Order
8	82063300	FRONT TIE ROD	$351.42 Order
9	83035400	SCREW	$26.13 Order
10	81451800	PLATE	$3,231.40 Order
11	83035100	SCREW	$11.85 Order
12	83035600	SCREW	$41.19 Order
13	83035300	SCREW	$15.65 Order
14	82620800	REAR TIE ROD	$311.08 Order
15	83035700	SCREW	$20.48 Order
16	12647024	WASHER	$9.20 Order
17	12647024	WASHER	$9.20 Order
18	12604474	WASHER	$5.58 Order
19	12604474	WASHER	$5.58 Order
