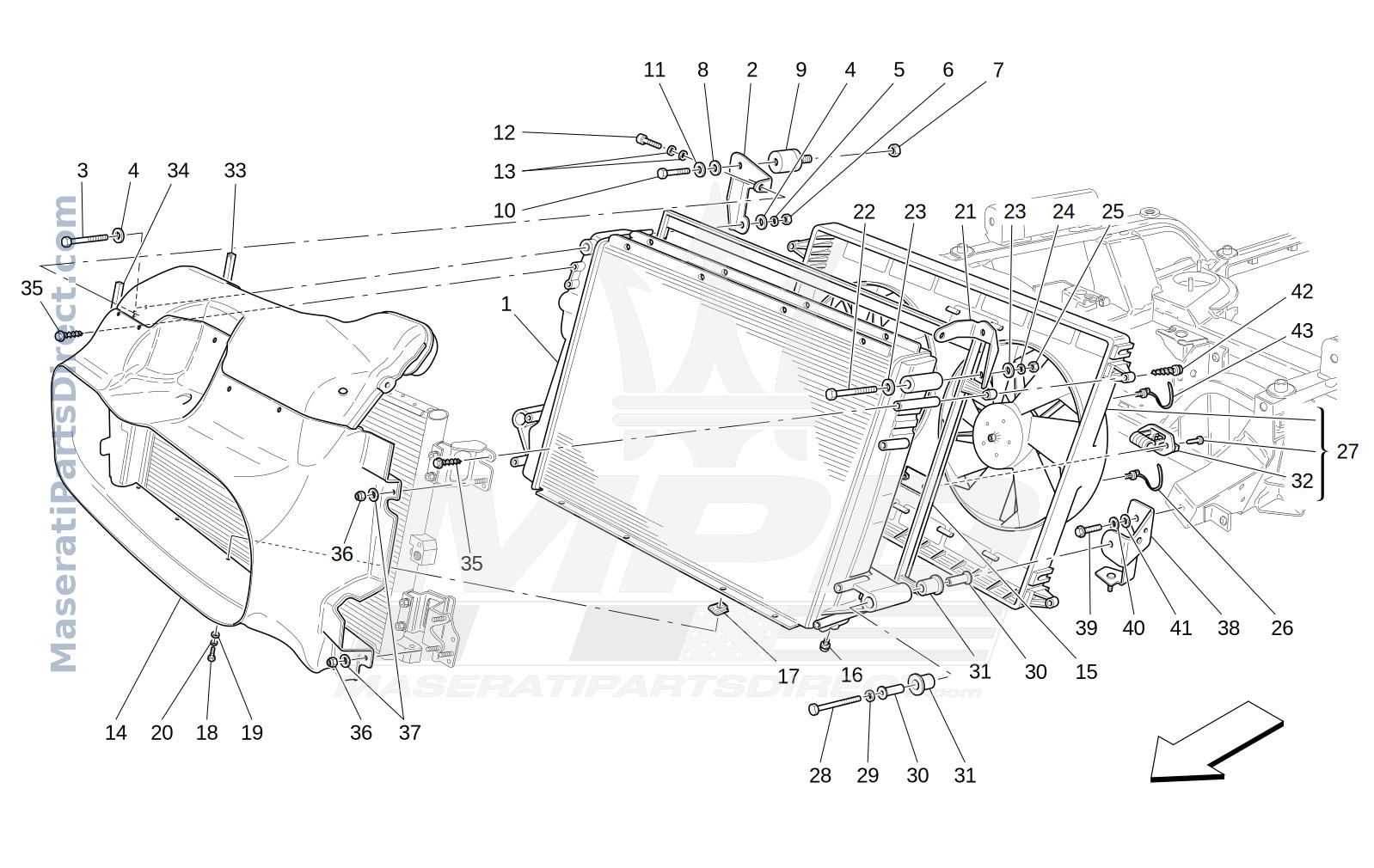

01.70 - 1 - COOLING: AIR RADIATORS AND DUCTS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	220979	WATER RADIATOR	$1,453.51 Order
2	244202	RH BRACKET FOR UPPER FIXING WATER RADIATOR	$117.11 Order
3	16044624	SCREW	$13.58 Order
4	12646724	WASHER	$9.20 Order
5	12601379	WASHER	$8.64 Order
6	16100814	NUT	$8.64 Order
7	14058511	NUT	$9.20 Order
8	14496524	WASHERD. 8.40-17 X1.6	$6.93 Order
9	181114	PAD	$34.92 Order
10	16043021	SCREW	$8.64 Order
11	12601379	WASHER	$8.64 Order
12	14305724	SCREW	$6.93 Order
13	14498804	WASHERD. 6,40-16.3 X1	$6.21 Order
14	235203	RADIATOR AIR DUCT	$727.55 Order
15	242693	HOOD FANS AIR DUCT	$340.28 Order
16	980139638	PLUG	$25.23 Order
17	67257100	BRACKET	$11.52 Order
18	14304624	SCREW	$8.00 Order
19	12601174	WASHERD.5.3-11X0.5	$9.72 Order
20	13577724	WASHER	$11.52 Order
21	244165	LH BRACKET FOR UPPER FIXING WATER RADIATOR	$95.45 Order
22	16044624	SCREW	$13.58 Order
23	12646724	WASHER	$9.20 Order
24	12601379	WASHER	$8.64 Order
25	16100814	NUT	$8.64 Order
26	268185	CLAMP	$11.52 Order
27	263143	COMPLETE ELECTROFANS SET	$1,363.17 Order
28	16044824	SCREW	$9.20 Order
29	12646724	WASHER	$9.20 Order
30	197585	BUSH	$23.34 Order
31	197584	RUBBER BUSHING	$14.28 Order
32	263140	RESISTOR	$226.31 Order
33	233535	PROFILE	$11.40 Order
34	233735	PROFILE	$11.40 Order
35	15699804	SCREW	$8.64 Order
36	102741	NUT	$7.65 Order
37	12643704	WASHER	$11.52 Order
38	266658	LH LOWER SUPPORT	$131.49 Order
38	266659	RH LOWER SUPPORT	$122.49 Order
39	16043534	SCREW	$8.64 Order
40	10519624	WASHERD. 8,15-17 X2	$6.21 Order
41	12601379	WASHER	$8.64 Order
42	15698304	SCREW	$11.08 Order
43	268185	CLAMP	$11.52 Order
