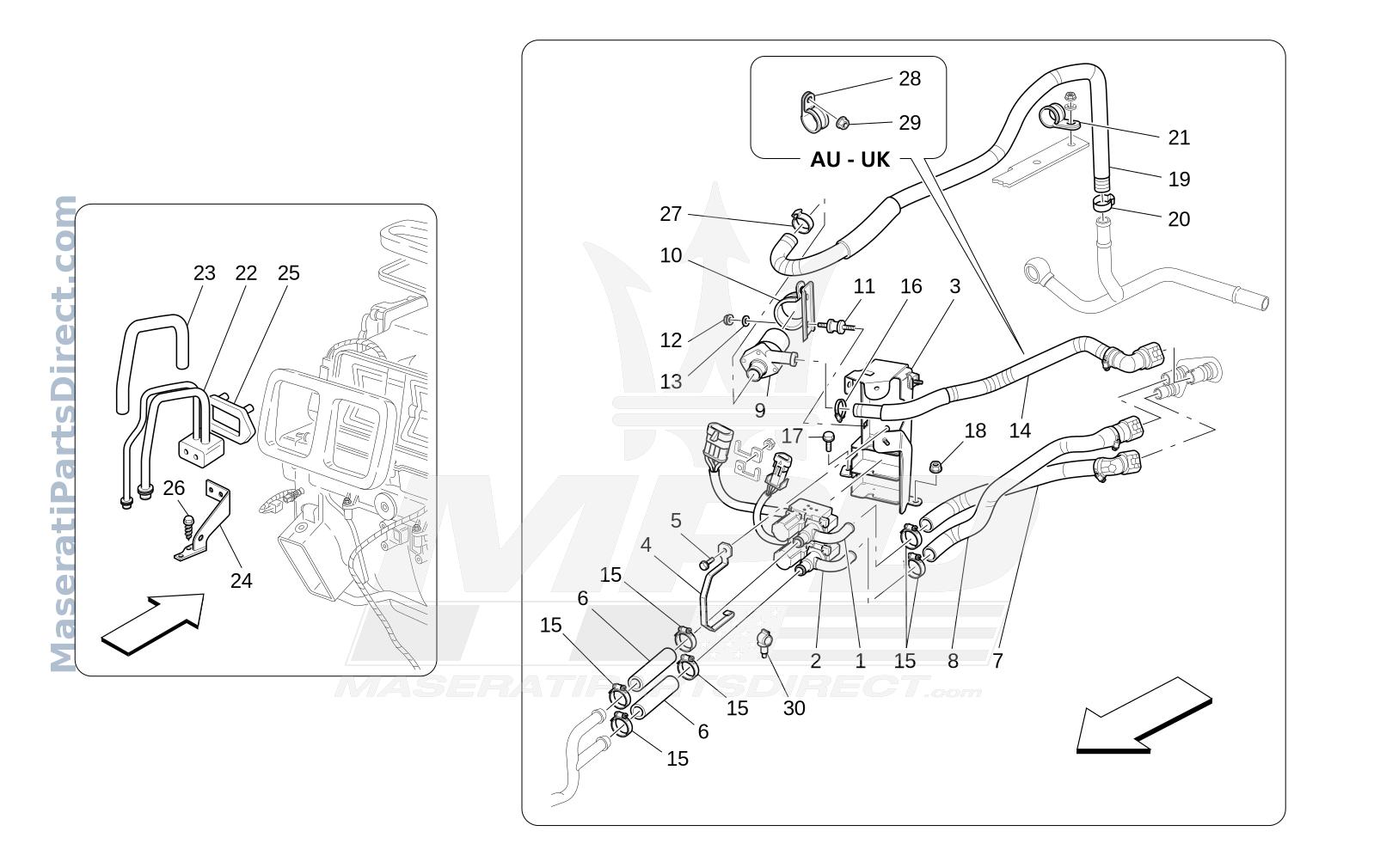

08.40 - 2 - A/C UNIT: ENGINE COMPARTMENT DEVICES

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	67635900	RH CYLINDER BANK TGK VALVE	$572.42 Order
2	67444900	LH CYLINDER BANK TGK VALVE	$641.73 Order
3	80032700	BRACKET FOR VALVE	$320.67 Order
4	67570700	BRACKET	$67.72 Order
5	11568027	SCREW	$13.58 Order
6	66949700	SLEEVE	$22.47 Order
7	81330800	RH SLEEVE	$362.10 Order
8	66949600	LH SLEEVE	$113.51 Order
9	65460300	WATER RECYCLING PUMP	$621.21 Order
10	63994900	BRACKET	$24.13 Order
11	195373	PAD	$60.05 Order
12	15896214	NUT	$9.20 Order
13	12601274	WASHERD. 6,40-12X 0,5	$8.28 Order
14	67876100	DELIVERY TUBE FROM PUMP TO EVAPORATOR	$133.40 Order
15	13097090	COLLAR	$12.41 Order
16	13097190	COLLAR	$11.40 Order
17	11568027	SCREW	$13.58 Order
18	14040614	NUT	$6.21 Order
19	203568	WATER SLEEVE	$163.24 Order
20	178053	CLAMP	$10.80 Order
21	10450790	BRACKET WITH SHEATH	$11.40 Order
22	68392300	PRESHAPED FREON PIPE ASSEMBLY	$1,002.72 Order
23	68391400	PROTECTION	$13.28 Order
24	68390300	BRACKET	$181.43 Order
25	68389400	GASKET	$124.40 Order
26	68391900	SCREW	$11.52 Order
27	13000390	SCREW COLLAR	$9.17 Order
30	227820	CLIP	$27.70 Order
