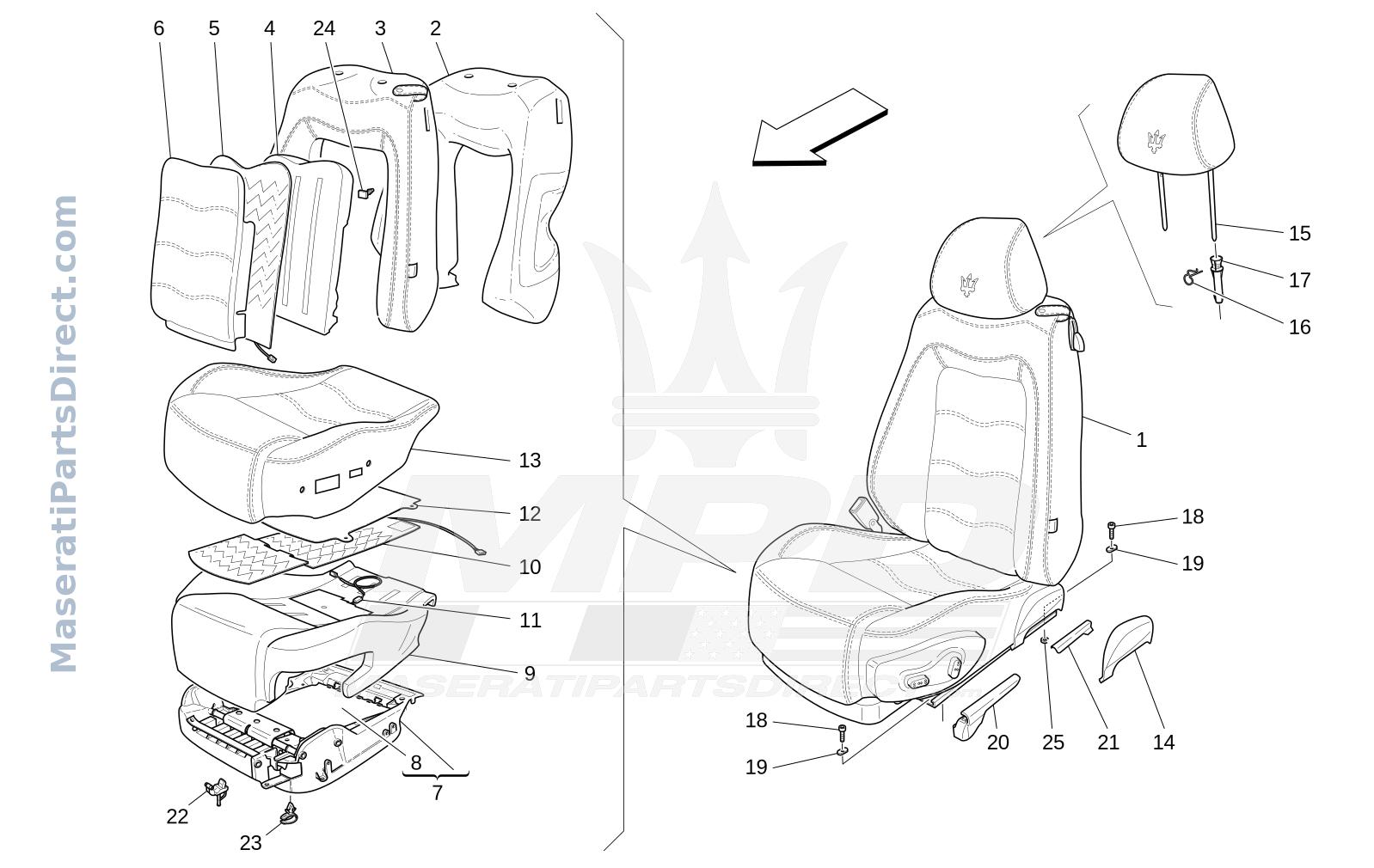

09.40 - 2 - FRONT SEATS: TRIM PANELS

Select a part from the list to view details

Part Number:	-
Part Position:	-
Remarks:	-
Market:	-
Valid Assembly Range:	-
Valid Frame Range:	-
Valid Engine Range:	-
Valid Gearbox Range:	-
Includes:	-
Replaced By:	-
Camera Image:	-
PDF Link:	-
3D Model Link:	-

Select a part from the list to view dimensions

Length (cm):	-
Width (cm):	-
Height (cm):	-
Weight (kg):	-

Length (in):	-
Width (in):	-
Height (lbs):	-
Weight (lbm):	-

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT LH SEAT ASSEMBLY	$0.00 Order
1	custom	FRONT RH SEAT ASSEMBLY	$0.00 Order
2	980145484	LH FRONT SEAT BACK OUTER PADDING	$3,489.08 Order
2	980145483	RH FRONT SEAT BACK OUTER PADDING	$513.70 Order
3	9816063..	LH FRONT SEAT BACK OUTER LINING	$0.00 Order
3	9816064..	RH FRONT SEAT BACK OUTER LINING	$0.00 Order
4	980145144	FRONT SEAT BACK CENTRAL PADDING	$256.30 Order
5	980145071	FRONT SEAT BACK HEATER	$567.34 Order
6	custom	FRONT SEAT BACK CENTRAL LINING	$0.00 Order
7	980145131	COMPLETE L.H. CUSHION BOTTOM	$488.25 Order
7	980145130	COMPLETE R.H. CUSHION BOTTOM	$488.25 Order
8	980001122	FRONT CUSHION MEMBRANE	$0.00 Order
9	980145133	LH FRONT CUSHION PADDING	$576.72 Order
9	980145132	RH FRONT CUSHION PADDING	$601.55 Order
10	980145077	FRONT CUSHION HEATER	$0.00 Order
11	980145078	SBR SENSOR	$541.93 Order
12	980145079	PROTECTION CARPET	$186.14 Order
13	95318....	LH FRONT CUSHION LINING	$0.00 Order
13	95317....	RH FRONT CUSHION LINING	$0.00 Order
14	980138105	LH GUARD	$47.12 Order
14	980138106	RH GUARD	$53.03 Order
15	custom	COMPLETE FRONT HEAD-REST	$0.00 Order
16	66370200	LH SPRING	$15.89 Order
16	66324600	RH SPRING	$15.89 Order
17	67285500	HEADREST LH BUSHING	$34.27 Order
17	67285600	HEADREST RH BUSHING	$34.27 Order
18	281403	SCREWTCEI M8X30	$11.25 Order
19	386900302	PLATE	$8.96 Order
20	80669600	LH FRONT GUIDE COVER	$32.76 Order
20	80669500	RH FRONT GUIDE COVER	$42.61 Order
21	80669800	LH REAR GUIDE COVER	$40.53 Order
21	80669700	RH REAR GUIDE COVER	$40.53 Order
22	386900406	CLIP	$27.90 Order
23	386900407	CLIP	$34.92 Order
24	980145353	CLIP	$44.28 Order
25	12628920	WASHERD. 8,15-25X4	$0.00 Order
