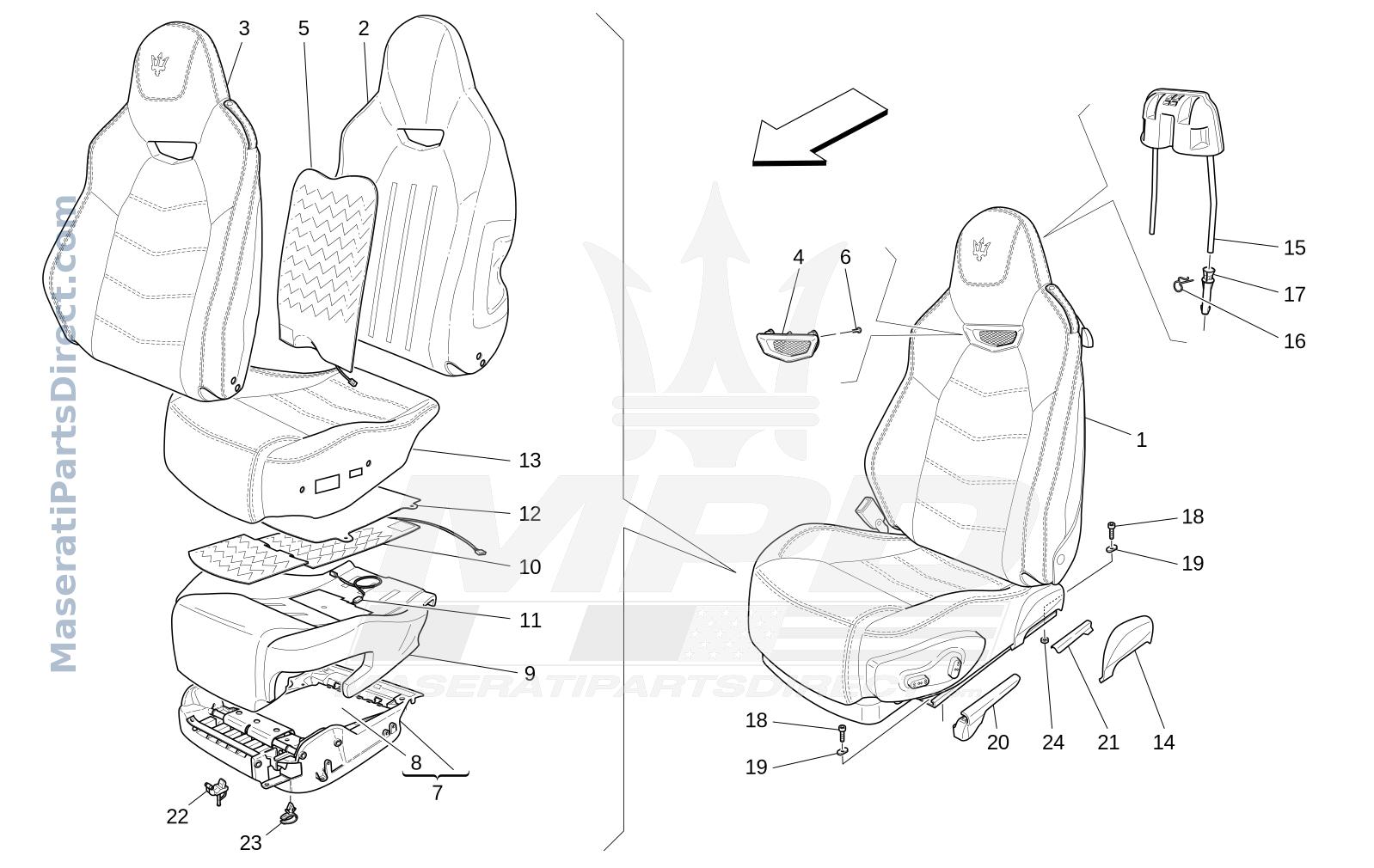

09.40 - 6 - FRONT SEATS: TRIM PANELS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	custom	FRONT LH SEAT ASSEMBLY	$0.00 Order
1	custom	FRONT RH SEAT ASSEMBLY	$0.00 Order
2	980145471	LH FRONT SEAT BACK PADDING	$3,138.35 Order
2	980145472	RH FRONT SEAT BACK PADDING	$0.00 Order
3	custom	LH FRONT SEAT BACK LINING	$0.00 Order
3	custom	RH FRONT SEAT BACK LINING	$0.00 Order
4	980145599	CARBON CENTRAL TRIM KIT	$2,815.90 Order
5	980145458	FRONT SEAT BACK HEATER	$572.06 Order
6	980145465	SCREW	$26.80 Order
7	980145131	COMPLETE L.H. CUSHION BOTTOM	$488.25 Order
7	980145130	COMPLETE R.H. CUSHION BOTTOM	$488.25 Order
8	980001122	FRONT CUSHION MEMBRANE	$0.00 Order
9	980145456	LH FRONT CUSHION PADDING	$805.85 Order
9	980145457	RH FRONT CUSHION PADDING	$766.46 Order
10	980145077	FRONT CUSHION HEATER	$0.00 Order
11	980145078	SBR SENSOR	$541.93 Order
12	980145079	PROTECTION CARPET	$186.14 Order
13	custom	LH FRONT CUSHION LINING	$0.00 Order
13	custom	RH FRONT CUSHION LINING	$0.00 Order
14	980138105	LH GUARD	$47.12 Order
14	980138106	RH GUARD	$53.03 Order
15	980145461	HEADREST INSERT WITH SHAFTS	$455.45 Order
16	66370200	LH SPRING	$15.89 Order
16	66324600	RH SPRING	$15.89 Order
17	67285500	HEADREST LH BUSHING	$34.27 Order
17	67285600	HEADREST RH BUSHING	$34.27 Order
18	281403	SCREWTCEI M8X30	$11.25 Order
19	386900302	PLATE	$8.96 Order
20	80669600	LH FRONT GUIDE COVER	$32.76 Order
20	80669500	RH FRONT GUIDE COVER	$42.61 Order
21	80669800	LH REAR GUIDE COVER	$40.53 Order
21	80669700	RH REAR GUIDE COVER	$40.53 Order
22	386900406	CLIP	$27.90 Order
23	386900407	CLIP	$34.92 Order
24	12628920	WASHERD. 8,15-25X4	$0.00 Order
