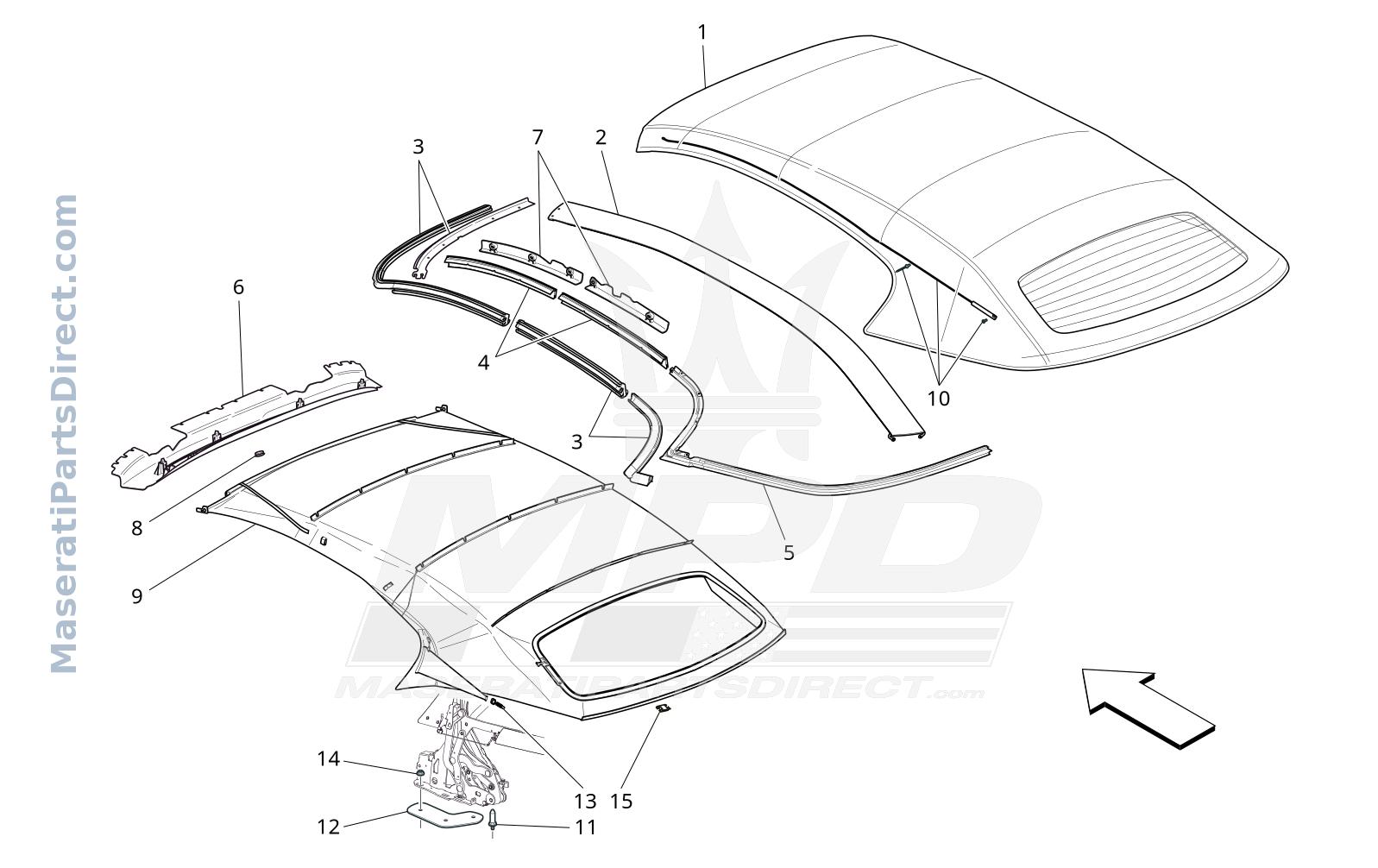

09.80 - 1 - ELECTRICAL CAPOTE: LININGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
0	85845800	CAPOTE SOFT TOP	$26,951.57 Order
0	85994200	CAPOTE SOFT TOP	$0.00 Order
0	85846000	CAPOTE SOFT TOP	$19,188.61 Order
0	85846100	CAPOTE SOFT TOP	$18,224.31 Order
0	85994600	CAPOTE SOFT TOP	$0.00 Order
0	85994700	CAPOTE SOFT TOP	$21,171.56 Order
0	85846400	CAPOTE SOFT TOP	$18,016.14 Order
0	85846500	CAPOTE SOFT TOP	$17,902.10 Order
0	85995100	CAPOTE SOFT TOP	$0.00 Order
0	85995200	CAPOTE SOFT TOP	$0.00 Order
1	860390..	COMPLETE CAPOTE CLOTH	$0.00 Order
1	860402..	COMPLETE CAPOTE CLOTH	$0.00 Order
2	83079000	SET TENSION BELTS	$935.14 Order
3	83468000	OUTER GASKET ASSEMBLY	$5,192.58 Order
4	83468100	INNER GASKET ASSEMBLY	$1,674.56 Order
5	83080600	REAR GASKET	$5,636.19 Order
6	830808..	UPPER COVER	$0.00 Order
7	834683..	LH SIDE MOULDING ASSEMBLY	$0.00 Order
7	834682..	RH SIDE MOULDING ASSEMBLY	$0.00 Order
8	830814..	COVER	$0.00 Order
9	83081600	INNER LINING	$6,612.08 Order
9	83488800	INNER LINING	$2,257.97 Order
9	83488801	INNER LINING	$6,890.07 Order
9	83081601	INNER LINING	$5,929.39 Order
9	83488802	INNER LINING	$7,542.87 Order
9	83081602	INNER LINING	$6,945.65 Order
10	83081800	TENSION CABLE	$1,535.38 Order
11	85256100	CENTERING PIN	$107.85 Order
12	82285900	PLATE	$31.70 Order
12	82245100	PLATE	$41.38 Order
12	82245200	PLATE	$51.78 Order
13	83468900	INNER LINING SPRING	$101.13 Order
14	14039714	NUTM8	$9.20 Order
15	980145857	CLIP	$11.15 Order
