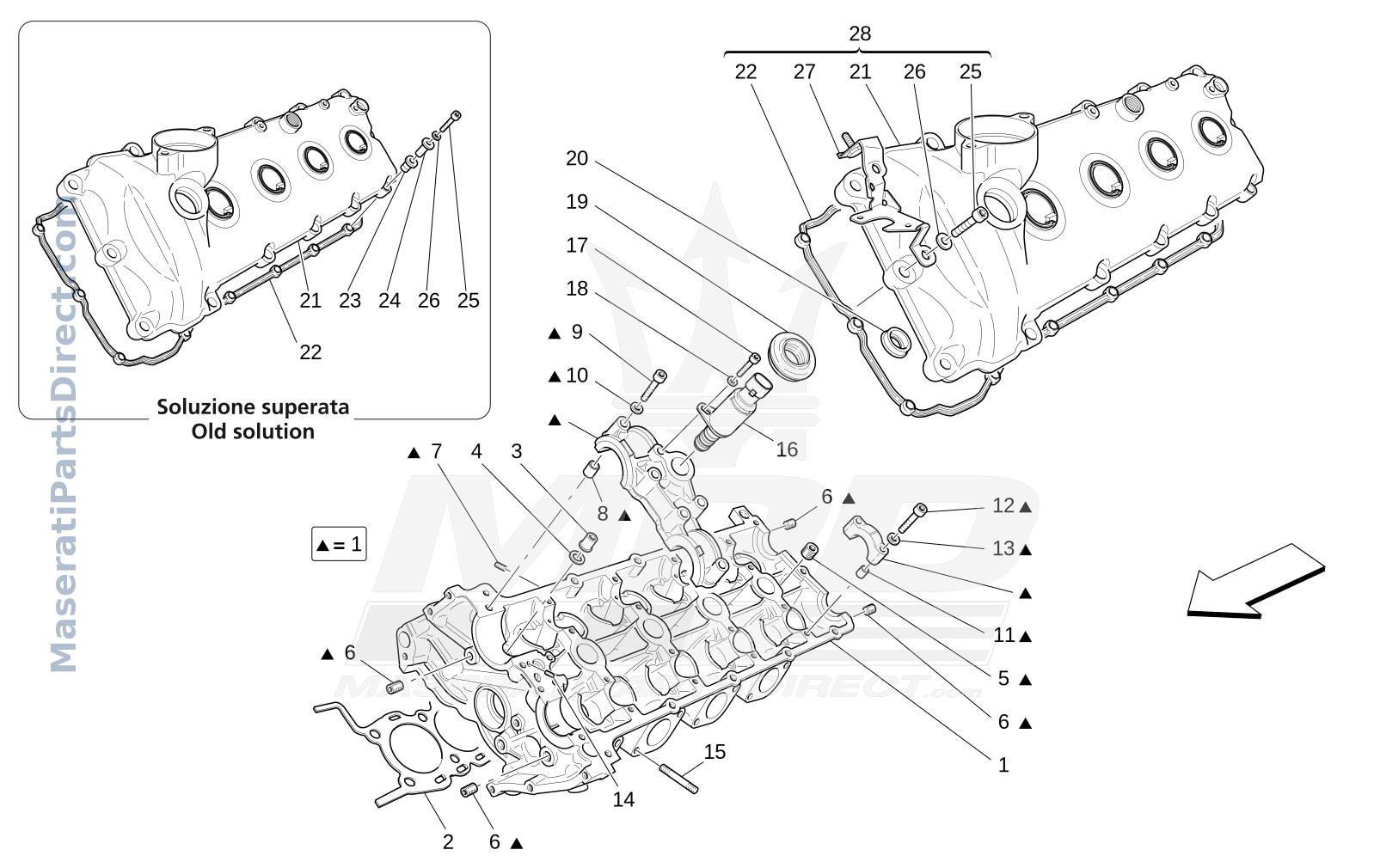

01.21 - 1 - LH CYLINDER HEAD

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	261273	LH HEAD ASSEMBLY	$2,976.50 Order
1	271222	LH HEAD ASSEMBLY	$3,353.62 Order
2	266263	LH HEAD GASKET	$297.82 Order
3	183524 Replaced by: #303886.0	NUTM11	$0.00 Order
3	303886	NUT	$0.00 Order
4	151117	WASHERD.11.25-22X2.5	$0.00 Order
5	14325140	THREADED PLUG	$9.17 Order
6	14326001	THREADED PLUG	$9.20 Order
7	199760	THREADED PLUG	$6.21 Order
8	102725	CENTERING DOWEL	$10.40 Order
9	14305924	SCREWM6X45	$11.85 Order
10	11197774	WASHERD.6.4-12X2.4	$9.20 Order
11	102725	CENTERING DOWEL	$10.40 Order
12	14305621	SCREW	$8.64 Order
13	11197774	WASHERD.6.4-12X2.4	$9.20 Order
14	226414	DOWEL	$23.43 Order
15	13543424	STUD	$8.64 Order
16	269226 Replaced by: #296016.0	OIL PRESSURE CHECK VALVE	$0.00 Order
16	296016	OIL PRESSURE CHECK VALVE	$376.70 Order
16	296016	OIL PRESSURE CHECK VALVE	$376.70 Order
17	14304224	SCREW	$8.64 Order
18	11181574	WASHERD.5.3-11X0.9	$8.64 Order
19	228962	GASKET	$31.47 In Stock
20	223982	GASKET	$19.39 Order
21	272788	LH CYLINDER HEAD COVER	$813.07 Order
22	211220	LH HEAD COVER GASKET	$137.54 Order
22	264987	LH HEAD COVER GASKET	$183.46 In Stock
23	203102	RUBBER BUSHING	$14.74 Order
24	228598	BUSHING	$29.46 $25.04 In Stock
25	213129	SCREW	$10.22 Order
26	11197774	WASHERD.6.4-12X2.4	$9.20 Order
27	265568	LH AIR VALVE FIXING BRACKET	$3,362.17 Order
28	980145470	LH HEAD COVER KIT	$2,970.70 Order
