| Ref | Part Number | Description | Price | Qty | |
|---|---|---|---|---|---|
| 1 | 296547 | EXPANSION TANK ASSEMBLY |
$128.12
In Stock
|
|
|
| 2 | 980145477 | PLUG FOR CPL TANK |
$55.63
Order
|
|
|
| 4 | 230562 | VENT PIPE FROM EXPANSION TANK TO RADIATOR |
$58.45
Order
|
|
|
| 5 | 237546 | VENT PIPE FROM EXPANSION TANK TO BUNDY |
$68.94
Order
|
|
|
| 6 | 13125470 | COLLAR |
$9.20
Order
|
|
|
| 7 | 13000190 | SCREW COLLAR |
$8.28
Order
|
|
|
| 8 | 13000390 | SCREW COLLAR |
$9.17
Order
|
|
|
| 9 | 60607472 | SCREW |
$26.56
Order
|
|
|
| 10 | 12601274 | WASHERD. 6,40-12X 0,5 |
$8.28
Order
|
|
|
| 11 | 82404496 | CUP |
$13.58
Order
|
|
|
| 12 | 228422 | BRACKET |
$41.99
Order
|
|
|
| 13 | 14065921 | NUT |
$11.52
Order
|
|
|
| 14 | 12646634 | WASHER |
$11.40
Order
|
|
|
| 15 | 228047 | CABLE BUSHING |
$19.66
Order
|
|
|
| 16 | 227136 | PIPE FROM NOURICE TO WATER PUMP |
$140.45
Order
|
|
|
| 17 | 13000590 | SCREW COLLAR |
$14.28
Order
|
|
|
| 18 | 13000190 | SCREW COLLAR |
$8.28
Order
|
|
|
| 19 | 228438 | THREADED UNION |
$21.21
Order
|
|
|
| 20 | 237593 | DELIVERY PIPE FROM ENGINE TO RADIATOR |
$153.69
Order
|
|
|
| 21 | 237594 | RETURN PIPE FROM RADIATOR TO ENGINE |
$177.72
Order
|
|
|
| 22 | 13000790 | SCREW COLLAR |
$10.14
Order
|
|
|
| 23 | 69418200 | RUBBER HOSE TO WATER PUMP |
$152.92
Order
|
|
|
| 24 | 69417100 | RIGID PIPE |
$206.51
Order
|
|
|
| 25 | 230890 | THERMOSTAT COVER WITH PRESSURE GAUGE |
$341.03
Order
|
|
|
| 26 | 137873 | GASKET |
$23.66
In Stock
|
|
|
| 27 | 14433124 | SCREW |
$9.20
Order
|
|
|
| 28 | 13097090 | COLLAR |
$12.41
Order
|
|
|
| 29 | 180137 | WATER TEMPERATURE SENSOR |
$97.29
Order
|
|
|
| 30 |
224788
Replaced by: #240324.0
|
WATER PIPE FROM R.H. CYLINDER HEAD |
$0.00
Order
|
|
|
| 30 | 240324 | WATER PIPE FROM R.H. CYLINDER HEAD |
$860.51
Order
|
|
|
| 31 | 240323 | WATER PIPE FROM L.H. CYLINDER HEAD |
$818.95
Order
|
|
|
| 32 | 227489 | SLEEVE |
$41.16
Order
|
|
|
| 33 | 178053 | CLAMP |
$10.80
Order
|
|
|
| 34 | 203787 | FILLER NECK |
$73.01
Order
|
|
|
| 35 | 10259960 | GASKET |
$7.65
Order
|
|
|
| 36 | 260465 | WATER PIPE FROM CYLINDER HEAD |
$1,057.50
Order
|
|
|
| 37 | 280597 | THREADED PLUG |
$49.49
Order
|
|
|
| 38 | 10259960 | GASKET |
$7.65
Order
|
|
|
| 39 | 203787 | FILLER NECK |
$73.01
Order
|
|
|
| 40 | 240318 | WATER PIPE FROM CYLINDER HEAD |
$924.62
Order
|
|

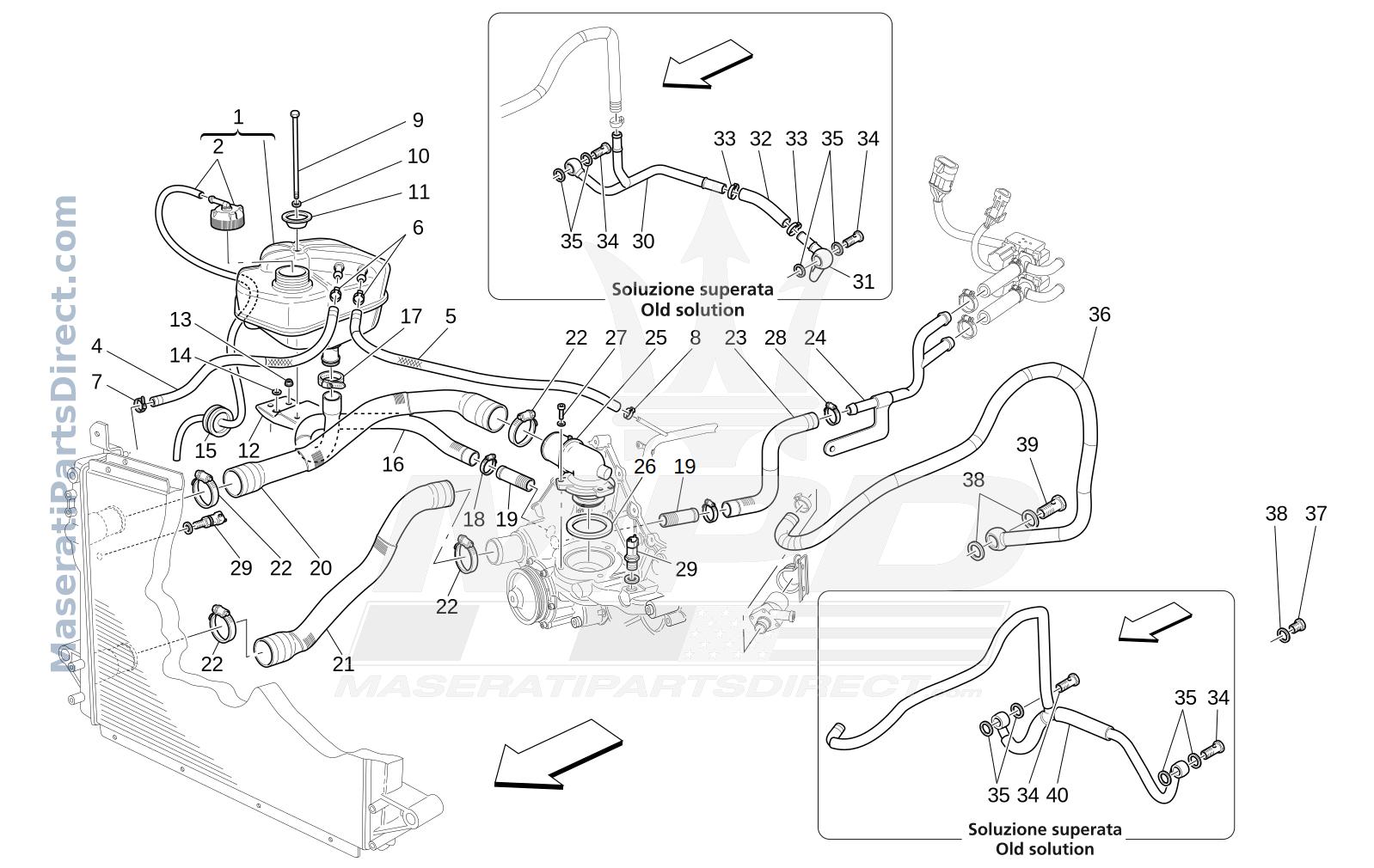

| SVG Path | GranC2017-01-71-1-cooling-system-nourice-and-lines-MC_B.svg |
|---|---|
| SVG Width | 799.000000 |
| SVG Height | 505.000000 |
