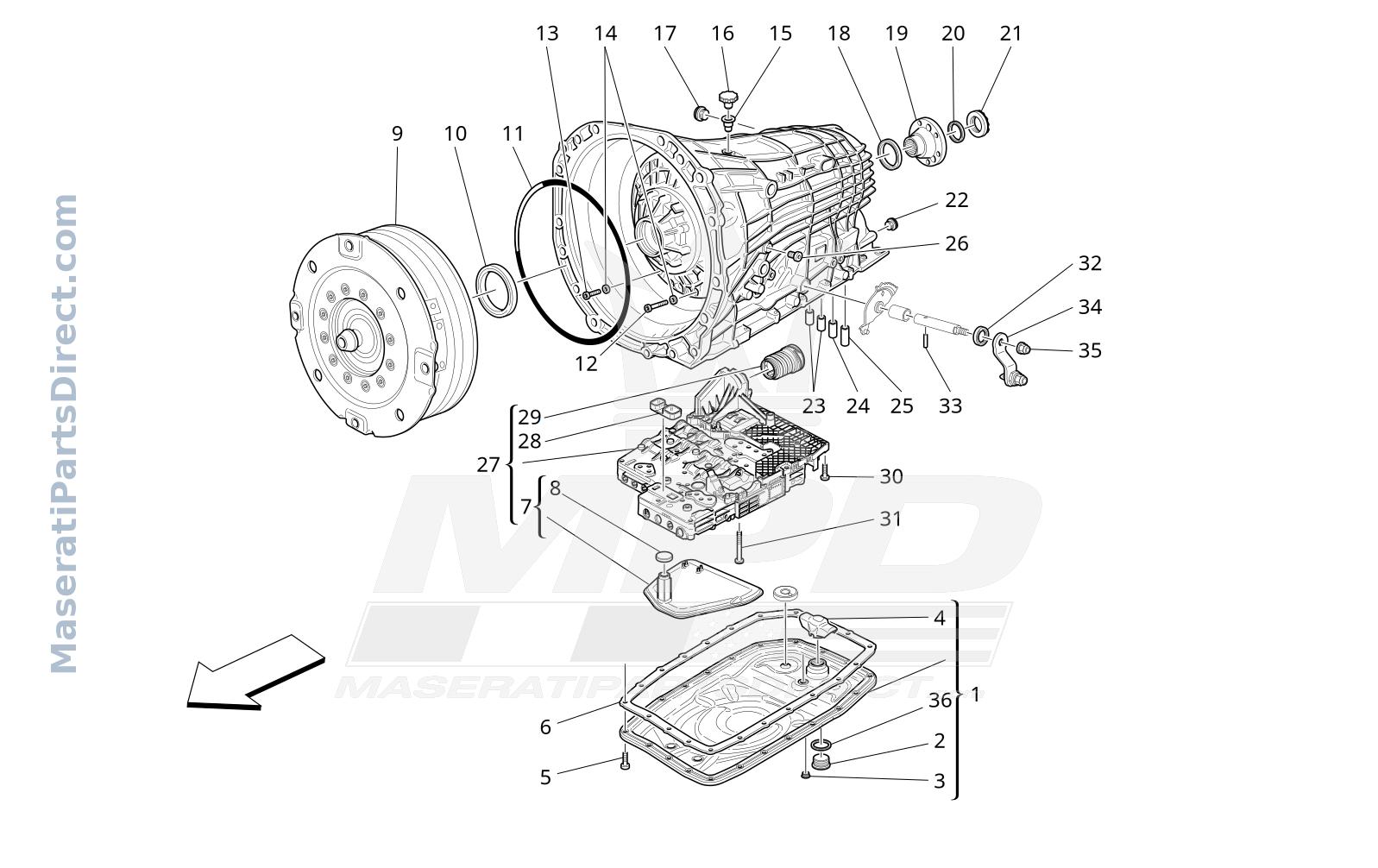

03.10 - 2 - GEARBOX HOUSINGS

Select a part from the list to view details

Select a part from the list to view dimensions

Select a part from the list to view fitment information

Parts List

Ref	Part Number	Description	Price
1	223709	OIL SUMP ASSEMBLY	$985.33 Order
2	227352	PLUG	$139.92 Order
3	227357	PLUG	$55.63 Order
4	228051	PLUG	$21.93 Order
5	227353	SCREW	$19.39 Order
6	227350	GASKET	$185.83 Order
7	228048	COMPLETE OIL FILTER	$208.28 Order
8	227351	O.R. GASKET	$32.56 Order
9	227379	CONVERTER	$4,715.76 Order
10	227374	SEAL RING	$53.13 Order
11	227376	O.R. GASKET	$271.01 Order
12	227375	SCREW	$26.13 Order
13	228052	SCREW	$21.72 Order
14	227377	WASHER	$23.43 Order
15	227369	DELIVERY PIPE	$31.75 Order
16	227370	PROTECTIVE SHEATH	$21.72 Order
17	227358	PLUG	$58.13 Order
18	227360	SEAL RING	$60.63 Order
19	223712	OUTPUT FLANGE	$664.71 Order
20	227361	SEAL RING	$48.03 Order
21	227362	NUT	$26.56 Order
22	227363	PLUG	$28.36 Order
23	227371	SEALING SLEEVE	$25.38 Order
24	227372	SEALING SLEEVE	$31.06 Order
25	227373	SEALING SLEEVE	$38.42 Order
26	227357	PLUG	$55.63 Order
27	262774	MECHATRONIC ASSEMBLY	$5,882.20 Order
28	227365	ADAPTER	$33.88 Order
29	227366	SLIDING GUIDE	$137.04 Order
30	227368	SCREW	$21.93 Order
31	227367	SCREW	$23.66 Order
32	227355	SEAL RING	$48.03 Order
33	227356	FLEXIBLE PIN	$23.43 Order
34	222378	GEARBOX CONTROL LEVER	$436.44 Order
35	161473	NUT	$84.51 Order
36	247479	GASKET	$21.03 Order
